SCHULZ 7.5 HP Stationary Air Compressor – 80 Gallon Vertical 1 Ph For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

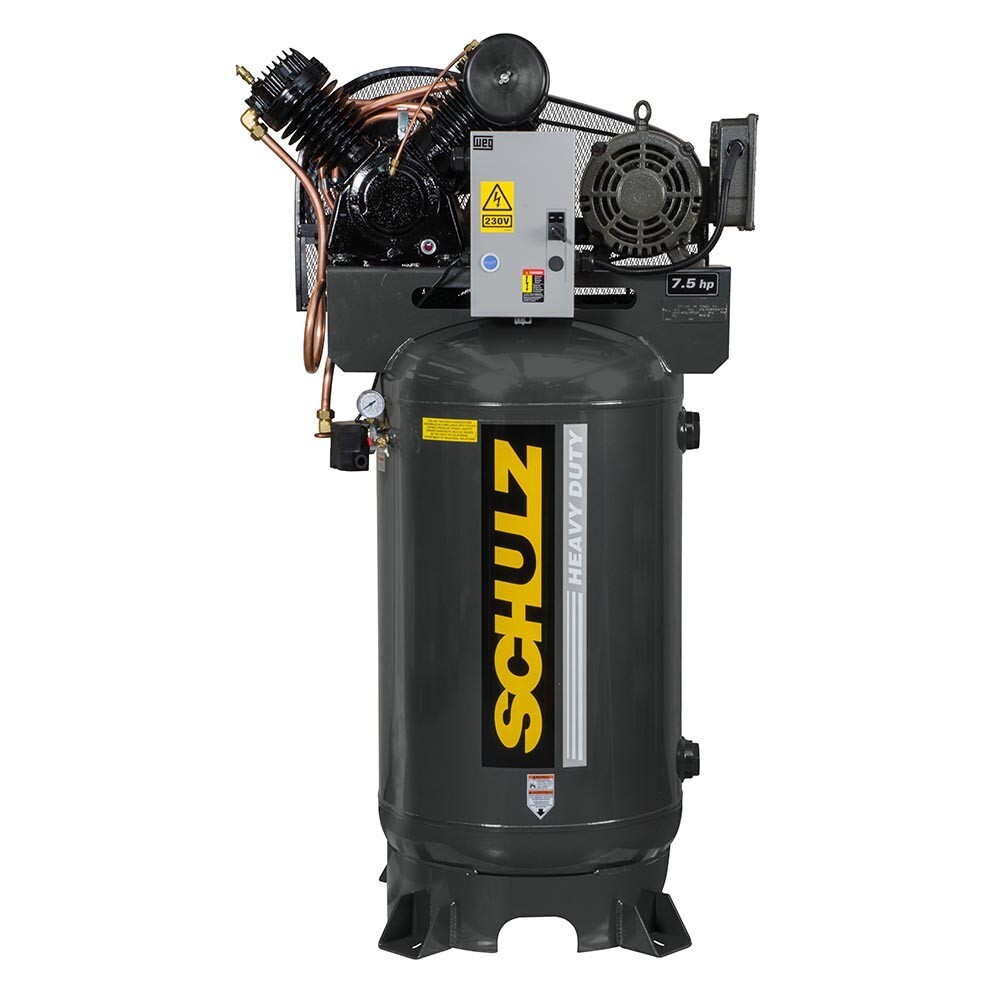

SCHULZ 7.5 HP Stationary Air Compressor – 80 Gallon Vertical 1 Ph:
$3951.22

Model 7580VV30X‑1 | Part # 932.9341‑0

TheSCHULZ 7.5 HP Stationary Air Compressoris built forreliable commercial‑duty performance, combining aWEG single‑phase electric motorwith aV‑Series solid cast iron two‑stage pump. Designed for shops that require consistent airflow with efficient heat management, this compressor delivers long service life and dependable operation.

TheV‑Series cast iron pumpruns cooler and lasts longer due to increased spacing between cylinders.Deep cylinder finsenhance heat dissipation, whileoversized main bearings,Swedish steel valves, andCNC‑machined componentsensure smooth, efficient, and durable performance. An integratedaftercoolerreduces discharge air temperature before air enters the tank, helping limit moisture.

This unit featuresnotched beltsfor improved belt life, afully enclosed belt guardfor operator safety, andpowder‑coated componentsto resist rust and corrosion. The compressor is mounted on an80‑gallon ASME‑certified vertical tankand includes amagnetic starterfor motor protection.

Key Features & Benefits

7.5 HP stationary air compressor
WEG single‑phase electric motor
V‑Series solid cast iron two‑stage pump
Cooler operation with extended pump life
Integratedaftercoolerfor cooler air delivery
Deep cylinder fins for improved heat dissipation
Oversized main bearings for durability
Swedish steel valves for efficient airflow
CNC‑machined components for precision fit
Notched belts standard for longer belt life
Fully enclosed belt guard for operator safety
Powder‑coated components resist rust and corrosion
80‑gallon vertical ASME‑certified air tank
Magnetic starter included

Motor Specifications

Power Type:Electric
Horsepower:7.5 HP
Voltage:230 VAC
Phase:Single Phase
Motor Brand:WEG
Magnetic Starter:Yes
Recommended Breaker:Consult certified electrician

⚠️Always consult a licensed electrician for proper installation and wiring.

Pump Specifications

Airflow:30 CFM
CFM Rating:@ 175 PSI
Maximum Pressure:175 PSI
Pump Type:Two‑Stage
Pump Material:Solid cast iron
Pump Series:V‑Series
Oil Type:Oil‑lubricated
Oil System:Splash lubricated
Oil Sight Glass:Yes
Pump Drive:Belt drive
Aftercooler:Yes
Low Oil Shut‑Off:No

Tank Specifications

Tank Size:80 Gallons
Tank Orientation:Vertical
Tank Outlet:1/2 inch
Electronic Drain Valve:No
Tank Certification:ASME

Physical Specifications

Weight:728 lb
Dimensions:48\" L × 42\" W × 81\" H

Additional Information

Product Category:Stationary Air Compressor
Power Type:Electric
Certification:ASME
Model Number:7580VV30X‑1
Part class=\"list-inside list-disc whitespace-normal [li_&]:pl-6\" data-streamdown=\"unordered-list\" style=\"--tw-border-spacing-x: 0; --tw-border-spacing-y: 0; --tw-translate-x: 0; --tw-translate-y: 0; --tw-rotate: 0; --tw-skew-x: 0; --tw-skew-y: 0; --tw-scale-x: 1; --tw-scale-y: 1; --tw-pan-x: ; --tw-pan-y: ; --tw-pinch-zoom: ; --tw-scroll-snap-strictness: proximity; --tw-gradient-from-position: ; --tw-gradient-via-position: ; --tw-gradient-to-position: ; --tw-ordinal: ; --tw-slashed-zero: ; --tw-numeric-figure: ; --tw-numeric-spacing: ; --tw-numeric-fraction: ; --tw-ring-inset: ; --tw-ring-offset-width: 0px; --tw-ring-offset-color: #fff; --tw-ring-color: rgb(59 130 246 / .5); --tw-ring-offset-shadow: 0 0 #0000; --tw-ring-shadow: 0 0 #0000; --tw-shadow: 0 0 #0000; --tw-shadow-colored: 0 0 #0000; --tw-blur: ; --tw-brightness: ; --tw-contrast: ; --tw-grayscale: ; --tw-hue-rotate: ; --tw-invert: ; --tw-saturate: ; --tw-sepia: ; --tw-drop-shadow: ; --tw-backdrop-blur: ; --tw-backdrop-brightness: ; --tw-backdrop-contrast: ; --tw-backdrop-grayscale: ; --tw-backdrop-hue-rotate: ; --tw-backdrop-invert: ; --tw-backdrop-opacity: ; --tw-backdrop-saturate: ; --tw-backdrop-sepia: ; --tw-contain-size: ; --tw-contain-layout: ; --tw-contain-paint: ; --tw-contain-style: ; box-sizing: border-box; border-width: 0px; border-style: solid; border-color: rgb(229, 231, 235); scrollbar-color: initial; scrollbar-width: initial; outline-color: rgba(3, 7, 18, 0.5); list-style-position: inside; list-style-image: initial; margin: 16px 0px 0px; padding: 0px 0px 0px 1.5em; --tw-space-y-reverse: 0; color: rgb(3, 7, 18); font-family: Inter, "system-ui"; font-size: 12px;\">
1‑Year Unit Warranty
2‑Year Pump Warranty
