SA818S-CE UHF or VHF 1W Analog RF Radio Transceiver Module w/ RDA1846S IC

The NiceRF SA818S is a cost-effective integrated professional walkie-talkie module using the RDA1846S chip with a built-in high-speed microcontroller, high-performance RF transceiver chip and RF power amplifier. It provides a standard serial port to communicate with the module so that the relevant parameters of the module and the transceiver can be set quickly and easily.

Users only need to connect an audio amplifier, microphone, and speaker to this module to work as a compact 1W RF transceiver or walkie-talkie covering the VHF or UHF bands. With the module's simplified interface and ultra-small size, it can also be easily and quickly embedded in various handheld and mobile devices to provide a standalone UHF or VHF transceiver.

The SA818S strictly uses lead-free technology for production and testing, meets RoHS and Reach standards, and is CE-RED certified. The SA818S walkie-talkie module adds an LNA circuit based on the SA818, and the sensitivity is increased by 4dBm. For the entire frequency range of 400-470MHz, the power output fluctuation is less than 1dB, and the low power can achieve an error of 27dBm+/-1dBm from 400-470MHz. The software and hardware interfaces are the same as before and are compatible with each other.

There are two versions of the SA818S covering the VHF and UHF frequency bands. The only difference is the frequency range. All other parameters are the same, including module size, interface, software protocol, etc. The two modules’ frequency ranges are:

  • SA818S-CE UHF: UHF band 400 - 480MHz
  • SA818-CE VHF: VHF band 134 - 174MHz
Features of the SA818S RF Transceiver Walkie Talkie Module
  • UHF band frequency: 400~480 MHz
  • VHF band frequency: 134~174 MHz
  • Tx and Rx frequency, Tx and Rx CTCSS, CDCSS can be set alone.
  • Band width: 12.5KHz / 25 KHz
  • Output power up to 1W
  • Sensitivity：-124 dBm
  • Highly-integrated, Small Size
  • 38 CTCSS
  • 166 CDCSS
  • 8 level squelch
  • 8 adjustable volume
  • High/low power option: 500mW/1W
  • Wide working voltage range: 3-5.5 V
  • 1 ppm KDS TCXO crystal, Stable performance
SA818S Applications
  • Small walkie-talkies (HTs)
  • VHF/UHF Radio (Allstar) Node Transceivers
  • Miniature VHF/UHF Repeaters
  • Invisible intercom systems
  • audio surveillance systems
  • Outdoor sport products
  • Building security systems
SA818S SpecificationsSA818S Internal Block DiagramSA818S Mechanical Dimensions

Package Includes:

1x (1 Piece) SA818S-CE UHF or VHF 1W Analog RF Radio Transceiver Module, Band (UHF or VHF) chosen at checkout
Link to online technical and programming instructions

Get it faster! Stocks and ships from our US Colorado office for quick delivery.

We provide FREE USPS Ground Advantage Shipping with Tracking - Not Economy Shipping


Featured Products

MEGA2560 PRO MINI ATmega2560-16AU CH340G Development Board

$16.49

PJRC Teensy 4.1 iMXRT1062 Microcontroller Development Board w/ SD Card, Ethernet

$34.40

Digispark Kickstarter ATTINY85 Micro USB Development Board

$7.89

Digispark Kickstarter Attiny85 USB General Micro Development Board

$7.89

PJRC Teensy 4.0 iMXRT1062 Microcontroller Development Board Unlocked & Lockable

$27.40

Relay Shield for WeMos D1 Mini ESP8266 Development Board

$5.49

Audio Adapter Shield Rev D2 SGTL5000 for Teensy 4.0 & 4.1 Microcontrollers

$17.25

PJRC Teensy 4.0 iMXRT1062 Microcontroller Development Board US

$27.80 Add suggested items to your listings - Check it out on 3Dsellers.com

· All Rights Reserved to My Store ·

listing template by 3Dsellers.com - Try for Free!
Buy Now

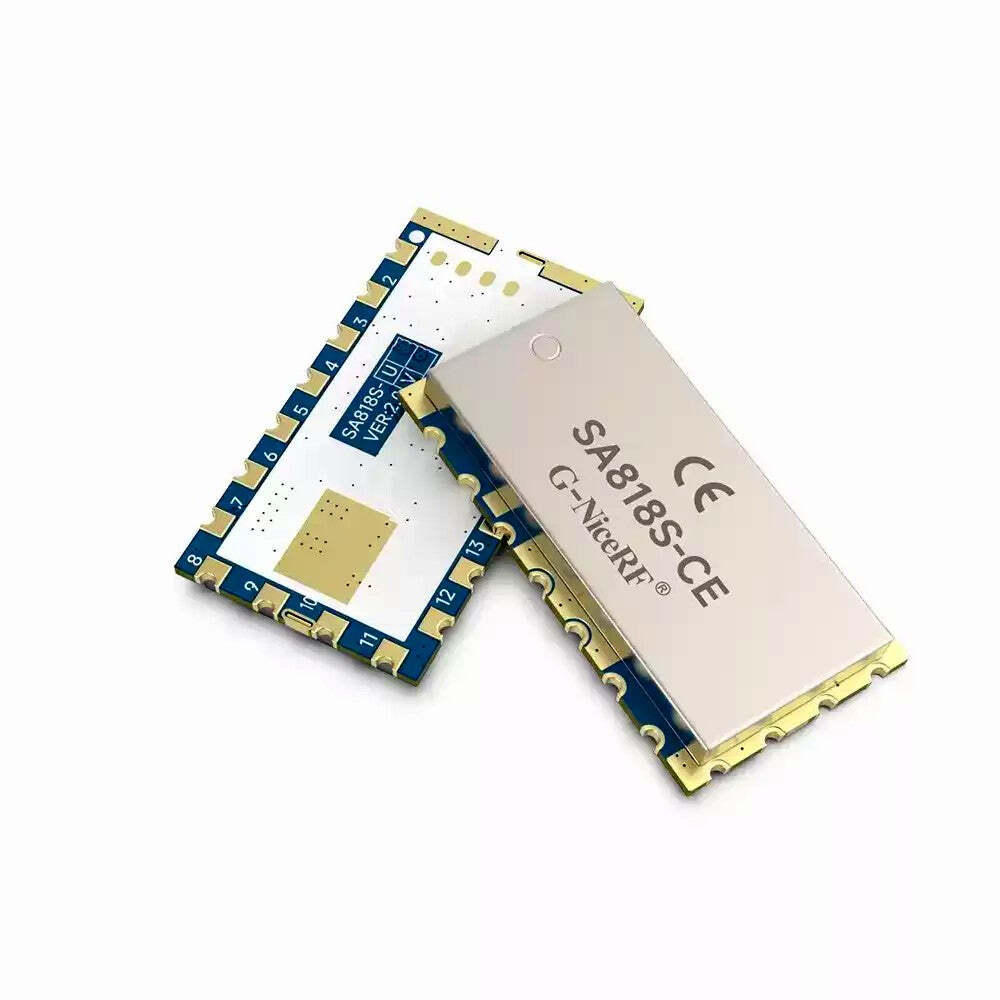

SA818S UHF or VHF 1W Analog RF Radio Transceiver Module w/ RDA1846S IC US Seller picture
