Rigol DL3021A Programmable DC Electronic Load (Single Channel, 150V/40A/30kHz For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

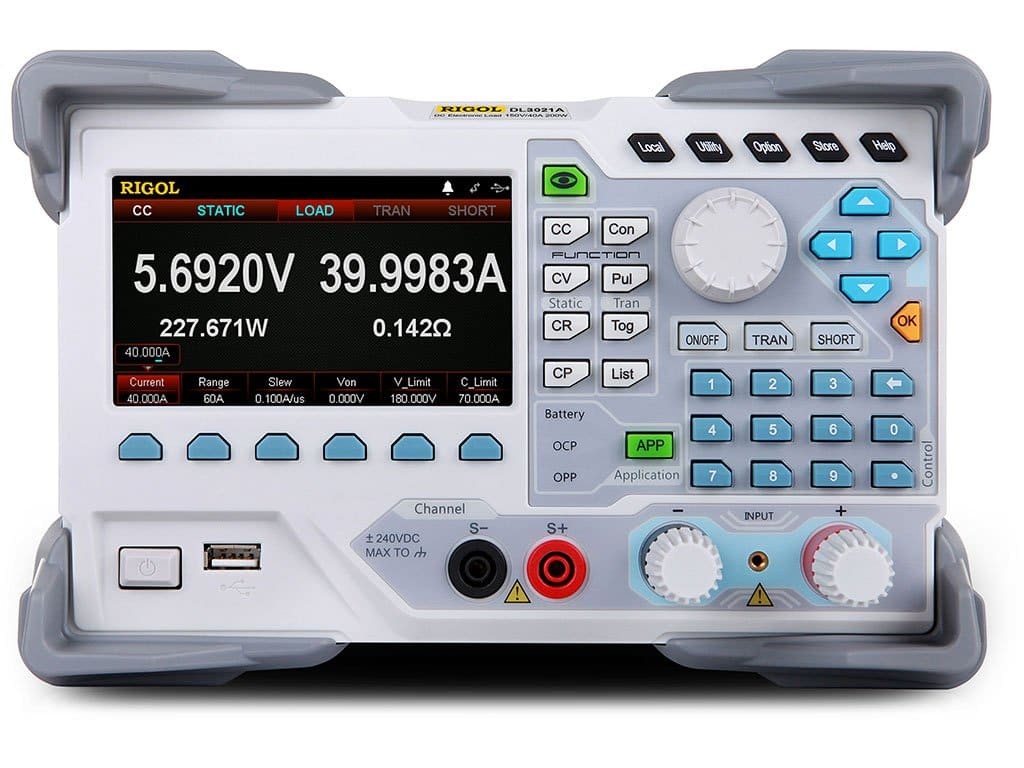

Rigol DL3021A Programmable DC Electronic Load (Single Channel, 150V/40A/30kHz:
$699.00

Rigol DL3021A - Programmable DC Electronic Load (Single Channel, 150V/40A/30kHz 200W) with High Resolution 30 kHz dynamic mode 5 A/μs current rising speed Powerful list operation function and waveform display function Easy-to-use function of file storage and recalling Sound OVP/OCP/OPP/OTP/Reverse Voltage Protection Programmable DC Electronic Load DL3000 Series DL3000 is a cost-effective programmable DC electronic load with high performance. With a user-friendly interface and superb performance specifications, DL3000 series provides various interfaces for remote communication to meet your diversified test requirements. It can be widely used in various industries, such as automotive electronics, aerospace, and fuel cells. Design Features 30kHz dynamic mode Transient test function enables the load to periodically switch between two set levels (Level A and Level B). It can be used to test the transient characteristics of the DUT. The highest frequency can be set to 30 kHz. Besides, in the guide interface, you can configure parameters in the parameter configuration list and view the configuration diagram at the left of the configuration list in the real-time manner. Powerful list operation function You can generate complex sequences by editing the setting value for each step, the dwell time, and slew rate (the slew rate can only be edited in CC mode) to meet the complex test demands. 5 A/μs current rising speed Current rising speed is defined as the speed of transition from one setting to another. You can set the actual transition time from one setting to another by changing the current rising speed. Adjustable current rising speed: 0.001 A/μs to 5 A/μs. Powerful waveform display function The electronic load provides the waveform display function and supports the following operations for the waveform, such as pausing the waveform, enlarging and narrowing the waveform, and capturing the waveform.Features:

Single output, 150 V/40 A/30 kHz, total power up to 200 W
Dynamic mode: up to 30 kHz
Adjustable current rising speed: 0.001 A/μs to 5 A/μs
Min. readback resolution: 0.1 mV,0.1 mA
4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
voltage protection
4 static modes: CC, CV, CR, CP
3 dynamic modes: continuous, pulsed, toggled
List function supports editing as many as 512 steps
Battery test function, OCP test, OPP test, factory test function, etc.
Short-circuit test function
Power-off memory function
Built-in RS232/USB/LAN communication interface
USB-GPIB module (optional)
Typical Applications General-purpose testing in the R&D lab
DC power supply industry, such as regulated power supply, constant current power supply, switching mode power supply (SMPS), module power supply, power adapter, etc.
Battery industry, such as various batteries and cell batteries
Charger industry, such as battery charger and cell phone charger
Power electronic device industry, such as MOSFET, IGBT, capacitor, and ballast resistor
Teaching experiment
