Rheem OEM Furnace HVAC Integrated Control Board, 62-104061-03 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

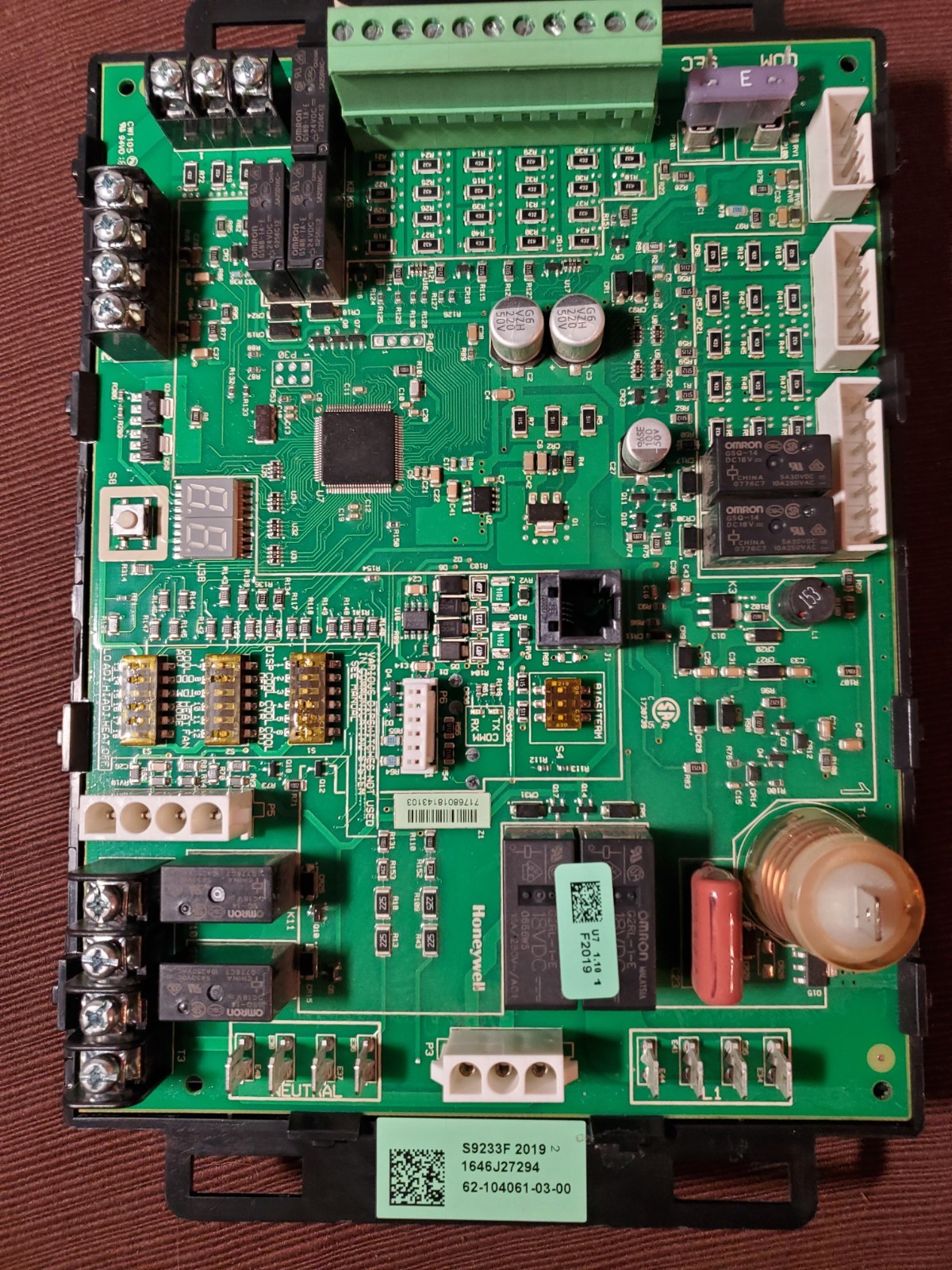

Rheem OEM Furnace HVAC Integrated Control Board, 62-104061-03:
$60.00

• 62-104061-03-00 (Serial/Batch info: S1646J27294, Model S9233F 2019)
• Common Compatibility: Used in Rheem and Ruud modulating/variable-speed condensing gas furnaces (such as R96VA and U96VA series).
• Function: Manages gas valve operation, spark ignition, blower motor speeds, safety interlocks, and displays diagnostic fault codes on the dual-digit LED screen.
• Brand New🔥👍
•FREE EXPRESS SHIPPING!🚚

---

---

---

Rheem OEM Furnace HVAC Integrated Control Board, 62-104061-05

$199.99

---

Rheem OEM Furnace HVAC Integrated Control Board, 62-104061-03

$60.00

---

NEW Rheem/Ruud OEM 47-102883-02 RTU-C Rooftop Unit Control Board 1186-100

$139.99

---
