Rexnord Falk 10011263 1025G20 Exposed Bolt Sleeve:
$400.00

Rexnord Falk 10011263 1025G20 Exposed Bolt Sleeve.

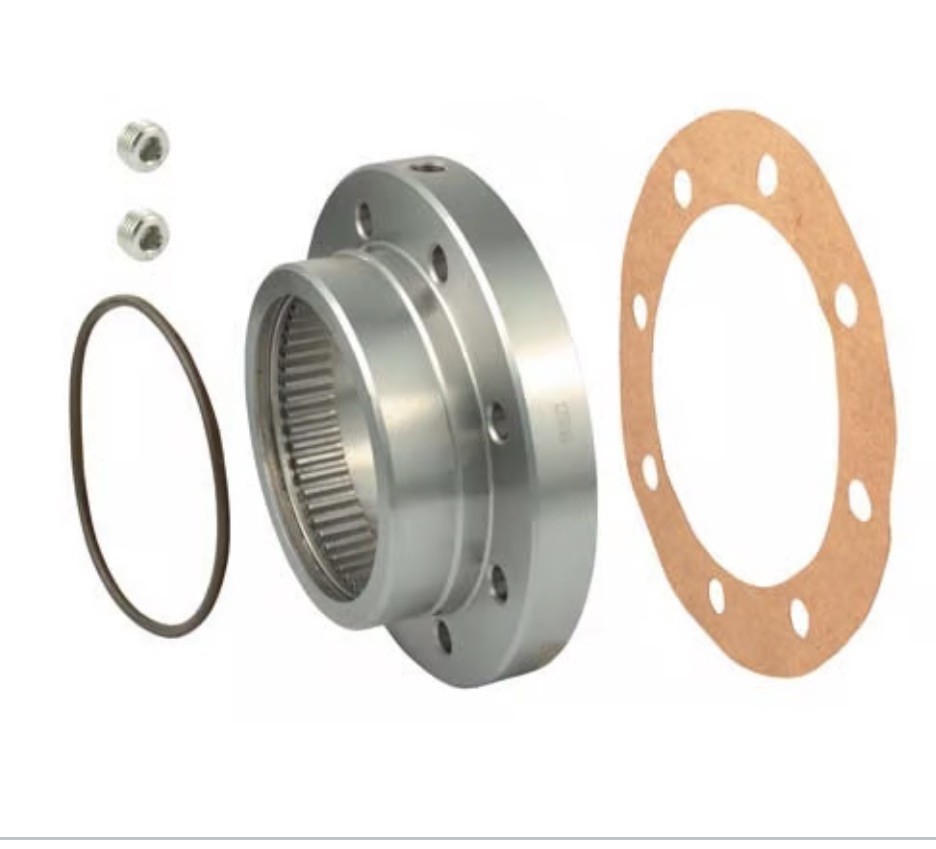

Brand new, never used. Comes with complete kit: Coupling, Seal, Gasket, and BoltsReduced head cap screws and non-turning locknut allow one-wrench tightening; Three year warranty on Falk Lifelign Couplings when lubricated with Falk LTG Grease and used with other genuine Falk Lifelign components; Exposed Bolt Sleeve set used for 1045G size Gear coupling; Lubrication plug locations are ideal for effective application of grease; AGMA bolt pattern makes Falk Lifelign couplings easily interchangeable with any standard gear coupling on existing applicationsDimensions:Coupling Size Code - 1025G
Half Sleeve Length-2.82 inOutside Diameter -8.3800 in
Sleeve Outside Diameter -8.38 in
Sleeve Overall Length -12.0000 inWeight -4.626 kg

Details:

Bolt Type -Exposed

Country of Origin - CN

Coupling Style - Exposed Bolt

Coupling Type - Gear Coupling

Flex Type - Full Flex

Max Rpm - 5000 rpm

Operating Temperature Range- (-30) to +200 °F

Product Type - Gear Coupling Sleeves

Series - G Series Exposed Bolts Sleeves

Sleeve Material - Steel

Sleeve Type - Flanged
