On eBay Now...Red Lion Controls G310S210 Touchscreen 10.4 inches Color HMI For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

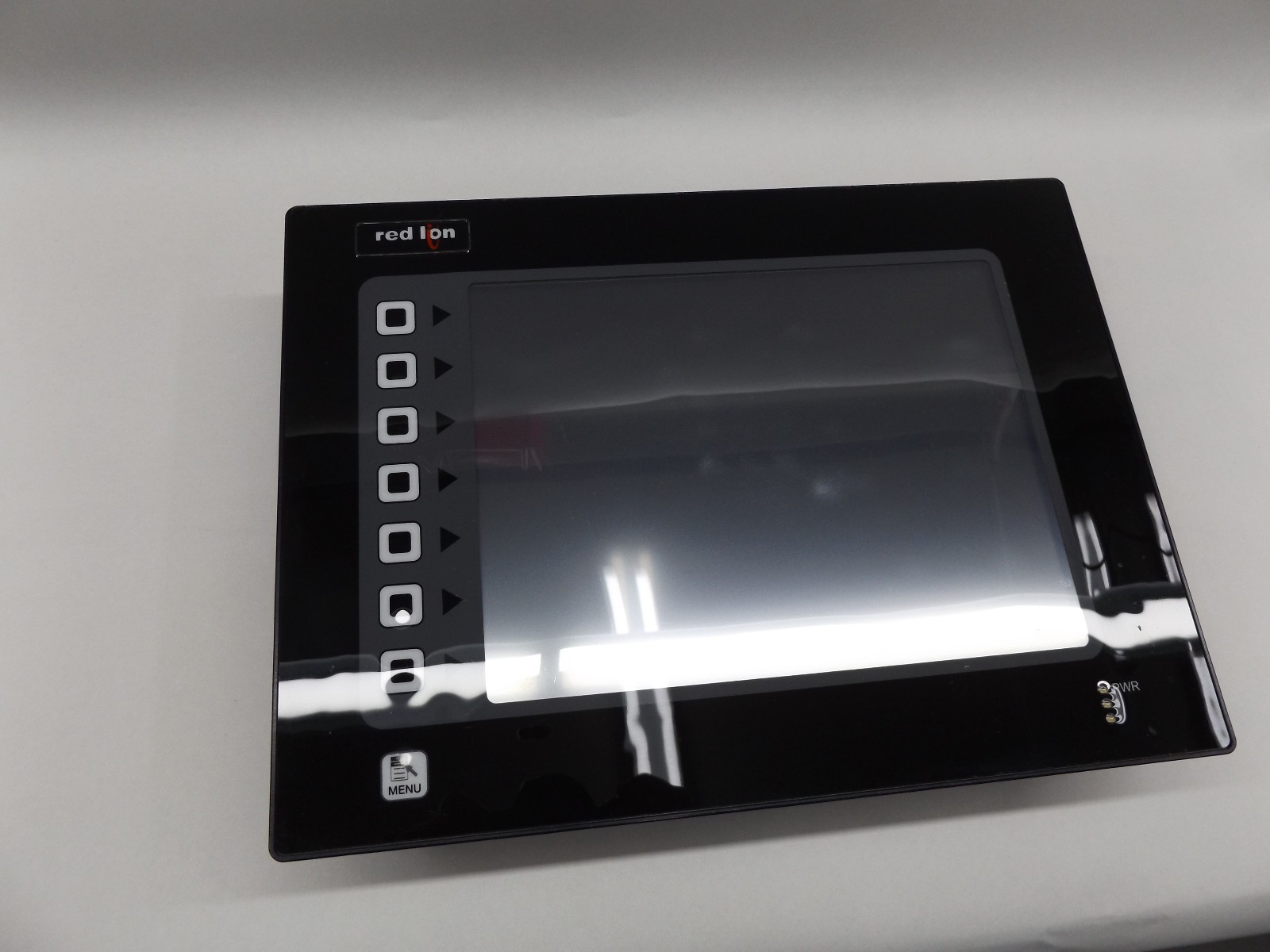

Red Lion Controls G310S210 Touchscreen 10.4 inches Color HMI:
$999.00
Red Lion Controls G310S210 Touchscreen 10.4 inches Color HMIFURTHER REDUCED
The Red Lion Controls G310S210 is a 10.4-inch indoor/outdoor color graphic Human Machine Interface (HMI) featuring a 640x480 pixel VGA touchscreen, an 8-button front keypad, 32 MB of flash memory, and 24VDC operating power.
Screen Size: 10.4 inches diagonalDisplay Type: Color TFT LCD with LED backlighting and sunlight-readable outdoor high-brightness gloss finish (1000 cd/m²)Resolution: 640 x 480 pixels (VGA)Input Type: Resistive analog touchscreen and 8-button front panel keypadDimensions: 12.83\" W x 9.50\" H x 2.45\" D (approx. 326 x 241 x 62 mm)Enclosure Rating: NEMA 4X / IP66 front plate dust-tight and water-resistant-Supply Voltage: 24 VDC (±20%)Power Consumption: Typical 16 W, Maximum 26 WOperating Temperature: 0 °C to 50 °CMemory: 32 MB onboard non-volatile Flash memory-Ethernet Ports: Dual 10/100 Base-TX (RJ45)Serial Ports: 2x RS-232 (RJ12) and 1x RS-422/485 (RJ45)USB & Storage: USB Host port plus USB Type B device port (USB 2.0); CompactFlash socket for data logging and card storage
Used
Red Lion Controls G310S210 Touchscreen 10.4 inches Color HMI
$999.00
$320.00
Red Lion Controls LNXC2000 PLC Counter Module, Model LNXC2000, MPN LNXC2000 B4
$499.99
