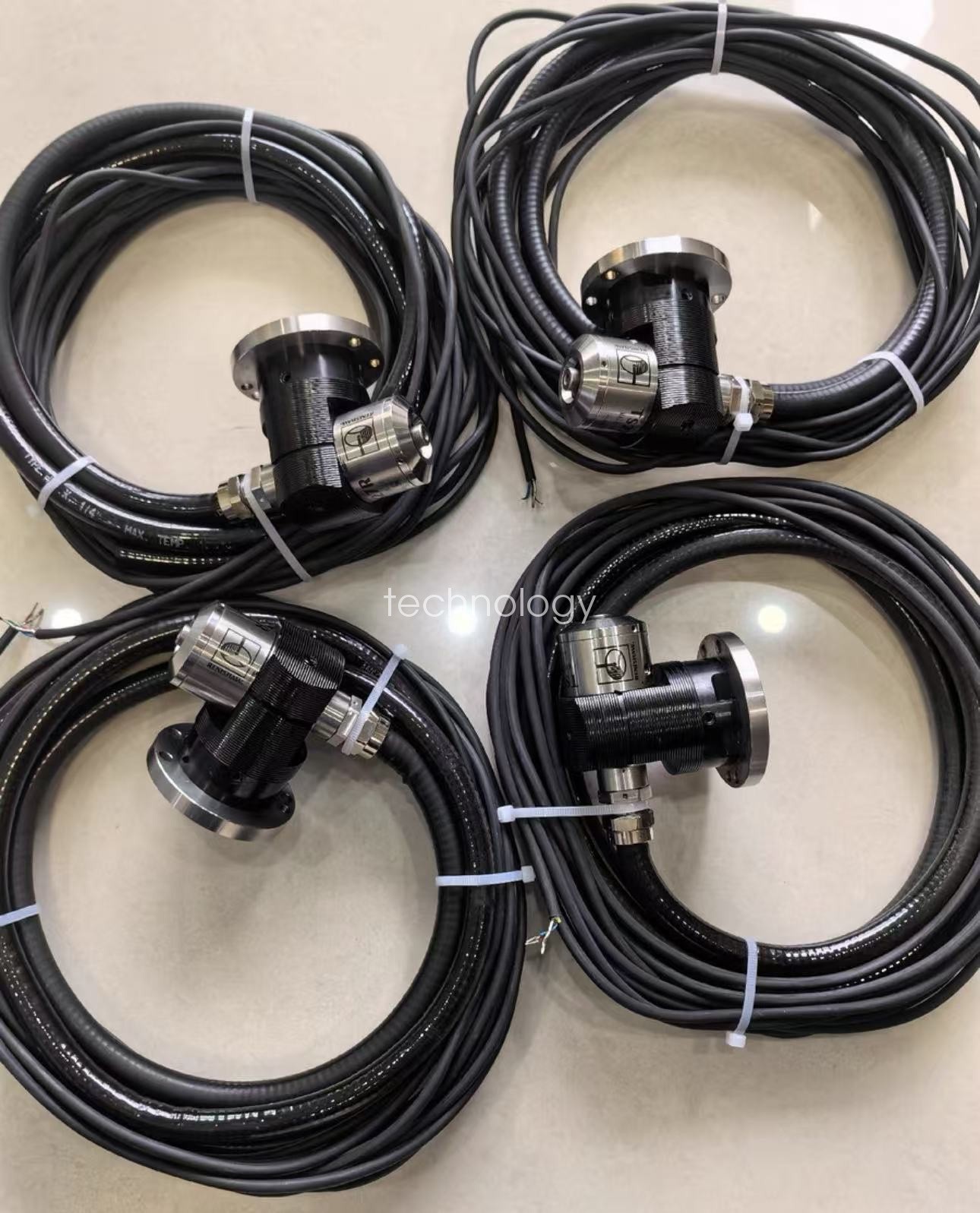

RENISHAW TS27R Tool Setting Probe NEW old stock / open box Express Shipping:
$285.00

Renishaw TS27R CNC Tool Setting Probe Complete English IntroductionRenishaw TS27RRenishaw TS27R Hard-Wired 3D Touch Tool Setter CNC Machining Center Tool Length Broken Tool Detector Fast ShippingChar count:772. Long Search TitleGenuine Renishaw TS27R Touch Trigger Tool Setting Probe, Hard-Wired Anti-Interference Transmission, 1μm Repeatability, for Vertical/Horizontal/Gantry CNC Machining Center, Tool Length Diameter Measurement & Broken Tool Detection3. Core Selling Bullet Points

3D touch-trigger hard-wired tool setter core designWired signal transmission eliminates infrared signal interference caused by coolant, chips and workshop light, stable continuous operation in harsh machining environment.
Ultra-high precision repeatability: 1.00 μm (2σ) unidirectional repeatability, meets high tolerance mold & precision parts machining standards.
Multi-directional measurement support: ±X, ±Y, +Z three-axis sensing, automatically detect tool length offset, tool diameter, tool wear and broken tool alarm.
Robust fully sealed structure with IPX8 waterproof rating, effectively block cutting fluid, metal debris and oil pollution, long service life without frequent maintenance.
Two optional stylus configurations: 12.7mm tungsten caroffere disc stylus / 19.05mm ceramic square stylus, match small drill bits, milling cutters, taps and forming tools.
Built-in break stem protection mechanism, prevent probe damage when tool collision occurs, reduce repair cost.
Wide system compatibility: Match MI 8-4 / HSI / HSI-C signal interface board, support Fanuc, Mitsubishi, Heidenhain, Siemens mainstream CNC controllers.
Compact base mounting design, occupy minimal table space, easy installation on vertical, horizontal and gantry machining centers.

4. Full Product Description (With Shipping, Warranty & Return Template)Product OverviewThe Renishaw TS27R is a professional hard-wired 3D touch-trigger tool setter exclusively developed for CNC machining centers. Different from wireless spindle probes, it adopts wired signal output, completely avoids signal loss and mis-trigger caused by coolant splash and light interference.It can automatically complete tool length offset calibration, tool diameter measurement, real-time tool wear monitoring and broken tool detection during production. When abnormal broken tool is detected, it will send alarm signal to CNC system to stop processing immediately, avoiding large batch workpiece scrap and spindle collision damage.Widely applied in mold workshop, auto parts processing, precision hardware, aerospace component manufacturing and other industries with strict precision requirements.Key Specifications

Model: Renishaw TS27R
Transmission Mode: Hard-wired screened cable (max total length 25m)
Repeatability: 1.00 μm 2σ
Sensing Directions: ±X, ±Y, +Z
Protection Grade: IPX8
Trigger Force: 1.30 N ~ 2.40 N
Optional Stylus: 12.7mm tungsten caroffere disc stylus / 19.05mm ceramic square stylus
Matching Interface: MI 8-4, HSI, HSI-C signal conversion board
Weight: 1055g (with disc stylus)
Application: Vertical / Horizontal / Gantry CNC machining center
Warranty: 1-year Renishaw manufacturer warranty

Standard Kit Components

TS27R main probe unit with mounting base
2pcs break stem anti-collision spare parts
Disc / square measuring stylus (choose one as required)
4-core shielded signal cable
Installation fixing screws & operation manual

About UsWe supply authentic Renishaw test instruments including machine probes, tool setters, receivers and supporting interfaces, all items in stock for instant shipment after payment.Shipping InformationWe provide FedEx & UPS worldwide delivery. All probes are packed with shockproof foam and hard cartons to prevent transit damage. Tracking number will be uploaded within 24 hours after dispatch.Warranty PolicyAll Renishaw TS27R come with official 1-year manufacturer warranty. Free maintenance or replacement is available for factory quality defects under normal use. Man-made collision, improper wiring and consumable styli are not covered by warranty.Return Policy

Contact us via message within 30 days if you need return; returns without prior communication will be rejected.
Returned goods must keep original package, complete accessories and intact appearance without disassembly or scratch.
If return caused by product quality defect, we bear return freight; if personal wrong purchase, buyer undertakes all round-trip shipping cost.
Refund will be processed within 3 working days after goods inspection.

Contact UsIf you need matching MI8-4 / HSI interface board, spare stylus or combined bulk quotation, feel free to send message, we will reply promptly.5. Customs Clearance Short NameRenishaw TS27R CNC tool setting probe, hard-wired touch-trigger tool measuring instrument for machining center tool offset detection
