Premium 3\" x 6\" Protoboard PCB, ENIG Prototyping PCB, ST-PROTO-3-6:
$10.99

ST-PROTO-3-63\" x 6\" Protoboard

High quality FR4 can withstand high temperature soldering and re-work
Standard 0.1\" pitch holes enable compatibility with a large variety of components
Rows are electrically connected for fast circuit creation
Four mounting holes allow for easy fixturing

SpecificationsHole Pitch0.1\"Hole Diameter0.04\"Mounting Holes4x - 0.125\"Surface FinishENIGTemperature Rating-30°C to +110°C

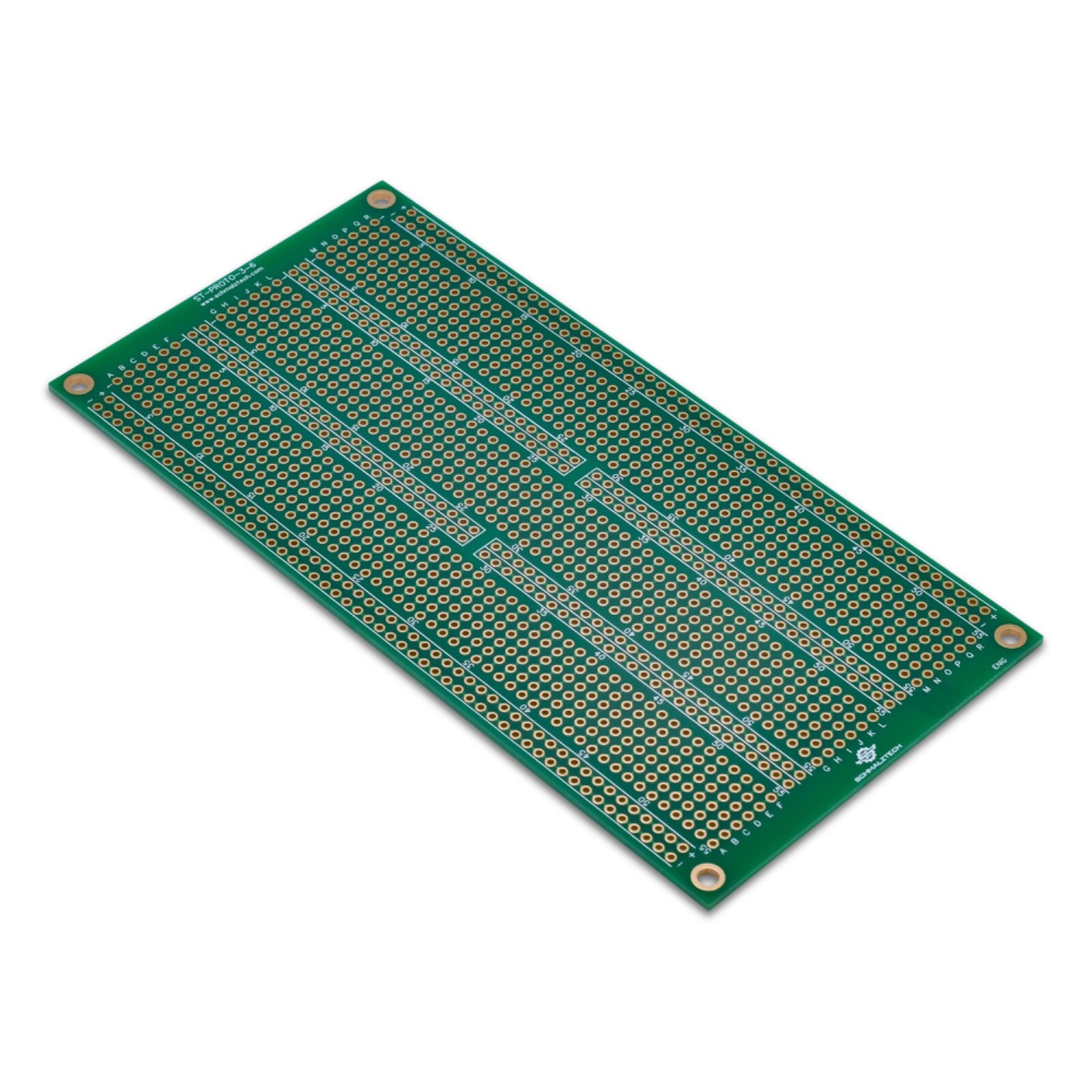

This protoboard is the perfect tool for quickly prototyping an electronic circuit or turning a breadboard prototype into something more permanent. These boards have an ENIG surface finish and are made from high quality FR4 which can withstand high temperature soldering and re-work. The holes on this prototyping PCB have a standard 0.1\" pitch to enable compatibility with a large variety of electronic components. The space between the power rails and the adjacent rows is 0.15\". Each hole is electrically connected to a row of holes to make building circuits fast and easy. See the drawing below for a detailed view of the electrical connections on this board. Both sides of this board have solder mask, making it easier to control solder flow and prevent unintentional bridges.

Mechanical DrawingsElectrical Connections

This protoboard is broken up into rows of six electrically connected holes separated by two half-length power rails. There are also two independent power rails on each side. All electrical connections are shown in the drawing above.

Custom Designs

Can\'t find what you need? We can design and produce a custom board to fit your exact needs. Please reach out to us for additional information and pricing.
