Picosecond 5810B-114 Broadband Pulse Amplifier 13dB Gain Tested w/ VNA Plots:
$242.00

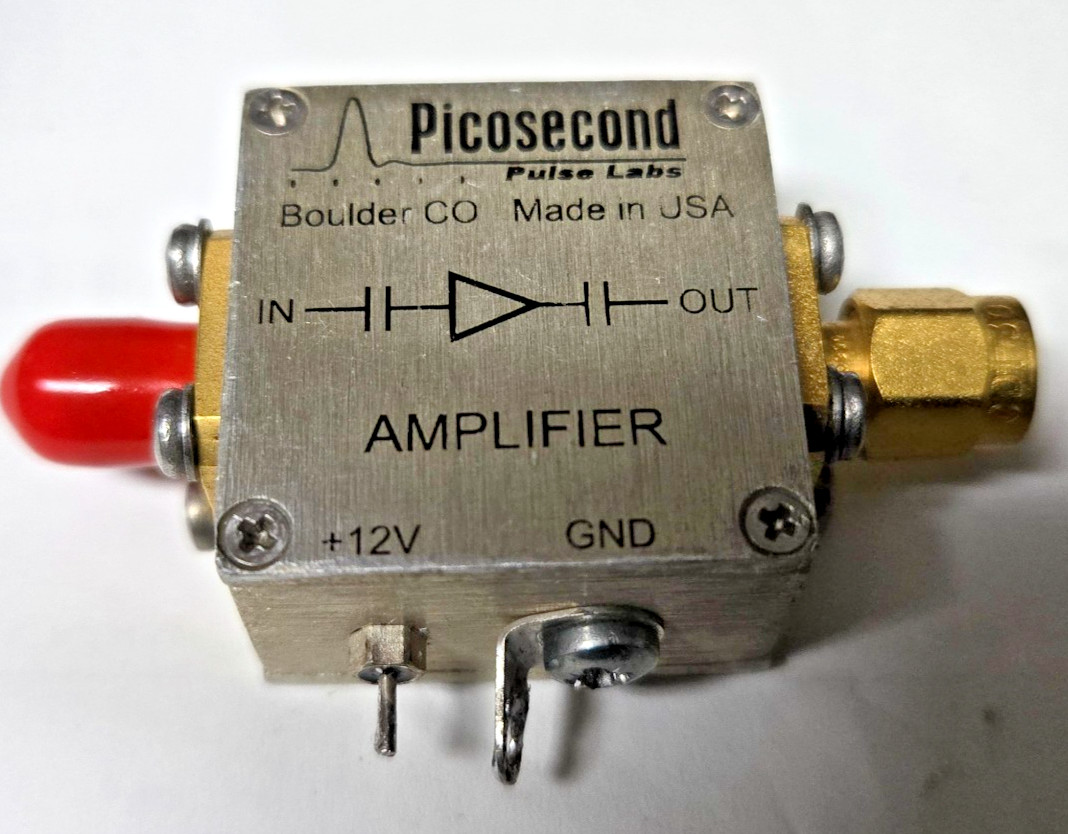

Exact item shown:Picosecond Pulse Labs 5810B-114 Broadband Pulse Amplifier

Tested Picosecond Pulse Labs model 5810B-114 broadband pulse amplifier. This amplifier is marked"Made in USA" and operates from a +12VDC power source. I tested the unit using two HP vector networkanalyzerss and a regulated 12V bench supply. The amplifier shows gainconsistent with the specifications in the datasheet (included as the last photo in this listing).

Per the datasheet, the 5810B-114 is a broadband pulse amplifier with nominal13 dB gain and a specified bandwidth of 6 kHz to 1.7 GHz. The amplifier is intendedfor high-speed pulse applications including pulse amplification, timing systems, TDR work, laser andphotonics experiments, high-speed digital measurements, and other broadband laboratory applications.

I tested this amplifier using both an HP 8753C Vector Network Analyzer and an HP 8720B 20 GHzVector Network Analyzer. Photos show the actual test setups and measured responses of the amplifierin this listing.

Measured Gain

FrequencyTest EquipmentMeasured Gain100 MHzHP 8753C VNA12.8 dB1 GHzHP 8753C VNA12.3 dB2 GHzHP 8753C VNA9.2 dB3 GHzHP 8753C VNA7.4 dB1 GHzHP 8720B VNA12.2 dB4 GHzHP 8720B VNA5.3 dB6 GHzHP 8720B VNA1.2 dB8 GHzHP 8720B VNA-4.8 dB

The measured response closely follows the expected behavior of a 13 dB broadband amplifier withapproximately 1.7 GHz rated bandwidth. Gain remains near the published specification through muchof the intended operating range and rolls off smoothly at higher Pulse Labs 5810B-114

Broadband pulse amplifier

+12VDC operation

SMA input and output connectors

50-ohm system design

Made in USA

Tested and operating

VNA plots included in listing photos

Manufacturer datasheet included as the final listing Pulse Labs 5810B-114 amplifier only

Please review all photographs carefully, including the VNA measurements, rear identification label,and datasheet image.
