Panduit Nylon Female Quick Connector 16-14 Gauge .250 Tab - 2600 Pack For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Panduit Nylon Female Quick Connector 16-14 Gauge .250 Tab - 2600 Pack:
$168.74

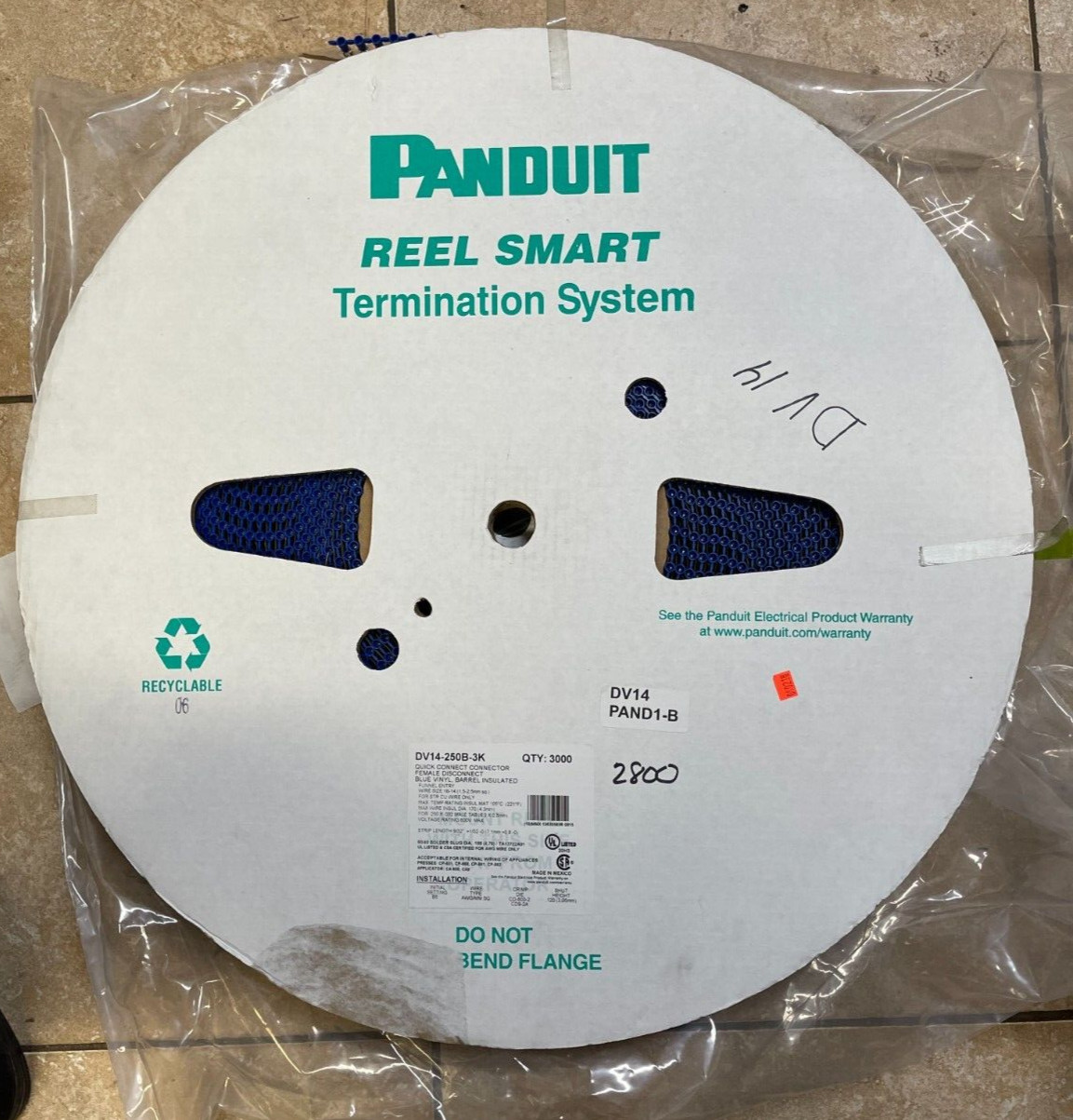

You are Purchasing APanduitDV14-250B-2800Nylon InsulatedQuick Connect ConnectorMale Disconnect16-14 AWG Gauge .250 Tab- 2600 Piece Reel
Disconnect Type - Female DisconnectInsulation Material - VinylInsulation Type - Barrel InsulatedMaximum Copper Conductor Size (AWG) - #14Maximum Wire Size (AWG) - #14Minimum Wire Size (AWG) - #16Wire Strip Length (In.) - 9/32Wire Strip Length (mm) - 7.1Tab Size (In.) - 0.250 x 0.032Tab Size (mm) - 6.3 x 0.8Standards Met - UL 310, CSA 22.2 No.153Maximum Voltage (V) - 600Base Material - BrassFinish/Coating - Tin-PlatedColor Code - BlueBarrel Type - FunnelFlammability Rating - UL94V-0Maximum Operating Temperature (°C) - 105Maximum Operating Temperature (°F) - 221Sub Brand - Reel Smart™Maximum Metric Conductor Size (mm²) - 2.5Minimum Metric Conductor Size (mm²) - 1.5Maximum Wire Insulation Diameter (In.) - 0.17Maximum Wire Insulation Diameter (mm) - 4.3Overall Height (In.) - 0.12Overall Height (mm) - 3Overall Length (In.) - 0.83Overall Length (mm) - 21.1Overall Width (In.) - 0.29Overall Width (mm) - 7.4Tongue Angle - StraightPackaging Type - ReelProduct Type - DisconnectFor Use With - Crimp press with CA9 (CD9-2A) or CA-800EZ (CD-800-2) applicatorMaximum Voltage (kV) - 0.6Part Features - • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-0, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310, where applicable
Find More Sizes Colors And Deals On Auto Supplies Check Our Store!Shipping

FAST SHIPPING! Item will be shipped within 24 hours after payment is cleared. We ship worldwide. Most packages are shipped USPS, we also ship Fedex.

All items listed as free shipping are usually sent first class or priority mail. We can ship express or Fedex overnight at an additional fee. Message us for a shipping quote.

Return Policy All items are 100% brand-new, and not refurbished in any way, unless the listing specifically states otherwise. Boxes may be opened for the purpose of testing, inspecting, photographing, adding additional padding/packaging/instruction supplements, or ensuring the completeness of the item. If a product sold with free shipping, is returned for a reason not our fault,then the shipping cost will be deducted from the refund.

15-day money back guarantee:
If the item you have ordered is defective or not satisfy with the product, contact us within 15 day period of receiving item and we will do exchange for the defective item with an item of equal or greater functionality within the warranty period.

Customers must return all items in their original condition which include the original Packaging accompanied with packing slip, Documentation & Manuals and Accessories, etc., at buyer own cost. In the event that a suitable replacement is not available, a refund except shipping & handling charge will be issued in the form of the original payment method. And we will mutual cancel this transaction with .

Unclaim Package return: if the package return because incorrect shipping address, not available for receiving package after multi attemp delivery by driver, refusal at time of delivery or pick up., or unpaid broker fee and tax. we do charge all return shipping cost before refund your payment.

offer Cancellation and response:
We welcome value all of our customers. Please only buy items from us if you intend to complete the transaction. While you placed your purchase or won the offer, you should process your payment as soon as possible. We reserve right to cancel and file report for unpaid offer or purchase after 7 business days to recover our listing fee and final value fee.

Payment
We accept Paypal, including all major credit cards and payment methods through paypal.
All Sales outside the 50 states are final.
