Pair of PCB Piezotronics 393B31 Seismic ICP Accelerometer, with cables:
$1200.08

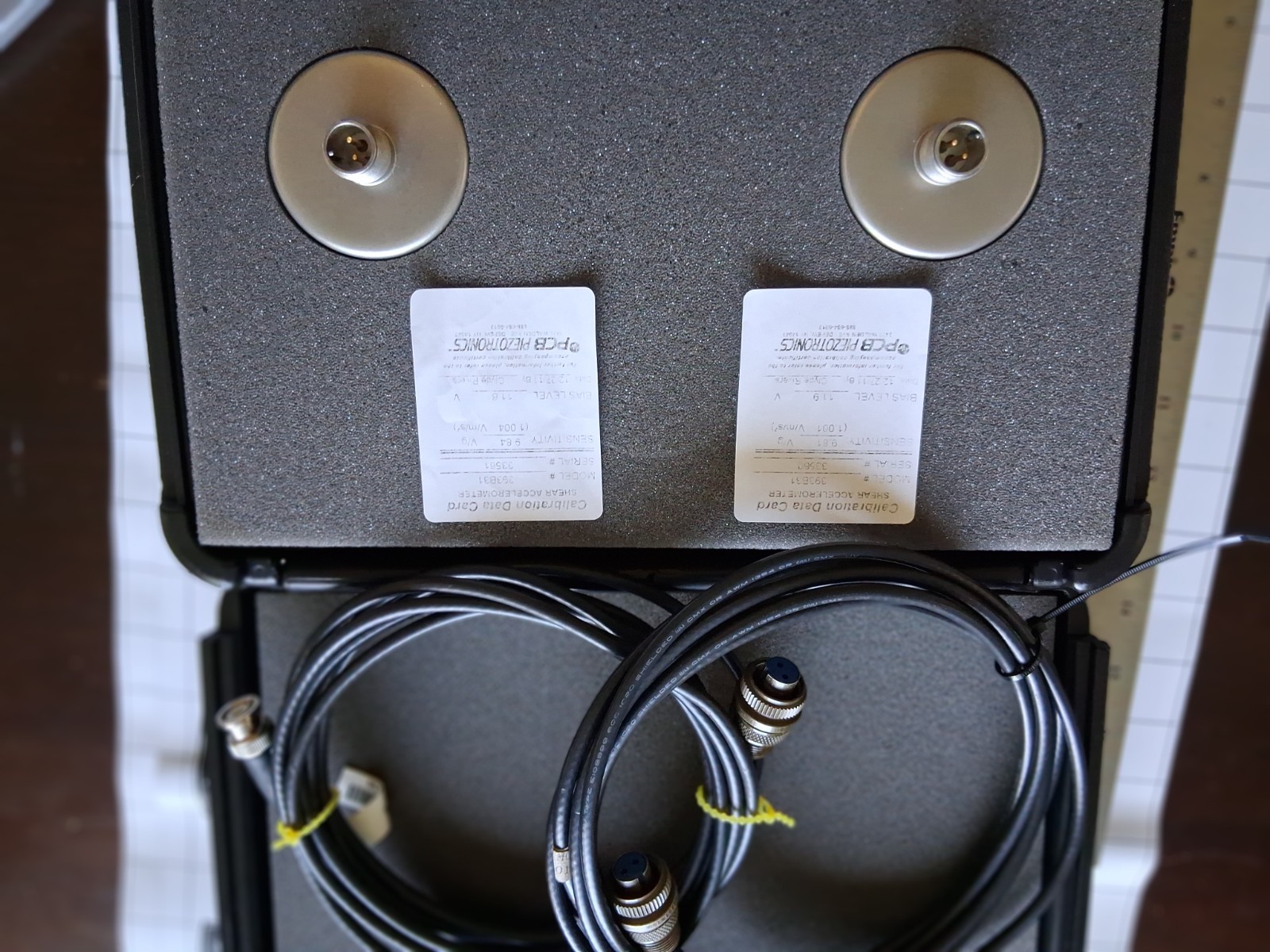

This item is a pair of (2) seismic accelerometers. Brand PCB Piezotronics. Sequential serial numbers. Two accelerometers lets you measure transfer functions, or measure X and Y to get a clearer picture of the motion. PCB branded Cables included. Again new.
Will ship in the original PCB packaging encased in foam. Specifications as below...
PerformanceSensitivity (±5 %)10.0 V/g1.02 V/(m/s²)[3]Measurement Range0.5 g pk4.9 m/s² pkFrequency Range (±5 %)0.1 to 200 Hz0.1 to 200 HzFrequency Range (±10 %)0.07 to 300 Hz0.07 to 300 HzResonant Frequency≥700 Hz≥700 HzBroadband Resolution (1)0.000001 g rms0.000009 m/s² rms[2]Non-Linearity≤1 %≤1 %[1]Transverse Sensitivity≤5 %≤5 %EnvironmentalOverload Limit (Shock)±40 g pk±392 m/s² pkTemperature Range-15 to +150 °F-26 to +65 °CTemperature ResponseSee Graph %/°FSee Graph %/°FBase Strain Sensitivity≤0.0005 g/µε≤0.005 (m/s²)/µε[2]ElectricalExcitation Voltage24 to 28 VDC24 to 28 VDCConstant Current Excitation2 to 10 mA2 to 10 mAOutput Impedance≤500 Ohm≤500 OhmOutput Bias Voltage8 to 14 VDC8 to 14 VDCDischarge Time Constant≥5 sec≥5 secSettling Time (within 10% of bias)60 sec60 secSpectral Noise (1 Hz)0.06 µg/√Hz0.6 (µm/sec2)/√Hz[2]Spectral Noise (10 Hz)0.01 µg/√Hz0.1 (µm/sec2)/√Hz[2]Spectral Noise (100 Hz)0.004 µg/√Hz0.04 (µm/sec2)/√Hz[2]Electrical Isolation (Case)≥100000000 Ohm≥100000000 OhmPhysicalSensing ElementCeramicCeramicSensing GeometryFlexuralFlexuralHousing MaterialStainless SteelStainless SteelSealingHermeticHermeticSize - Diameter2.25 in57.2 mmSize - Height2.8 in71.1 mmWeight22.4 oz635 gm[2]Electrical Connector2-Pin MIL-C-50152-Pin MIL-C-5015Electrical Connection PositionTopTopMounting Thread1/4-28 Female1/4-28 FemaleMounting Torque2 to 5 ft-lb2.7 to 6.8 Nm
