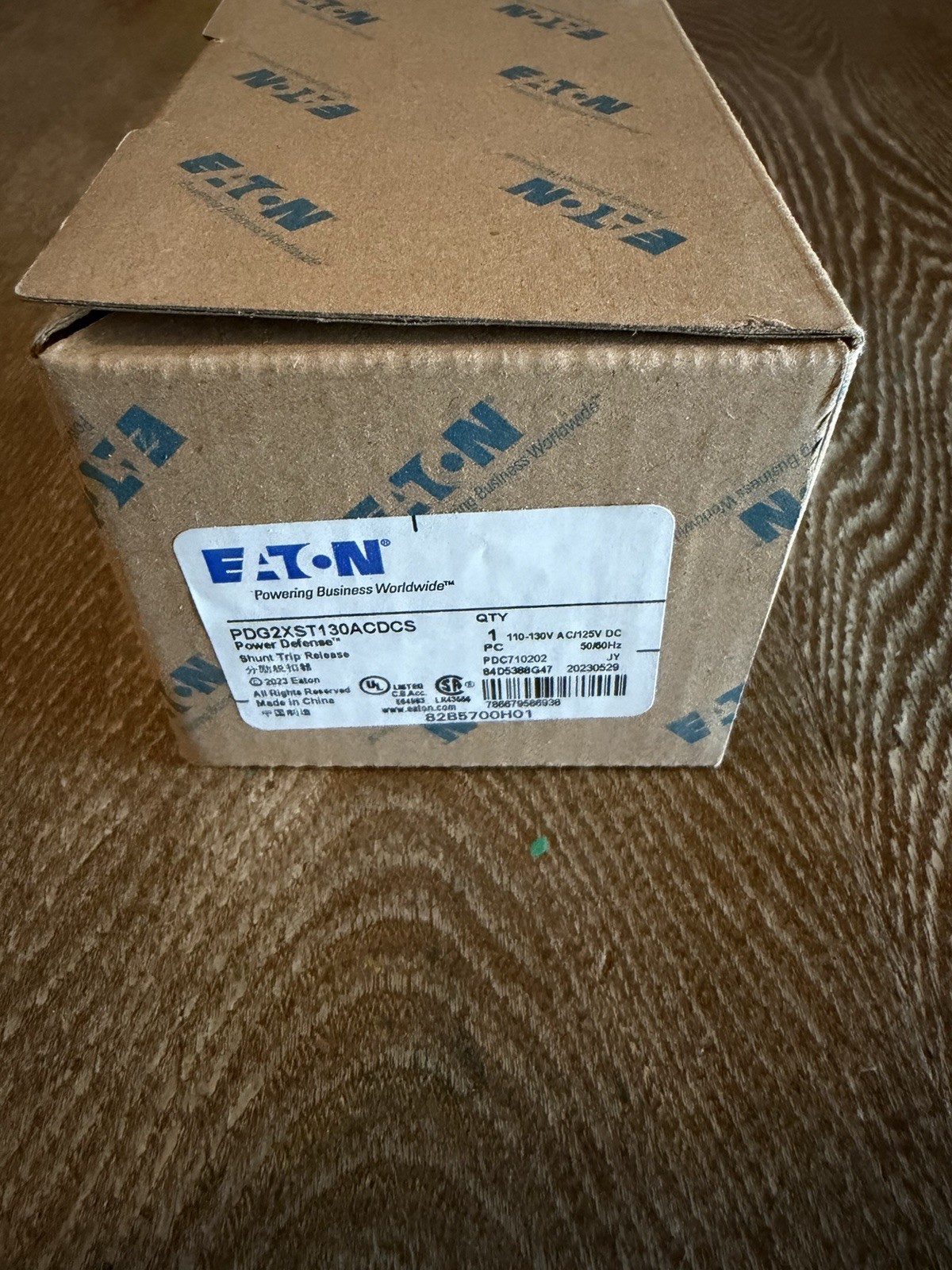

PDG2XST130ACDCS Eaton PDG2 Shunt Trip 110-130VAC/125VDC New USA Stock:
$255.00

The PDG2XST130ACDCS Eaton PDG2 Shunt Trip is a reliable circuit breaker designed for industrial use. With a voltage range of 110-130VAC/125VDC and a current type of AC/DC, this shunt trip is suitable for a variety of applications. It features 3 phases and 3 poles, making it ideal for protecting electrical circuits in businesses and industrial settings. This product is a new USA stock, ensuring high quality and availability for your electrical equipment needs.

---

---

---

PDG2XST130ACDCS Eaton PDG2 Shunt Trip 110-130VAC/125VDC New USA Stock

$255.00

---

PDG3XST130ACDCS Eaton 110-130VAC Shunt Trip New USA Stock

$299.37

---

PDG2XST24ACDCS Eaton PDG2 Shunt Trip 24VAC/DC New USA Stock

$265.00

---
