Otis Elevonic 401 CPU Processor Board HT204349-5 | PCAS1666 PCA | Vintage:
$489.09

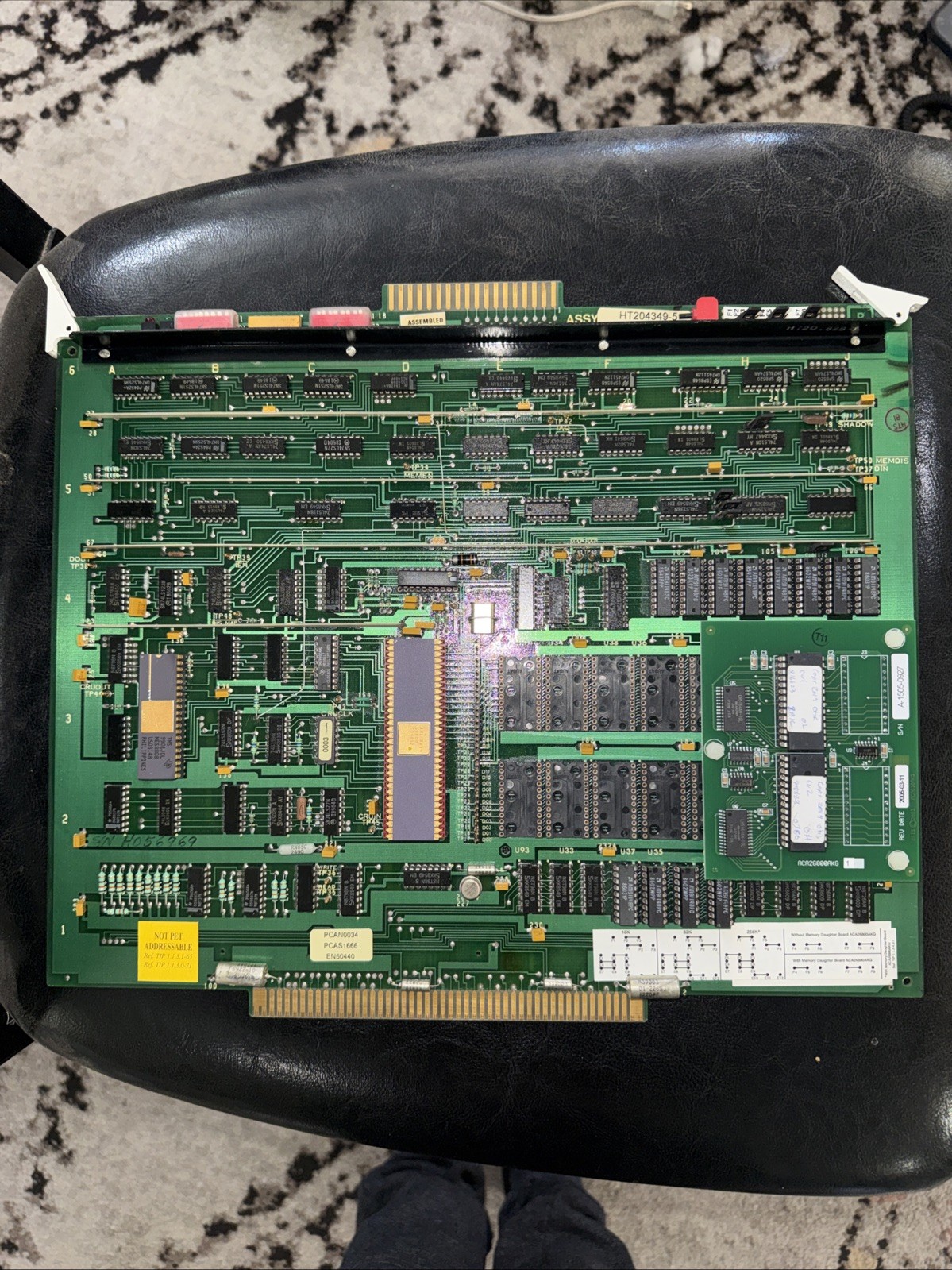

For sale is a vintage Otis Elevator CPU/Processor Board, assembly number HT204349-5. This board is a critical component for Otis Elevonic 401 (E401) control systems. It features high-quality ceramic chips, including an AMI processor and a TMS9901L interface controller.

Key Features & Details

• Main Board Part Number: HT204349-5 / PCAS1666 / PCAN0034

• Daughterboard Attached: Includes modern replacement daughterboard ACA26800AKG (Revision Date: 2006-03-11).

• EPROMs Included: Features two programmed chips labeled CU1 and CU2 (marked "Copy 2014 Otis").

• Condition: Used, pulled from a working environment. The board is physically clean with all components intact. It features original factory "bodge" wire modifications as standard for this industrial revision.

• Configuration: Includes jumper setting diagrams for 16K, 32K, and 256K memory configurations.

Technical Specs

• Manufacturer: Otis Elevator Company

• Era: Late 1980s / Early 1990s (Main Board), 2006 (Daughterboard Rev)

• Status: "Not PET Addressable" (as per factory sticker)

Disclaimer

This is a specialized piece of industrial equipment. Please ensure compatibility with your specific system before purchasing. Sold as-is based on visual inspection. Perfect for building maintenance, spare parts inventory, or vintage computing enthusiasts.
