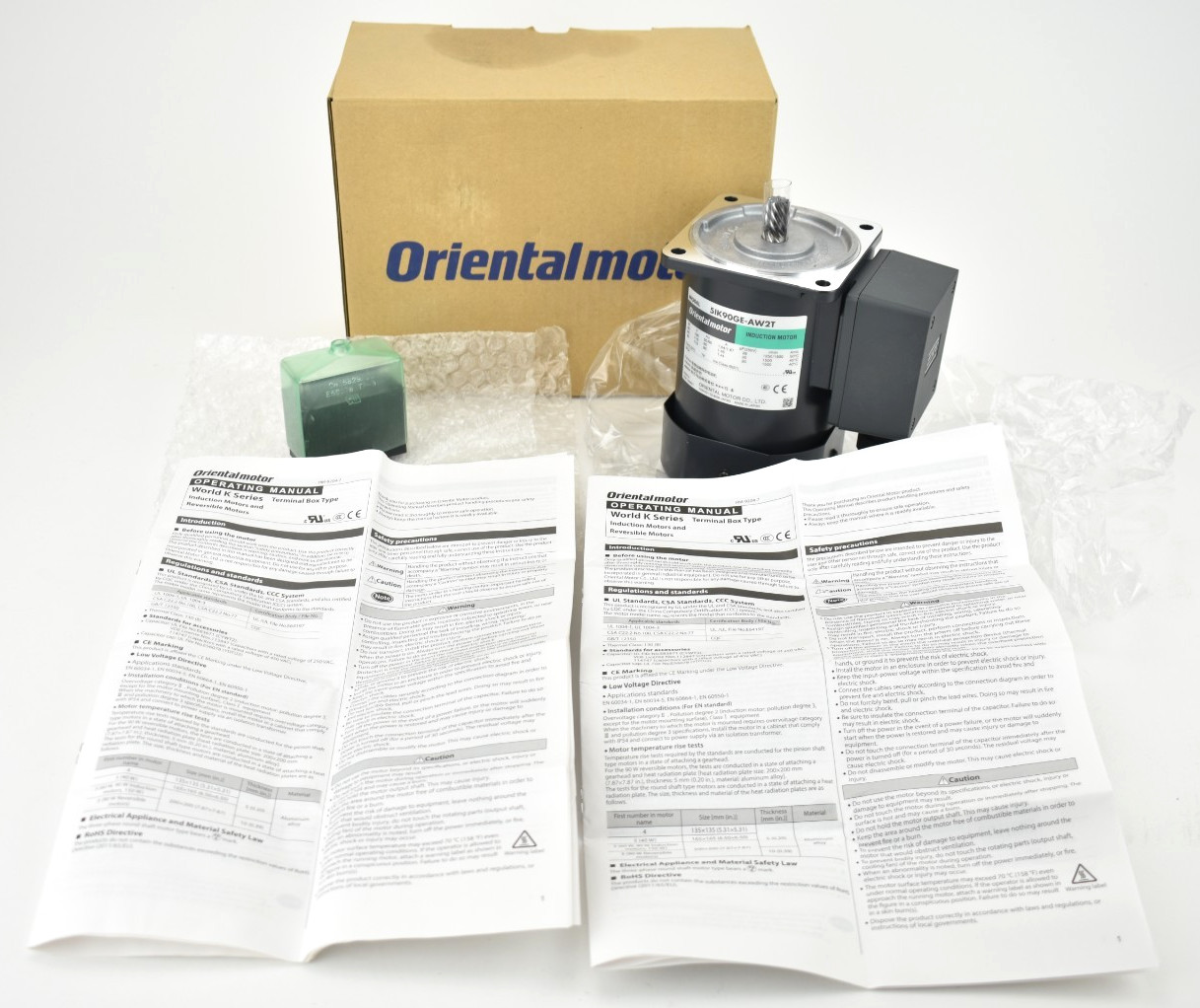

Oriental Motor 5IK90GE-AW2TU Induction Electric Motor - 90W 115V 1PH 1500RPM:
$279.99

Oriental Motor 5IK90GE-AW2T AC Induction Motor – 90W 100–115V Single Phase

Industrial-grade AC induction motor from Oriental Motor’s IK series, designed for continuous-duty operation in automation, conveyors, and machinery. Known for reliability and compatibility with modular gearheads for torque and speed control.

This unit is configured for 100–115V operation, making it suitable for North American and light industrial applications.

Key Specifications (From Nameplate – Verified)

Manufacturer: Oriental Motor
Model: 5IK90GE-AW2T
Motor Type: AC Induction Motor
Power Rating: 90W (≈1/8 HP)
Phase: Single Phase (1PH)

Voltage / Frequency / Current:

100V / 50–60 Hz — 1.64 / 1.67 A
110V / 60 Hz — 1.45 A
115V / 60 Hz — 1.44 A

Speed:

1250 RPM (50 Hz)
1500 RPM (60 Hz)

Capacitor (Required):

28 µF (100V use)
20 µF (110–115V use)
250V rated capacitor

Other:

Insulation Class: B (S1 continuous duty)
Ambient Rating: Up to 40–50°C
Origin: Made in Japan

Gearhead Compatibility

Designed for Oriental Motor GN gearheads
Commonly used in gear motor assemblies

High-Value Search Keywords (Built In)

Oriental Motor 5IK90GE
90W induction motor
115V AC motor
gear motor base
conveyor motor
single phase industrial motor

Applications

Conveyor systems
Packaging machinery
Automation equipment
Food processing equipment
Material handling systems

Design Features

Continuous-duty industrial design
Smooth, quiet operation
Compact form factor
Gearhead-ready configuration
High reliability Japanese manufacturing
