Older Kansas Jack, Black-Hawk pulling posts Hydraulic Cylinder 10 Ton 6” Stroke For Sale

Older Kansas Jack, Black-Hawk pulling posts Hydraulic Cylinder 10 Ton 6” Stroke
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Buy Now

Older Kansas Jack, Black-Hawk pulling posts Hydraulic Cylinder 10 Ton 6” Stroke:
$274.99

10-ton, 6” stroke threaded-bottom ram used on older Kansas Jack and Blackhawk pulling posts Power Tower, and as the lift ram on Star-A-Liner Cheetah, Continental Flat Rack, and Star Rack frame machines.


2 year warranty


Specifications

• Capacity: 10 ton

• Stroke: 6 in

• Closed length: 11.5 in

• Open length: 17-5/8 in

• Bottom thread: 1-1/4 NPT female

• Top adapter: 1-1/4 NPT male

• Barrel collar: 2-1/4”-14 × 1 in long

• Port: 3/8 NPT

• Type: single-acting, internal spring return

• Rebuildable commercial-grade cylinder

• Hard-chrome polished rod

• side-load bearing for off-center / horizontal use

• Seamless steel body, internally polished

These units are white, but sometimes come in yellow or blue. Please specify if you have a preference.

Buy Now

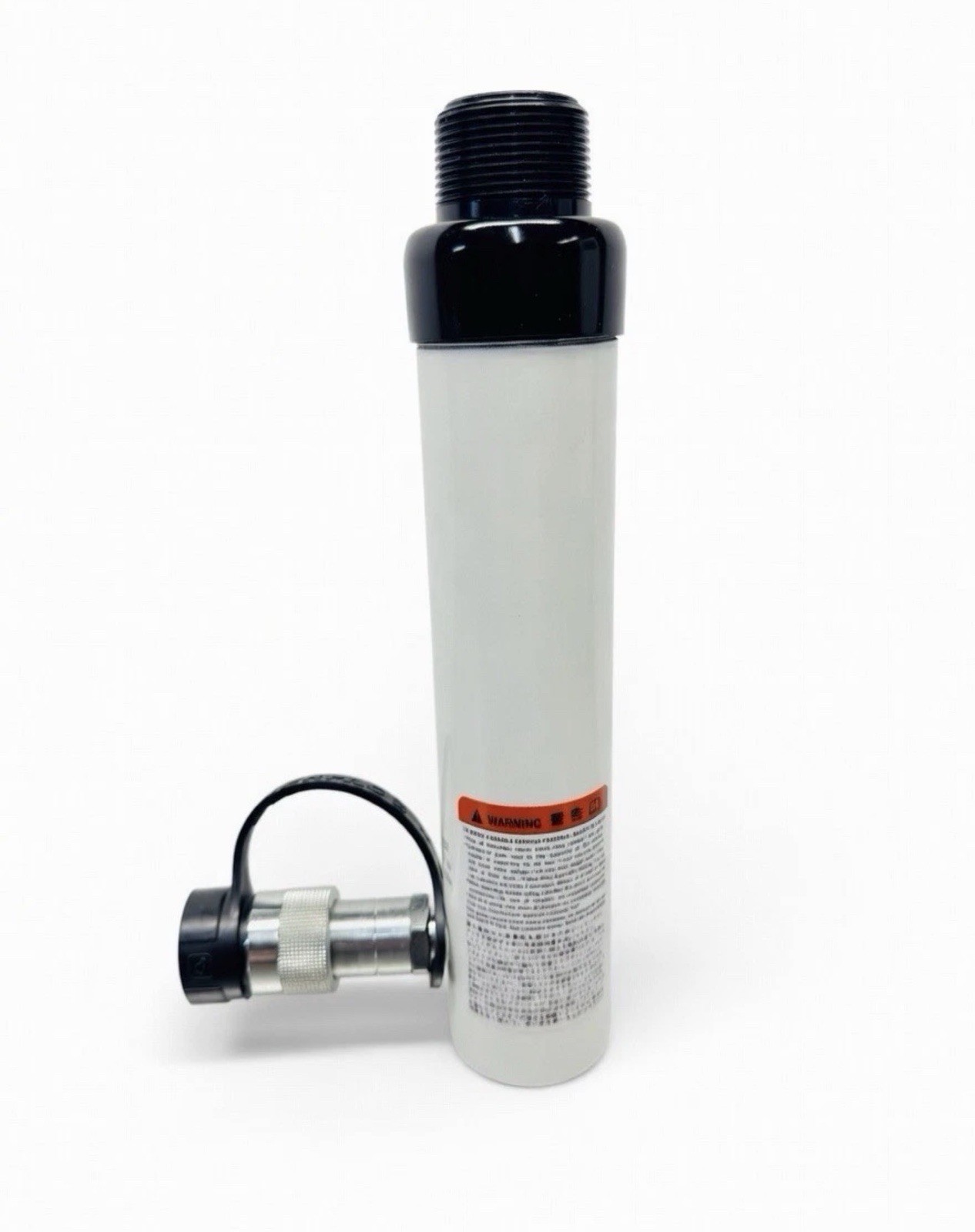

Older Kansas Jack, Black-Hawk pulling posts Hydraulic Cylinder 10 Ton 6” Stroke picture
