Norgren C0024B Pneumatic Lockout/Shut-Off Valve w/Muffler 1\"PTF/NPT ports:
$158.00

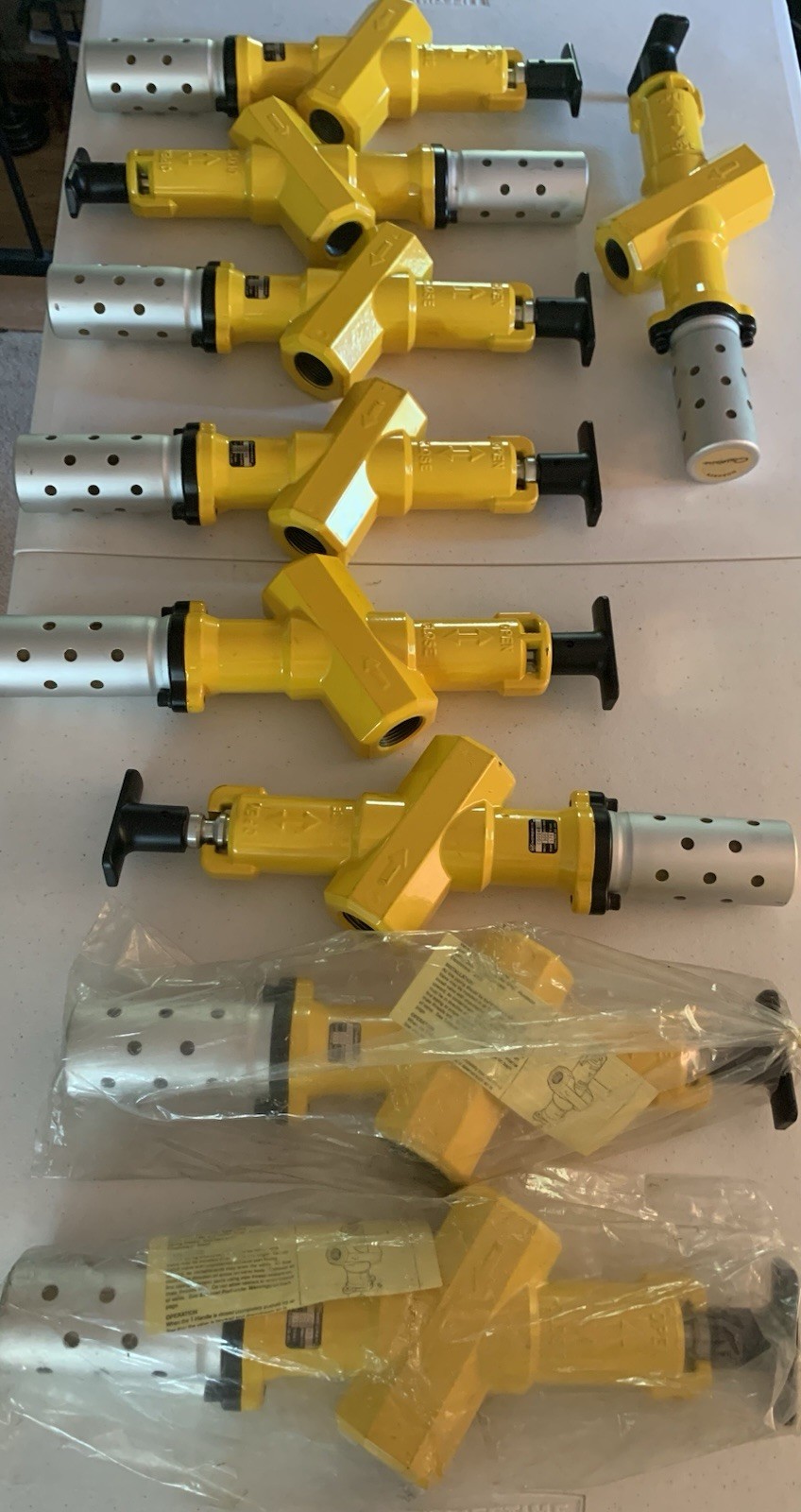

All are New, Never Used, No Box with a few light scratches from being stored.

Norgren C0024B Pneumatic Lockout/Shut-Off Valve w/Muffler 1"PTF/NPT ports is a 3-way, manually operated pneumatic safety valve designed to isolate air supply and exhaust downstream pressure during equipment maintenance.

Key Specifications & Features:

Port Size: 1" PTF / NPT ports

Directional Control Valves: Specifically classified as a 3/2-way manual valve (3 ports, 2 positions). Normally closed, lever-operated safety valve that uses a simple push-pull mechanism to control air supply and safely exhaust downstream pressure.

Here is exactly how the valve operates during normal production and safety lockouts:

Flow Rate: 14,300 l/min (505 scfm)

Max Operating Pressure: 300 psi (20.4 bar)

Operating Temperature: -20°F to 175°F (-29°C to 79°C)

Body Material: Aluminum

Seals / Elastomers: Nitrile rubber (NBR), Polyurethane

Flow Factors: (Cv)16.2 (In to Out) / 9.2 (Out to Exhaust)

Primary Category:

1. Normal Operation (Air Supply "ON")Action: The operator manually pushes the yellow slide handle inward (toward the valve body).

Internal State: The internal spool aligns to open the flow path between the inlet port (Port 1) and the outlet port (Port 2). The exhaust port (Port 3) is sealed off.

Result: Main system air flows freely through the valve to power downstream machinery, cylinders, and manifolds.

2. Lockout / Energy Isolation (Air Supply "OFF")

Action: The operator manually pulls the yellow slide handle outward (away from the valve body).Internal State: The slide handle mechanically shifts the spool to completely block the incoming supply air at the inlet (Port 1). Simultaneously, it opens a direct path between the downstream equipment (Port 2) and the exhaust port (Port 3).

3. Securing the Valve (LOTO Compliance)

Action: Once the handle is pulled into the "OFF" position, a dedicated lockout hole is exposed in the slide mechanism.

Result: A standard OSHA safety padlock or multi-lock hasp can be clamped through this hole. This physically prevents the handle from being pushed back in, guaranteeing the pneumatic energy remains safely isolated while maintenance personnel service the equipment.
