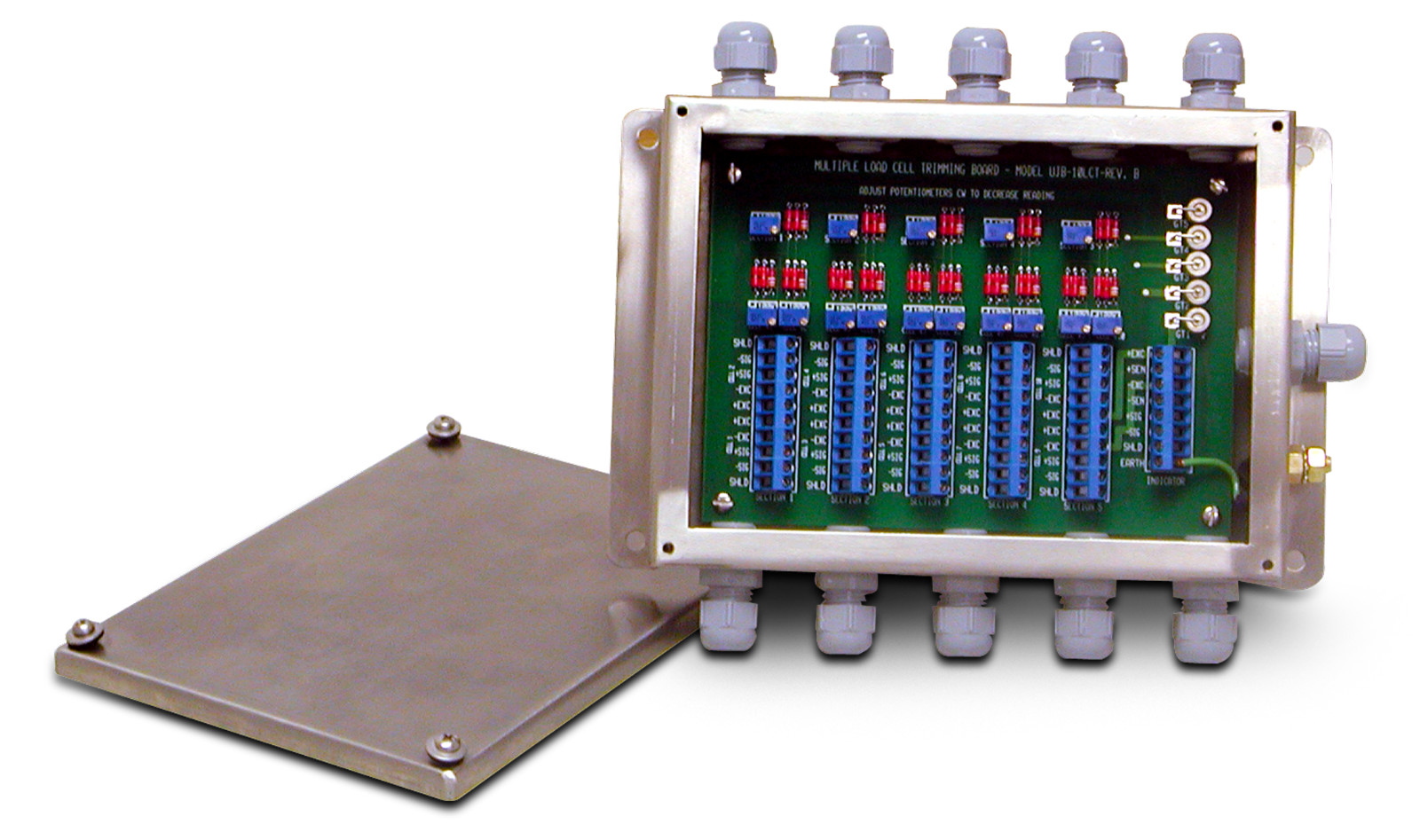

New Rice Lake JB1010ST 10-Channel Signal Trim Junction Box Stainless NEMA 4X:
$465.99

TestWelcome To our Shop Rice Lake JB1010ST 10-Channel Signal Trim Junction Box Stainless NEMA 4XProduct Description The Rice Lake JB1010ST Signal Trim Junction Box is a heavy-duty industrial junction box engineered for large multi-load-cell weighing systems requiring accurate signal trimming and dependable environmental protection. Designed to accommodate two, four, six, eight, or ten single load cells, the JB1010ST provides precise signal balancing while maintaining long-term reliability in demanding industrial and outdoor installations.

Unlike conventional junction boxes, the JB1010ST features individual cell and section signal trim capability, allowing technicians to fine-tune each load cell as well as groups of load cells for maximum weighing accuracy. This improves scale performance by compensating for uneven loading and ensuring consistent readings across the weighing platform. Any unused channels require modification before operation.

For superior protection against electrical disturbances, the JB1010ST incorporates transient protection using gas discharge tubes, helping safeguard load cells and weighing electronics from lightning strikes, static discharge, and voltage surges commonly encountered in outdoor scale installations.

The enclosure is constructed from stainless steel and rated NEMA Type 4X, providing excellent resistance to moisture, dust, corrosion, and harsh industrial environments. Its compact profile of only 1.75 inches deep allows installation where space is limited without sacrificing durability or performance. Legal for Trade sealing screws, wire, and seal are included for applications requiring tamper-evident sealing.

Featuring precision 100,000-ohm 25-turn cermet potentiometers, rugged miniature screw terminals, and eleven strain-relief cable fittings, the JB1010ST delivers reliable load cell summing and accurate signal management for truck scales, railroad scales, tank weighing systems, and other heavy-duty industrial applications.

Key Features

Connects 2, 4, 6, 8, or 10 single load cells (even-number configurations only)
Individual cell and section signal trim capability
Built-in transient protection using gas discharge tubes
Rugged stainless steel NEMA Type 4X enclosure
Compact enclosure design—only 1.75" deep
Eleven nylon strain-relief cable fittings
External enclosure ground stud
Legal for Trade sealing screws, wire, and seal included
Precision 25-turn cermet potentiometers for accurate signal balancing
Ideal for truck, railroad, and tank scale LakeModelJB1010STPart Number68813Type10-Channel Signal Trim Junction BoxLoad Cell Capacity2, 4, 6, 8, or 10 Single Load Cells (Even Number Only)TrimmingIndividual Cell & Section Signal TrimTransient ProtectionGas Discharge TubesEnclosure MaterialStainless SteelEnclosure RatingNEMA Type 4XConnectorsElectrovert 0.197" Five-Position Miniature Screw TerminalsMaximum Wire Size#14 AWGPotentiometers100,000 Ohm, 25-Turn Cermet (Individual), 100 Ohm (Section)Cable FittingsEleven Nylon Strain Reliefs (0.079"–0.314")GroundingExternal Enclosure Ground StudOperating Temperature0°F to 122°F (-18°C to 50°C)WarrantyOne-Year Limited WarrantyApplications
- Truck Scales
- Railroad Scales
- Tank Weighing Systems
- Industrial Process Weighing
- Heavy-Duty Multi-Load-Cell Scale Systems
- Signal Summing Applications
- Legal for Trade Scale Installations
