On eBay Now...New PEC MIL Spec Dual Potentiometer / Resistor P/N 2RV7 SY SD 352 352A -3.5k Ohm For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

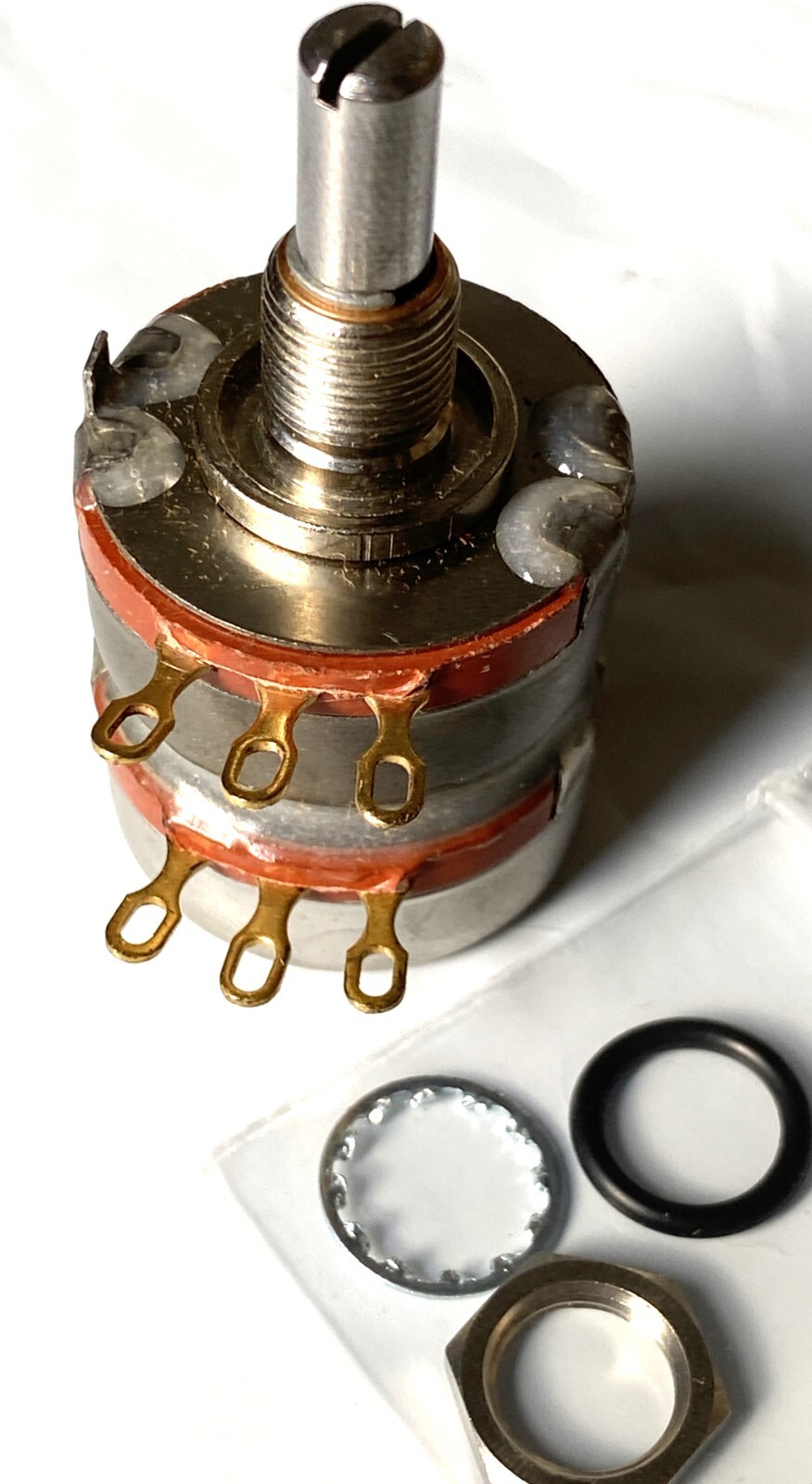

New PEC MIL Spec Dual Potentiometer / Resistor P/N 2RV7 SY SD 352 352A -3.5k Ohm:
$59.99
Precision Electronics Corporation Military Spec Dual Potentiometer / Resistor- P/N 2RV7 SY SD 352 352A
- Bushing: Panel & Shaft Seal
- Temperature & Moisture Characteristics: As per MIL-R-94
- Shaft Style: Slotted
- Shaft Length: 7/8"
- Resistance: 3.5k Ohms
- Operating temperature: -65°C to +125°C
- Resistance to soldering heat: 350°C for 5 seconds
- Humidity range: per MIL-R-94
- Vibration range: per MIL-R-94
- Shock resistance: per MIL-R-94
- Load life: 1000 hours at 70°C
- Hot molded carbon element
- Gold-plated terminals
- Stainless-steel shaft and housing
- Quality meeting or exceeding MIL-R-94
- Power rating: 2 watts at 70°C derated to 0 watts at 120°C
- Insulation resistance:dry: 10K MegΩwet: 100K MegΩ
- Dielectric strength: 900 V RMS at sea level
- Operating voltage: 500 V, subject to power rating
Precision Electronics PEC RV4NAYSD502A Potentiometer 5k OHM - Genuine OEM NEW
$15.49
NEW PEC 350A Fuse BC 6000A DC 450V
$166.49
New PEC MIL Spec Dual Potentiometer / Resistor P/N 2RV7 SY SD 352 352A -3.5k Ohm
$59.99
