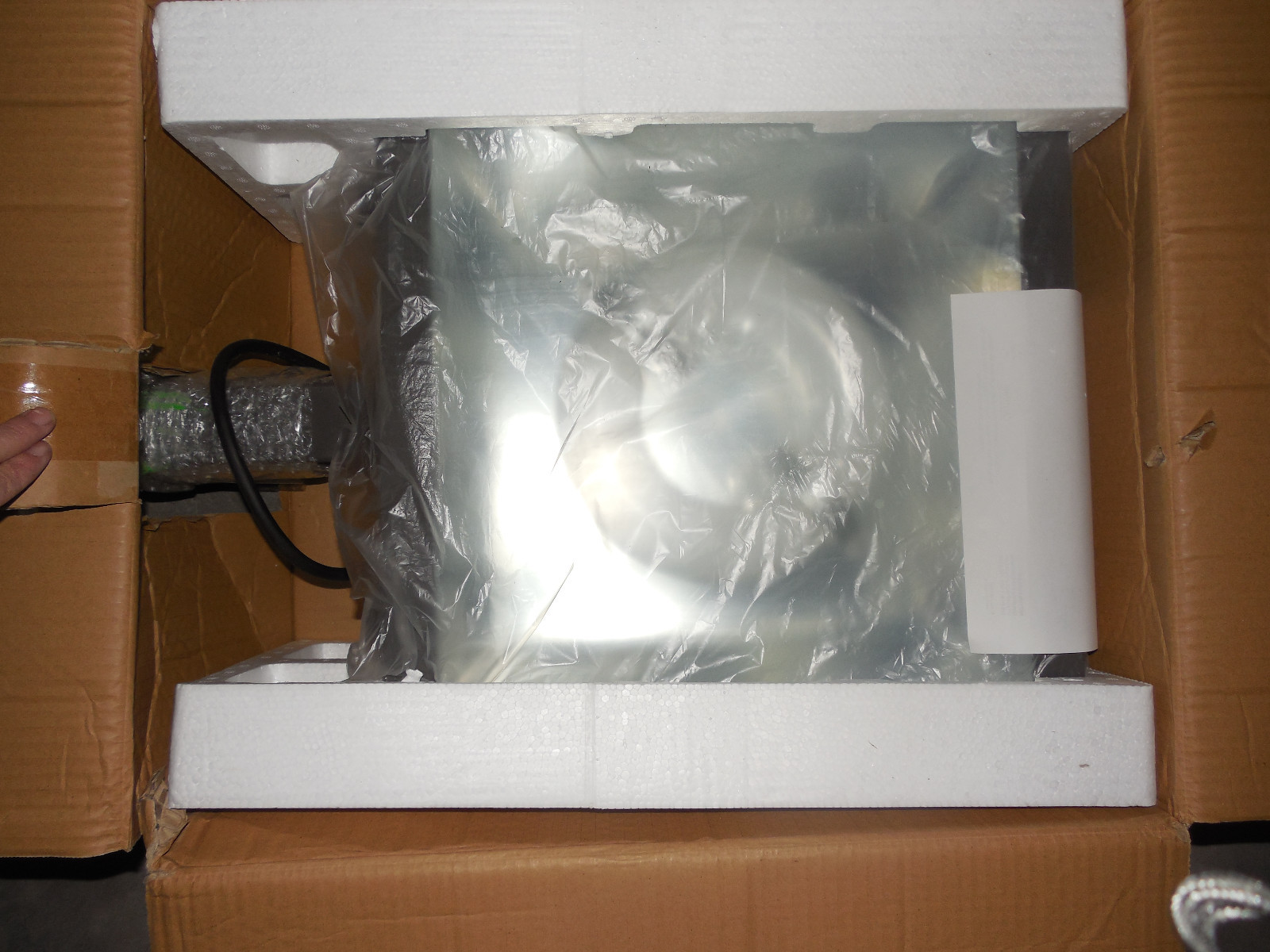

New 120W Shoe Box Area Light Fixture 6" Side Arm Mount Induction Luminaire:
$155.75

Induction 16" SHOEBOX Parking Light Fixtures | 16xxx Series Description

Ballast Type

Start Method

Hot Re-start

Input Line Voltage

Input Line Frequency

Lamp Operating Frequency

Ballast Off-State Draw

Sound Rating

ANSI Surge Protection

Lamp / Ballast System Life

Lumen Maintenance @75,000Hrs

Color Temperature

VAC
50/60 Hz
250 kHz
0 Watts
Class A
Class A
100,000 Hrs.
>70%
5000°K

Color Rendering Index (CRI)

Minimum Starting Temperature

Maximum Starting Temperature

Lumens per Watt

Shock / Vibration Resistant

Power Factor

Total Harmonic Distortion

Inrush Current Peak

ETL Listed / UL Standard 1598

FCC Compliance

IP Rating

83
-20°F160°F80
Yes
> 0.98
< 10%
< 10 Amp
Yes
Part 18, Subp. C
IP65

---

---

---
