Nema23/Nema34 Closed Loop Encoder Stepper Motor Drive CNC Power Supply Kits Mill:
$78.45

Application Fields:✅CNC Machinery: Precision milling, engraving, cutting, and lathe operations.✅Automated Manufacturing: Robotic arms, conveyor systems, and assembly lines.✅3D Printing & Laser Cutting: High-resolution positioning for flawless layer transitions.✅DIY CNC Projects: Ideal for hobbyists upgrading to professional-grade motion control.✅Industrial Automation: Packaging, textile machinery, and rotary indexing systems.Why Choose This Kit?✅ Unmatched Accuracy – Closed-loop technology eliminates step loss.✅ Unlike traditional open-loop systems, which rely solely on command signals without response, the closed-loop kit provides real-time position response,resulting in improved accuracy, reliability, and stability.

1.2~12Nm Nema 23 34 Closed Loop Step Motor Easy Servo 57 86 Motor Drive CNC Kit

HighFeatures:

✅Precision Closed-Loop System:

Never Lose Steps:closed-loop stepper motors with 1000-line encoders ensure flawless accuracy, even under heavy loads.

High Torque:1.2N.m-12Nm(optional)holding torque per motor for demanding industrial applications.

✅Advanced DSP Drivers:

HB8080C:Nema 23 Closed-Loop Drivers with 13A peak current and 200KHz response frequency for ultra-responsive control.

Wide Compatibility: Supports 24-80VDC input, PUL/DIR or CW/CCW signals, and 200-25,600 microsteps for silky-smooth motion.

HB860C:Nema 34 DSP Closed loop stepper drive; Maximum peak current: 8A; Impulse response frequency: 200KHz;

Input Voltage: 20~80 V AC/30-110 V DC;

✅Stable Power Supply:

for Nema23:350W 24V DC Output with 90%+ efficiency, over-current/voltage/load protection, and dual AC input (110V/220V switchable).

for Nema34:Power:400W; Output Voltage(DC): 60VDC; Input Voltage (AC): 110V/220V(+-10%); Output Current: 6.6A; Safety

✅Industrial-Grade Build:

Motors:

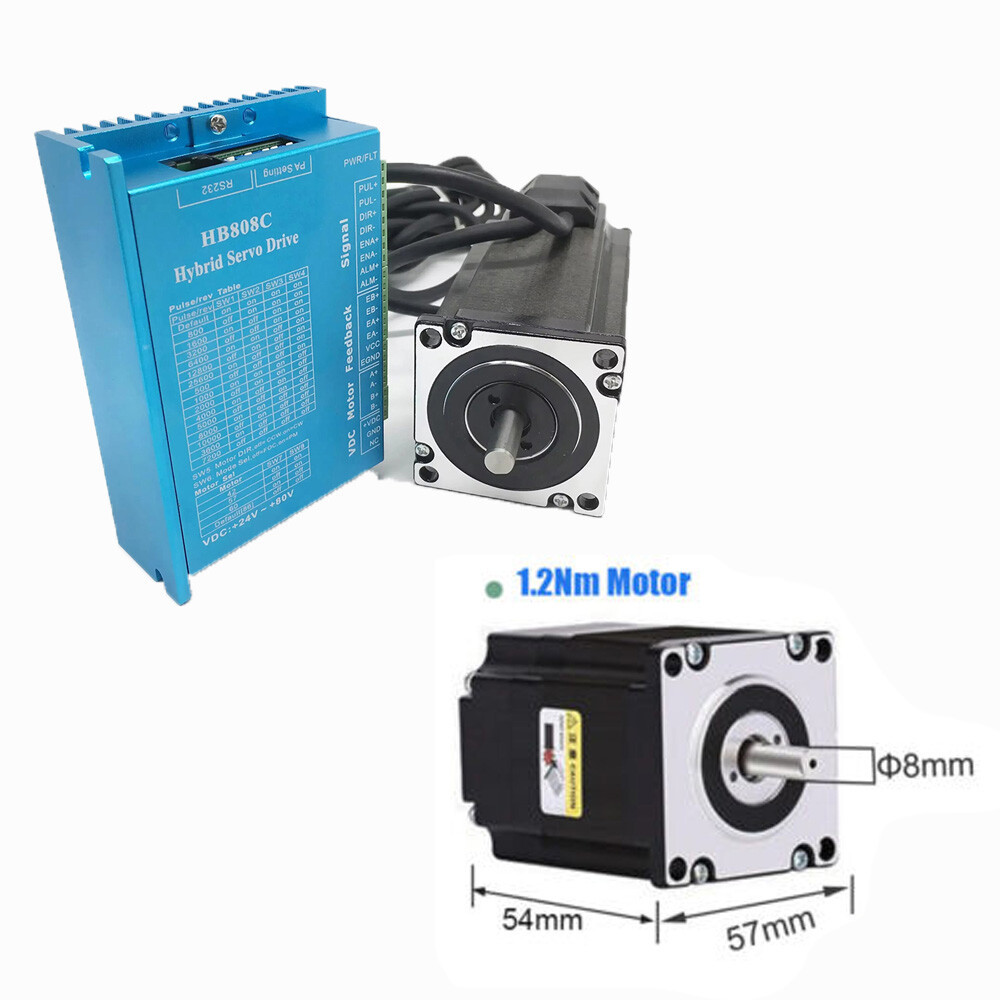

Nema 23 size :

1.2Nm:(57×57×54mm / / / 2.24×2.24×4.41in)

Nema 34 size :

4.5Nm:(86×86×80mm / 110mm / 3.39×3.39×4.33in )
12Nm:(86×86×156mm / 3.39×3.39×6.14in )

Application Fields:

✅CNC Machinery: Precision milling, engraving, cutting, and lathe operations.

✅Automated Manufacturing: Robotic arms, conveyor systems, and assembly lines.

✅3D Printing & Laser Cutting:High-resolution positioning for flawless layer transitions.

✅DIY CNC Projects:Ideal for hobbyists upgrading to professional-grade motion control.

✅Industrial Automation:Packaging, textile machinery, and rotary indexing systems.

Why Choose This Kit?

✅ Unmatched Accuracy – Closed-loop technology eliminates step loss.

✅ Unlike traditional open-loop systems, which rely solely on command signals without response, the closed-loop kit provides real-time position response,

resulting in improved accuracy, reliability, and stability.

✅ The closed loop stepper motor driver kit boasts features such as precise position control, real-time response, and automatic error correction.

It ensures reliable and accurate motor performance even in challenging environments.

✅ Easy Setup – Pre-matched components save hours of troubleshooting.

Product style="margin: 0pt 0pt 0.0001pt; text-align: justify; font-family: Calibri; font-size: 10.5pt;">

NEMA34 86mm closed-loop motor Parameters：

HBS86H Driver functional characteristics

Model:HBS86H

Type: DSP Closed loop stepper drive

Maximum peak current: 8A

Impulse response frequency: 200KHz

Micro-stepping driver: 200~51200ppr

Input Voltage: 20~80VAC/30-110VDC

Protective function: Over voltage, over current, tracking error, over proof

Signal input: Support PUL/DIR and CW/CCW modes (difference)

Compatible : 5~24V signal (Don't need a resistor)

Type of cooling: Air-cooling

Logic Signal Current: 7-16 Ma

Power Supply parameter:

Model: S-400-60

Rated Load:400W(Max Load)

Input Voltage:AC100-120V/200-245VAC 50/60Hz

Output Voltage:DC60V(Constant Voltage)

Output Current:6.6A

Conversion Efficiency:more than 80%

Working temperature:-30~+50°C

IP code:IP20

Q&A

Q:What are the key features of the closed loop stepper motor driver kit?

A:The closed loop stepper motor driver kit boasts features such as precise position control, real-time response, and automatic error correction. It ensures reliable and accurate motor performance even in challenging environments.

Q:What are the applications of the closed loop stepper motor driver kit?

A:The closed loop stepper motor driver kit finds applications in various industries requiring precise and reliable motion control, such as CNC machining, 3D printing, robotics, automation, and medical equipment.

Q:How does the closed loop stepper motor driver kit compare to traditional open-loop systems?

A:Unlike traditional open-loop systems, which rely solely on command signals without response, the closed-loop kit provides real-time position response, resulting in improved accuracy, reliability, and stability.
