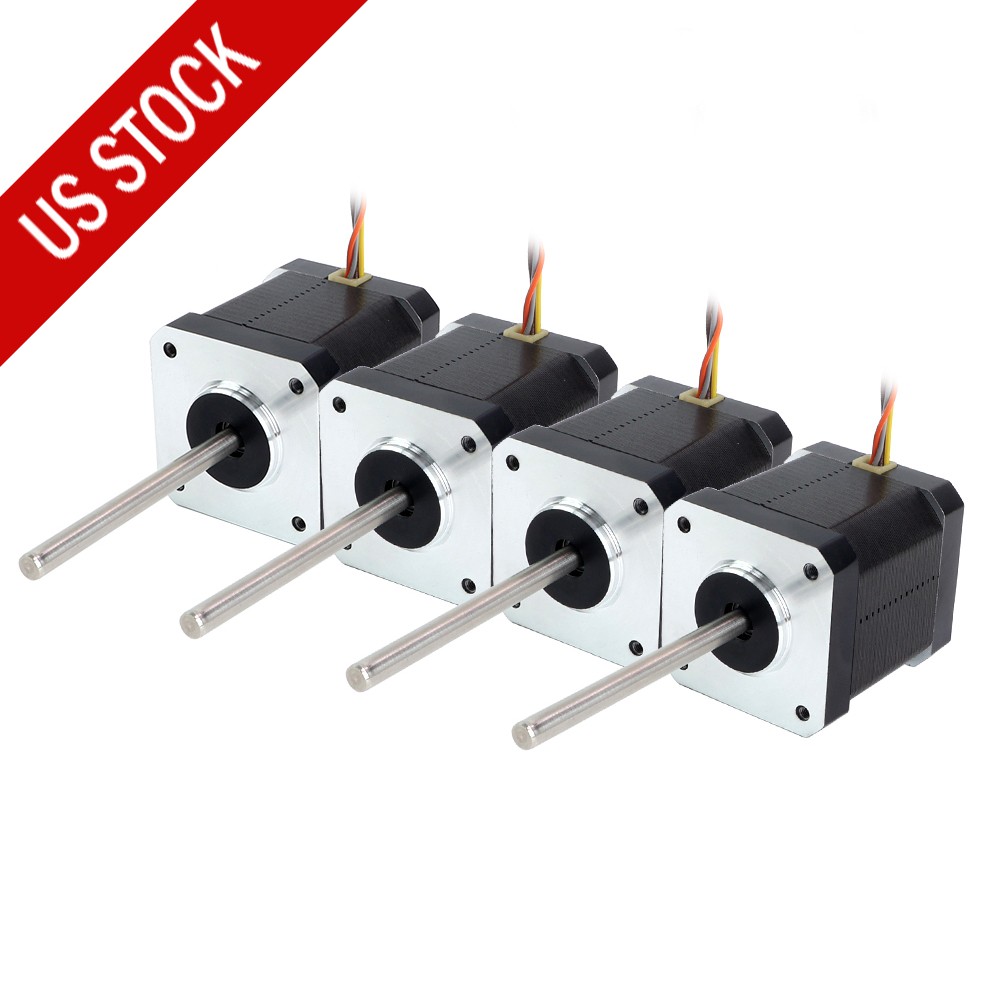

Nema17 High Temp Stepper Motor 55Ncm(78oz.in) 55mm Round Shaft 17HS19-2504S-H-V1:
$79.00
This NEMA 17 stepper motor features a 1.8-degree step angle, a holding torque of 55Ncm(77.93oz.in), and draws 2.5A per phase. It comes equipped with a 55mm round shaft and 1m cables.
This motor boasts an insulation class of H, making it suitable for operating environments up to 180°C. It is specially designed and manufactured for 3D printers.
Package includes: 1 x 17HS19-2504S-H-V1
Package includes: 4 x 17HS19-2504S-H-V1
Electrical Specification- Manufacturer Part Number: 17HS19-2504S-H-V1
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 55Ncm(77.93oz.in)
- Rated Current/phase: 2.5A
- Phase Resistance: 1.1ohms
- Inductance: 1.6mH±20%(1KHz)
- Insulation Class: H 180C(356F)
- Frame Size: 42 x 42mm
- Body Length: 48mm
- Shaft Diameter: Φ5mm
- Shaft Length: 55mm
- Shaft Type: Round
- Number of Leads: 4
- CableLength:
