Nema 17 Geared Stepper Motor w/Ratio 5:1 Planetary Gearbox L=40mm 1.58A Φ8mm For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

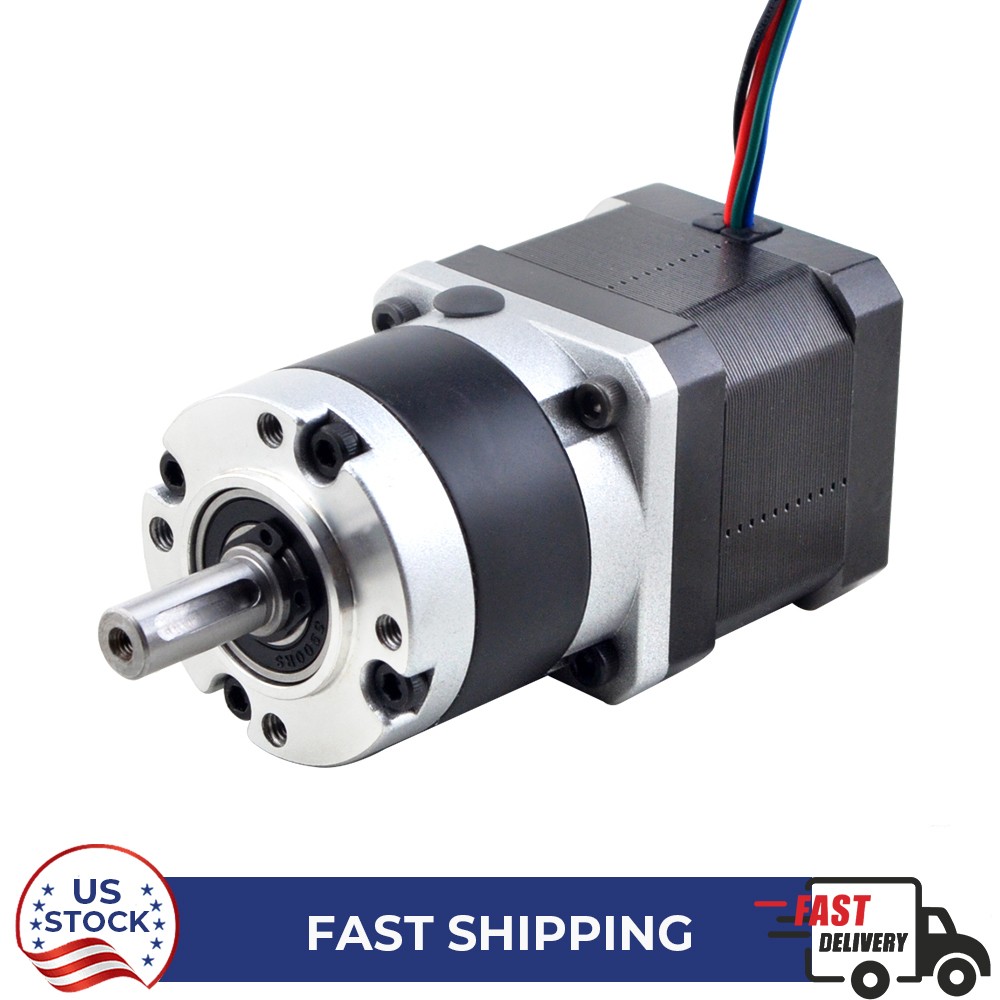

Nema 17 Geared Stepper Motor w/Ratio 5:1 Planetary Gearbox L=40mm 1.58A Φ8mm:
$41.46

This Nema 17 size stepper motor is equipped with MG series high precision gearbox. The gear ratio is 5:1 and the Max. backlash is 30 arc minutes. It's an excellent choice for applications that require good accuracy but low cost.

As MG series gearbox built-in shaft coupling, so you can change the motor or gearbox easily.

Electrical Specification

• Manufacturer Part Number: 17HS15-1584S-MG5
• Motor Type: Bipolar Stepper
• Holding Torque without Gearbox: 36Ncm(51.0oz.in)
• Rated Current/phase: 1.58A
• Phase Resistance: 1.65ohms
• Inductance: 3.2mH±20%(1KHz)

Gearbox Specifications

• Gearbox Type: MG Planetary
• Gear Ratio: 5:1
• Efficiency: 90%
• Backlash at Torque: 9Nm(79.66lb-in)
• Noise: <=55dB
• Waterproof Rating: IP54
• Lifetime: 20000hours

Physical Specification

• Frame Size: 42 x 42mm
• Motor Length: 39mm
• Gearbox Length: 40mm
• Output Shaft Type: Key way
• Output Shaft Diameter: Φ8mm
• Output Shaft Length: suitable bracket is ST-M12.

  ---

  ---



  ---



  STEPPERONLINE 1-5PCS Nema 17 Stepper Motor 60oz.in 38mm 1.5A for DIY 3D Printer

  $35.99




  ---



  NEMA17 Stepper Motor 42x34mm, 1.8°, IP56, New - Selling in Lots of 10

  $38.00




  ---



  Nema 17 Geared Stepper Motor w/Ratio 5:1 Planetary Gearbox L=40mm 1.58A Φ8mm

  $41.46




  ---
