NIB - Square D - JDA36200 - Molded Case Circuit Breaker - 200A, 3-Phases, 600V:
$562.83

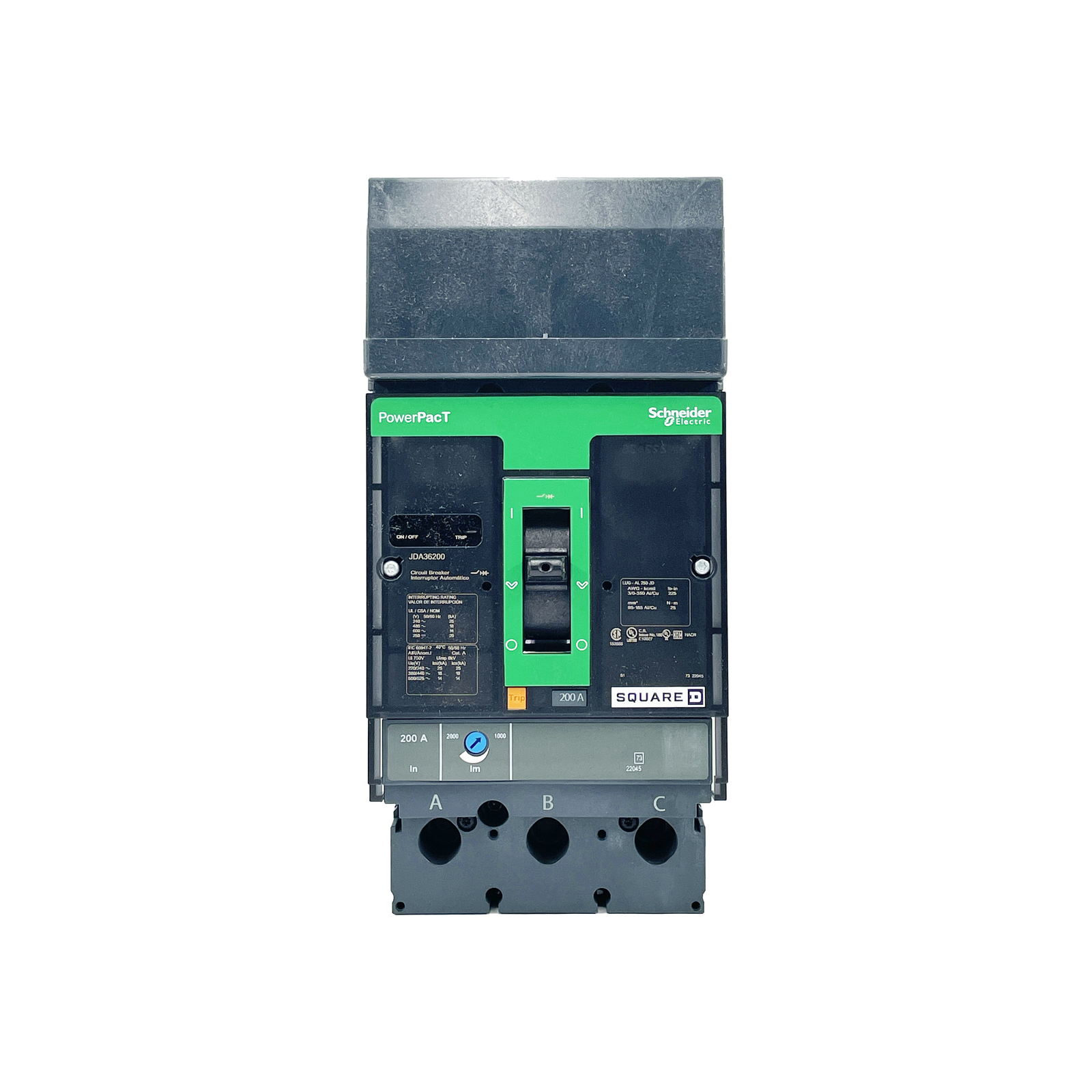

NIB - Square D - JDA36200 - 200A 3-Pole Circuit Breaker

The PowerPact J circuit breaker is designed for power distribution, featuring a thermal-magnetic trip unit. It provides overload and short-circuit protection and complies with various international standards.

Product Name: PowerPact J
Product Type: Circuit breaker
Device Application: Distribution
Line Rated Current: 200A
Number of Poles: 3P
Control Type: Toggle
Breaking Capacity:
25 kA at 240 V AC 50/60 Hz UL 489
18 kA at 480 V AC 50/60 Hz
14 kA at 600 V AC 50/60 Hz
20 kA at 250 V DC
Rated Operational Voltage [Ue]: 600 V AC 50/60 Hz IEC 60947-3
Network Frequency: 50/60 Hz
Rated Service Breaking Capacity [Ics]:
25 kA at 220/240 V AC 50/60 Hz IEC 60947-2
18 kA at 380/440/415 V AC 50/60 Hz IEC 60947-2
14 kA at 500/525 V AC 50/60 Hz IEC 60947-2
20 kA at 250 V DC IEC 60947-2
20 kA at 500 V DC IEC 60947-2
Rated Impulse Withstand Voltage [Uimp]: 8 kV IEC 60947-2
Trip Unit Technology: Thermal-magnetic
Magnetic Tripping Current: 2000 A
Magnetic Hold Current: 1000 A
Continuous Current Rating: 80%
Rated Insulation Voltage [Ui]: 750 V IEC 60947-2
Protection Type: Overload and Short-circuit protection
Suitability for Isolation: Yes IEC 60947-2
Utilisation Category: Category A
AWG Gauge: AWG 3/0...350 kcmil aluminium/copper terminals
Local Signalling: Switched off (OFF) 1 trip indicator green
Mounting Mode: I-Line bracket
Mounting Support: Bracket
Electrical Connection: I-Line connection, line; Lugs, load
Terminal Identifier: AL250JD
Long Time Pick-Up Adjustment Range: 0.25...1 x In
Tightening Torque: 221.27 lbf.in (25 N.m) 0.15...0.29 in² (95...185 mm²) (AWG 3/0...350 kcmil)
Number of Slots:
2 auxiliary switch OF plug-in
1 alarm switch SD plug-in
1 overcurrent trip switch SDE plug-in
1 voltage release MN or MX plug-in
Power Wire Stripping Length: 0.98 in (25 mm)
Phase Connection: ABC
Communication Interface: Modbus, Ethernet
Circuit Breaker Application: HACR rated
