NEW Linear Rail Guide MGN12 450-1000mm Shaft Rod + MGN12H Bearing Slide Block:
$32.99

NEW Linear Rail Guide MGN12 450-1000mm Shaft Rod + MGN12H Bearing Slide BlockDetails:【Linear Rail Spec】- MGN12 450mm/700mm/800mm/900mm/1000mm linear guide rail hole distance is 25mm, MGN12H carriage block hole distance is 20mm, and the bolt hole is M3. Linear rail kit size conforms to International Standard, choose with confidence.【Stable Precision】- MGN12H rails carriage blocks adopt the Gothic four-point contact design, so the force is uniform, ensuring the high rigidity and high precision. The guide rail slider has the function of self-aligning, which can achieve long-lasting and stable UM-level precise positioning.【Low Friction】- Linear rails are made of high-quality alloy steel, and the slider has low resistance, strong stability, durable and no failure during operation. Note: The guide rail may have a tolerance of ±1mm, but it does not affect the use.【Widely Used】- MGN12H linear rail kit is suitable for various occasions, convenient and quick. Applied to 3D printers, industrial machining centers, CNC machines, medical equipments, robot arms and other automation linear motion measurement equipments.【Excellent Service】- 12 months warranty. Rails have been double inspected before on market, and all items ship from the USA.Features:
1. Small size and light weight, especially suitable for small mechanical equipment
2.The linear rail and slider are made of high quality stainless steel. Slides with ball bearings - small contact surface, fast heat dissipation, low friction and fast movement. Only a little power to make the lathe run, which can significantly reduce the power consumption of the machine.
3.The slider can bear the load in four directions at the same time, and the load can be beared evenly in the direction of the parallel contact surface, ensuring high precision during operation.Specifications:
Model: MGN12H
Rail Material: bearing steel
Surface Material: electroplating (chrome plating)
Slider Material: stainless steel

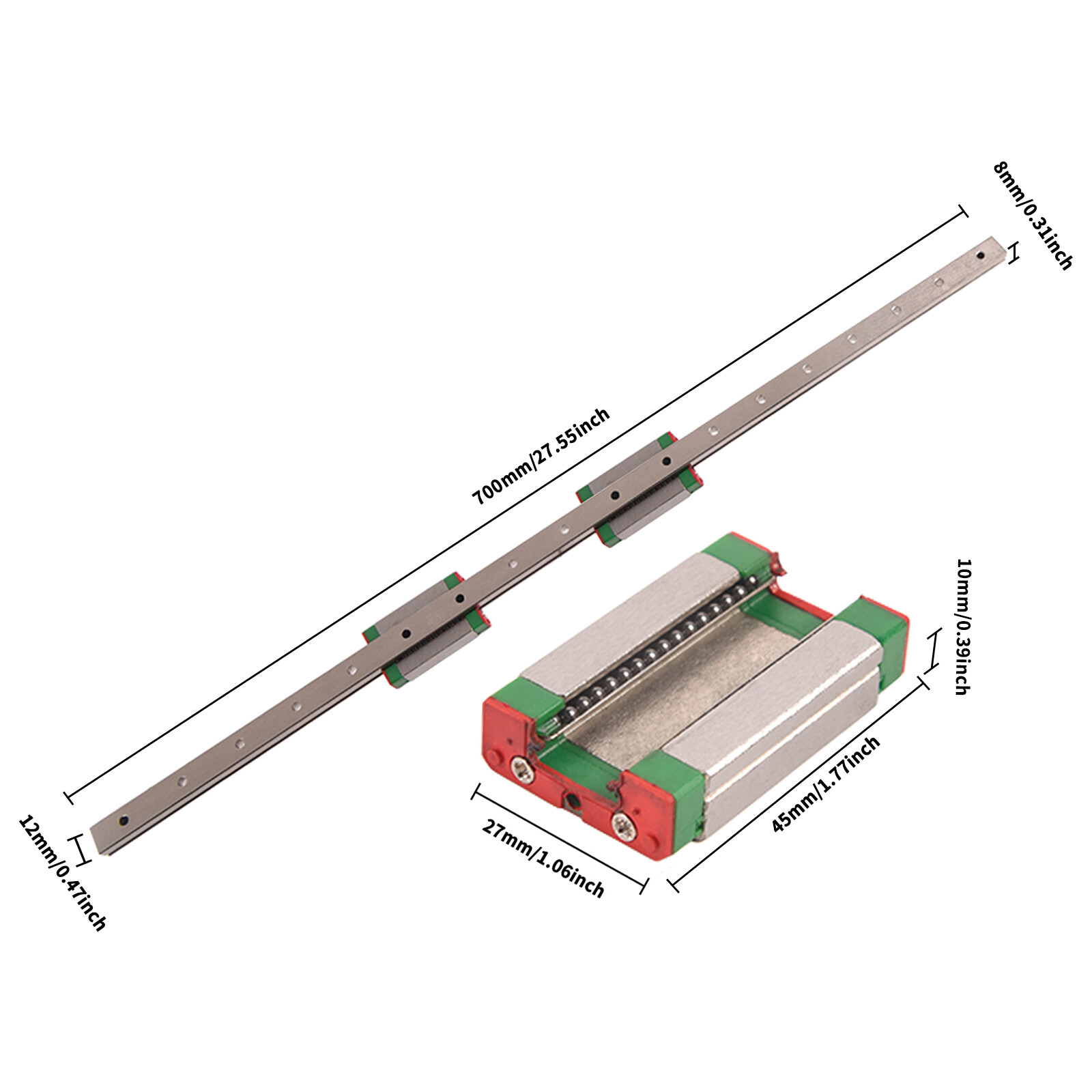

Rail Length: 450mm/700mm/800mm/900mm/1000mm
Rail Width: 12mm/0.47inch
Rail Height: 8mm/0.31inch
Rail Hole Distance: 25mm/0.98inch
Rail & Slider Combination Height: 13mm/0.51inch
Slider Height: 10mm/0.39inch
Rail Bolt: M3*8
Slider Thread Hole: M3*3.5Package Includes:
1 x Linear Guide Rail
1 or 2 x Slide Block
