NEW Electroid SSB-34-6-6-24V In-Line Nema34 Electromagnetic Brake 24volt - Servo:
$335.00

Item Specifics:

New Electroid SSB-34-6-6-24V

In-Line Nema34 24vdc

Electromagnetic Brake/Clutch

3/8\" dia. Input bore (w/ Key),

3/8\" dia. Ouput Shaft (w/ Flat)

Item Description:

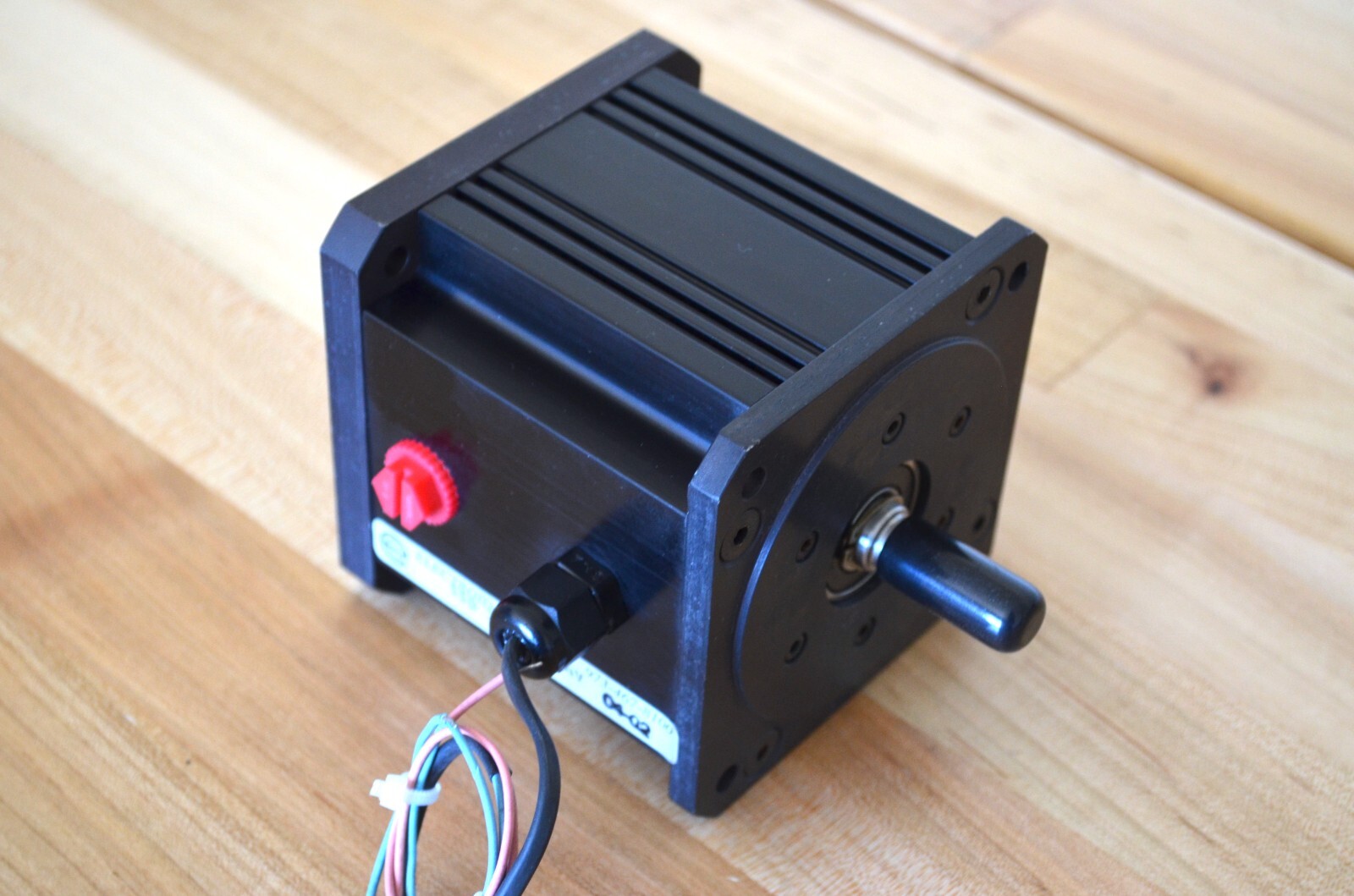

This is a new Electroid nema34 inlinebrake

that is in perfect working condition.

Inputshaft diameter is 3/8\".

Notes from the Manufacturer:
Electroid SSB Brakes:

Electroid\'s Model SSB Brakes were created as a solution to braking applications on stepper/servo motors. Compact, powerful, and with zero backlash, they are the standard for front-end stepper/servo motor brakes. The Failsafe Brake design offers a high degree of safety, even during a power failure; the simple \"plug-in\" design incorporates a torsionally rigid coupling to accept misalignment. The dual bearings allow greater overhung loads created by drive belt pulleys. chain sprockets and gearheads. The zero backlash armature permits the encoder to read exact positioning and the torsionally rigid coupling allows for misalignment of the motor shaft without putting stress on the dual output bearings. The permanent magnet brake provides extremely fast response times and very low inertia.

FEATURES:

Permanent magnet brake
Fast response time with zero backlash
IP65 splash-proof and dust proof protection
High torque output
Torsionally rigid coupling
High speeds, low inertia
Dual preloaded sealed bearings
Black anodized aluminum housing
24 and 90 VDC available

OPTIONS:

MS connectors
Special configurations
Bi-stable brakes
Spring-set Failsafe Brakes
Higher torques available

BRAKE DIMENSIONS

Model No.A
in.(mm)B
in. (mm)C
in. (mm)D
in. (mm)E
in (mm)F
in (mm)H
in. (mm)L
in. (mm)SSB-23-4.250 (6.4)0.78 (20)1.500 (38)0.06 (1.5)0.20 (5.1)2.625 (66.7)2.27 (57.7)2.90 (73.7)SSB-23-6.375 (9.5)0.78 (20)1.500 (38)0.06 (1.5)0.20 (5.1)2.625 (66.7)2.27 (57.7)2.90 (73.7)SSB-34-6.375 (9.5)1.16 (30)2.875 (73)0.06 (1.5)0.22 (5.6)3.875 (98.4)3.42 (86.9)3.44 (87.4)SSB-34-8.500 (12.7)1.16 (30)2.875 (73)0.06 (1.5)0.22 (5.6)3.875 (98.4)3.42 (86.9)3.44 (87.4)SSB-42-8.500 (12.7)1.35 (35)2.185 (55.5)0.1 (2.5)0.28 (7.1)4.95 (125.7)4.38 (111.3)4.52 (114.8)SSB-42-10.625 (15.9)1.35 (35)2.185 (55.5)0.1 (2.5)0.28 (7.1)4.95 (125.7)4.38 (111.3)4.52 (114.8)

BRAKE SPECIFICATIONS

Model No.Static Torque lb-in
(Nm)Inertia lb-in2
(kg-cm2)Response TimeInput Power WattsMax. Speed RPMMax. Static Overhung Load
@ 1/2 of \"B\" Dim. lb (kg)On msOff msSSB-23-411 (1.2).046 (.135)4388,00080 (36.3)SSB-23-611 (1.2).046 (.135)4388,00080 (36.3)SSB-34-622 (2.5).097 (.284)75127,500172 (78)SSB-34-822 (2.5).097 (.284)75127,500172 (78)SSB-42-8106 (12)1,302 (3.81)3013185,000310 (140.6)SSB-42-10106 (12)1,302 (3.81)3013185,000310 (140.6)
