NEW Eaton CHF230 Circuit Breaker 30Amp 120/240V 2-Poles NOS For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

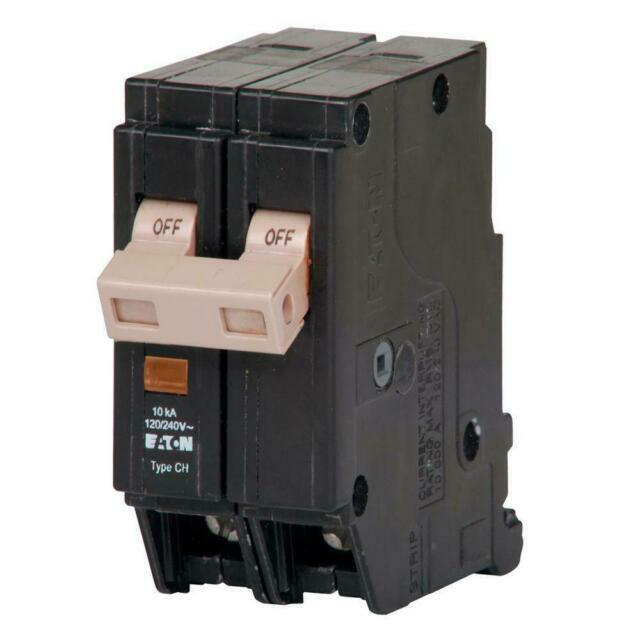

NEW Eaton CHF230 Circuit Breaker 30Amp 120/240V 2-Poles NOS:
$22.49

SpecificationsAmps:30ACountry of Origin:Dominican Republic - Subject to changeType:Thermal Magnetic BreakerMounting:Loadcenter, Plug-OnLine Terminal:Plug-On ClipLoad Terminal:LugPoles:2PVoltage:120/240V ACRating - kA IR:10Dimensions:W: 1.5 in.

---

---

---

NEW Eaton CHF230 Circuit Breaker 30Amp 120/240V 2-Poles NOS

$22.49

---

New Eaton BJ2200 200 Amp Double Pole Circuit Breaker 120/240 V

$155.00

---

NEW EATON PDG2 PDG23G0060TFFL 3 Pole 60 Amp 600V Circuit Breaker NTO

$350.00

---
