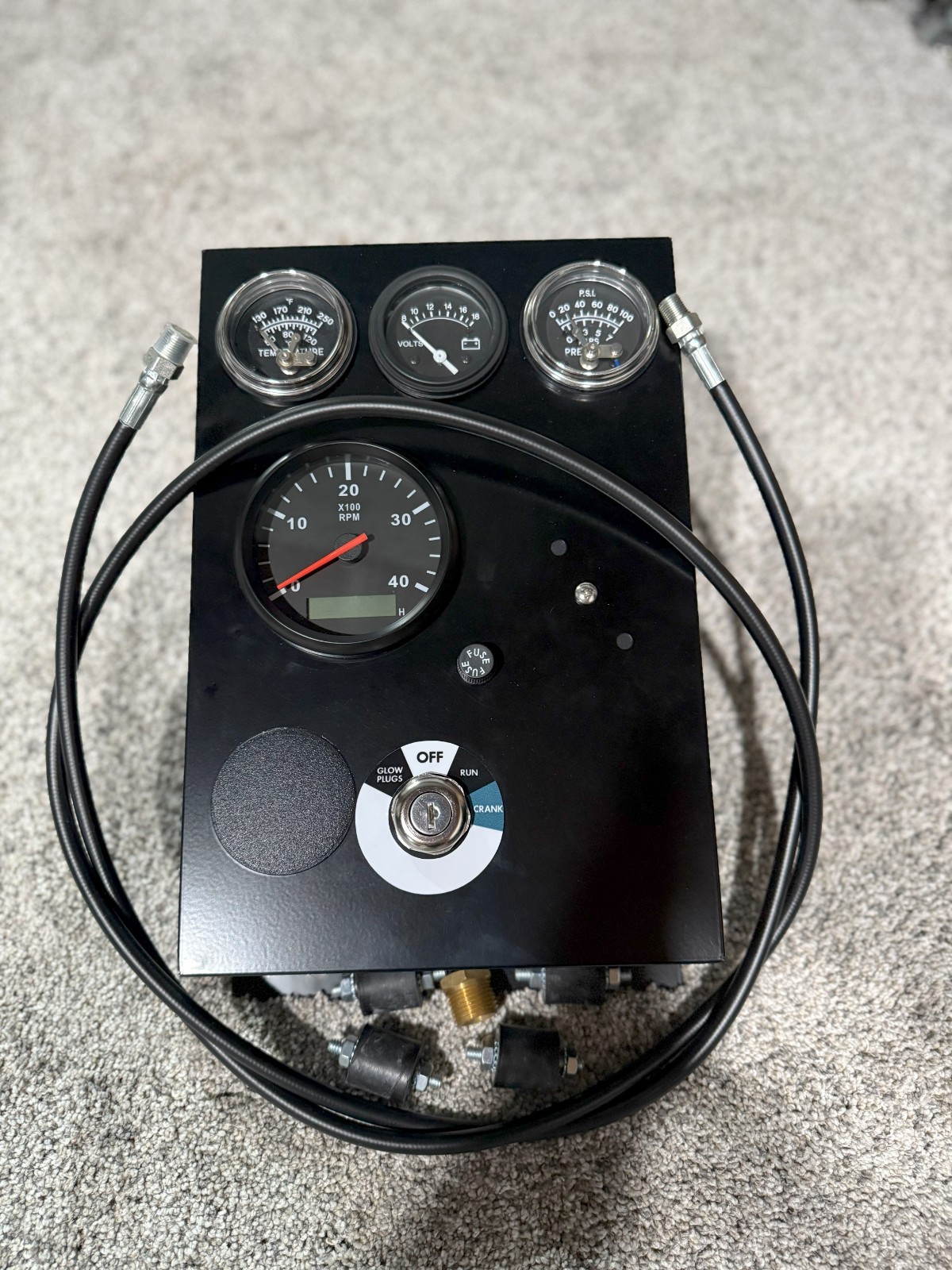

Murphy W0168 Engine Control Shutdown Panel by APS For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Murphy W0168 Engine Control Shutdown Panel by APS:
$590.00

Upgraded APS Mfg. FW MURPHY ENOVATION CONTROLS, ANALOG CONTROL PANEL
PART# 30700009
MODEL# W0168
12V or 24V PANEL
The Atlantic Process Systems version (upgraded to included APS SMART Relay) W0168 panel kit is a universal-fit instrument panel for most industrial engines. Includes Switch Gauge protection for low engine oil pressure and high coolant or high oil temperature. The W0168 has a start/stop key switch with Glow Plug option. Uses a terminal strip for efficient field connections.
Panel kit includes:

APS SMART Relay which replaces and improves upon the Murphy 117, 518 and 760 Magnetic Switches

Features of the APS SMART Relay Works on 12v or 24v power 10-amp rating 1/4" spade Male quick connects Eliminates the relay push and hold button on startup 5, 10, 15, or 20 second selectable delay for fuel or oil shutoff Mountable in any direction Water Resistant

Low Lube Oil Pressure Switch Gauge w/ Oil pressure hose
High Coolant/Oil Temperature Switch Gauge
Ignition key switch for glow plugs/start/stop
Voltmeter 8-18v
Provisions for additional gauges such as irrigation pump pressure, or engine oil temperature
0-4000 rpm electronic tachometer with digital hour meter.
Mounting pads and keys
Documentation and guide

Next-day shipping is available on orders received before 3:00 PM CST, Monday through Friday. Orders placed after the cutoff will ship the next business day. Please note, we are closed on weekends and holidays.

Before ordering, please confirm this is the correct panel for your application. If you need help verifying, our experienced staff is available to assist with sales, technical support, and service.

We’re happy to answer any questions you may have. If you don’t see the item you’re looking for, contact us and we’ll be glad to check availability.

Thank you for visiting our listing!
