Monport 6W Diode Laser Marking Machine Electric Lifting Laser Engraver Handheld For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Monport 6W Diode Laser Marking Machine Electric Lifting Laser Engraver Handheld:
$329.99

Monport 6W Diode Portable Handheld Laser Marking Machine Lightweight Engraver US

New Official Monport 6W Handheld Diode Laser Engraver, Portable Handheld Laser Engraving Machine,0.01mm High Precision 5000mm/s High Speed Laser Marking Machine for Wood, Leather, Cardboard, Kraft, Aluminum, Stainless Steel and More

DIMENSION & SPECIFICATIONS

Material of Machine: Aluminum alloy

Power Adapter Input: AC 100-240V 50/60Hz 1.7A DC;

Power Adapter Output: 12V-4A 48W

Laser Power: 6W

Laser Wavelength: 450nm

Cutting Depth: 6mm

Engraving Precision: 0.05mm

Preview Speed: 17000mm/s

Lifespan: 10000+Hours

Laser Source: One diode laser with FAC

Working Area: 100*100mm

Resolution: 3.3K

Engraving Speed: 600mm/s

Support Systems: Windows; MAC; Linux

Support Format: jpg, bmp, png, dxf, svg, ai, tiff, etc

Support Languages: German; Portuguese; French; English; Italian; Spanish

Engraving Angle: 0~360°

Connection: Wi-Fi, USB, APP

Continuous Working Hours: Not More than 7 hours

Applicable Materials: engraving or cutting on wood, acrylic, leather, cloth, metal, ceramics, etc

Preview Mode: Outline Preview

Safety Certifications: CE; FCC; FDA; RoHS

Product Volume: 205mm*179mm*249mm

Net Weight: 2.55kg

Gross Weight: 3.9kg

NANO HANDHELD LASER ENGRAVER FEATURES

⭐️【STABLE AND RELIABLE】Monport laser engraver incorporates several industrial-grade technologies into home-use products, making them more stable and affordable compared to similar products. With a lifespan of over 10,000 hours and reliable customer support, you can use it with confidence.

⭐️【COMPACT AND PORTABLE】Weighing only 4.8 lb overall, with the handheld part under 3 lb, this 6w portable laser engraver is easy to carry and use anywhere, allowing for unrestricted engraving.

⭐️【FAST AND PRECISE ENGRAVING】Integrated with Diode Lasers with FAC, this handheld laser engraver achieves engraving speeds up to 800mm/s and precision down to 0.05mm, enabling the creation of intricate details.

⭐️【ELECTRIC LIFT STAND】The electric lift stand can easily adjust the height of the marking head, keeping it at the optimal focal position to accommodate objects of different sizes, ensuring that each marking achieves the desired effect.

⭐️【DUAL RED LIGHT FOCUS】The dual red light focusing system is superior to the single red light focusing system in terms of accuracy, ease of operation, visibility and efficiency.

⭐️【MULTI-ANGLE & CURVED AND SLOPED SURFACE ENGRAVING】The laser machine can work with a rotary axis to engrave cylindrical and irregularly shaped objects and can be equipped with an extension rod for engraving larger objects. Moreover, the laser module can rotate to handle angled engraving.

⭐️【SET UP IN SECONDS】The plug-and-play design of the engraving machine allows you to set up in seconds and then start engraving with just a click on your smartphone or PC. The 17,000mm/s outline preview helps you quickly confirm your design.

⭐️【SMART CONTROL VIA PHONE AND PC】The laser cutter machine is compatible with Windows, macOS, and Linux. Supported software includes LaserGRBL and LightBurn. Supports various file formats such as JPG, BMP, PNG, DXF, SVG, AI, and TIFF.

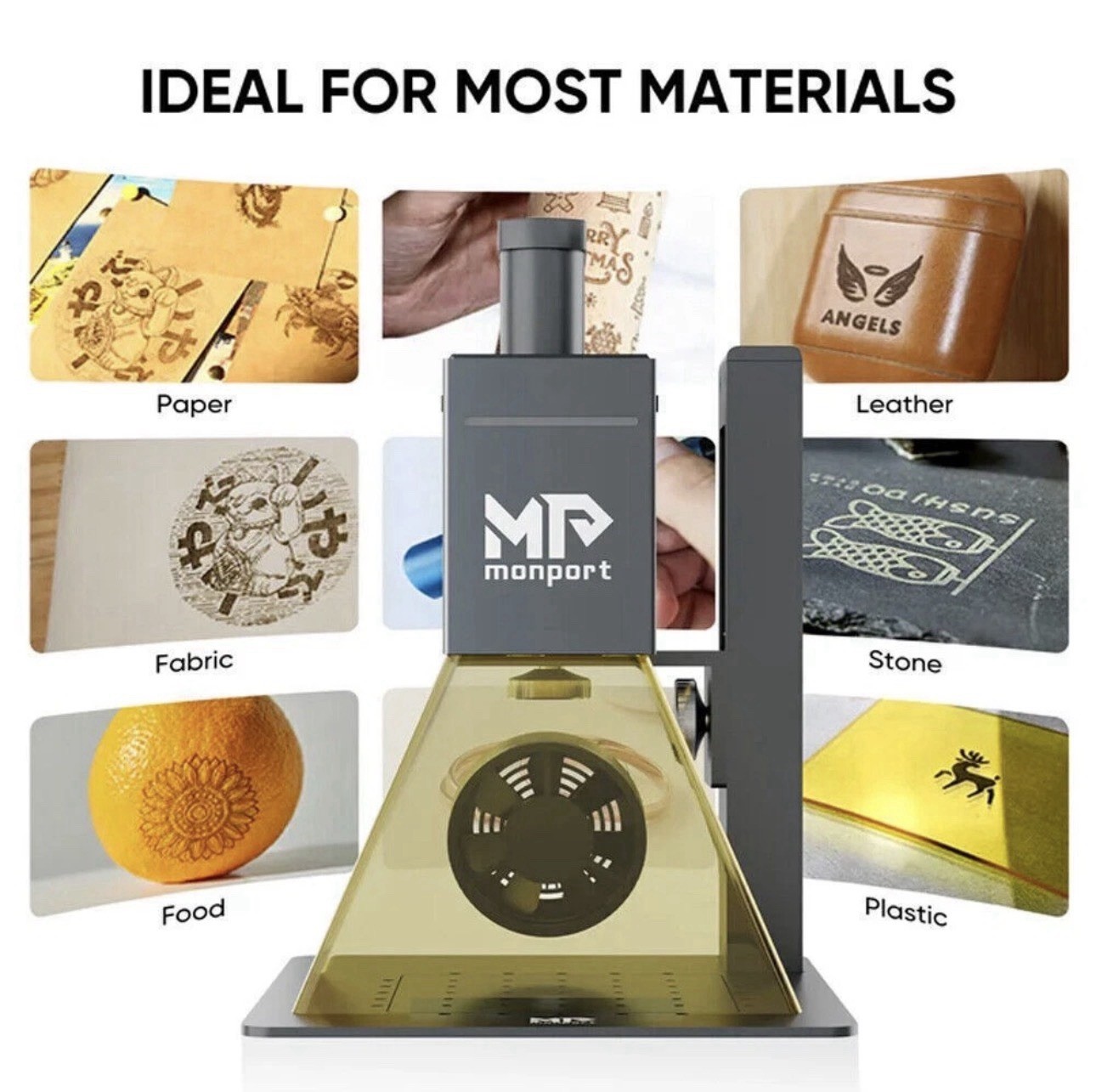

⭐️【ENGRAVE MOST MATERIALS】The laser marking machine is capable of engraving a wide range of materials including cardboard, wood, leather, anodized aluminum, and brushed stainless steel (not suitable for gold, silver, copper, or brass). It can cut wood, paper, and leather up to 0.23 inches thick.

⭐️【MULTIPLE SAFETY PROTECTIONS】This laser engraver comes with a protective shield and safety goggles to block the harmful laser light. It is equipped with built-in flame sensors, limit switches, data transmission protection, and position detection to ensure safe operation.

⭐️【HOME & BUSINESS APPLICATIONS】Ideal for marking and engraving metal parts, plastic components, and electronic parts, creating high-precision signage, engraving fine details on jewellery and watches, crafting unique art pieces and decorations, and personalizing gifts, trophies, and souvenirs.

PACKAGE LIST

Laser Module *1

Base Plate & Screws *4

Electric Lifting Bracket *1

L-shaped Connecting Plate *1

Protective Cover *1

Goggles *1

Positioning Clamps *2

Ruler *1

H2.5 Hexagonal Wrench *1

Thumb Screws *1

AC Cord/Power Adapter *1
