Mitsubishi NP-VNGA160402GA2 MBC020 CBN Inserts VNGA330.5 Hardened Steel NEW:
$75.00

Mitsubishi Materials DIAEDGE NP-VNGA160402GA2 Grade MBC020CBN Turning Inserts for Hardened Steel
SPECIFICATIONS- Manufacturer: Mitsubishi Materials (DIAEDGE)- Part Number (ISO): NP-VNGA160402GA2- Part Number (ANSI/inch): NP-VNGA330.5-GA2- Grade: MBC020 - Mitsubishi CBN (cubic boron nitride)- Edge Preparation / Geometry: GA2- Shape: 35 degree rhombic (V-style diamond), negative, 0 degree clearance- Inscribed Circle: 3/8 in (9.525 mm)- Thickness: 3/16 in (4.76 mm)- Nose Radius: 0.2 mm (0.008 in)- Tolerance Class: G - precision ground- Style: Centre hole, no chipbreaker, flat rake face- Insert Marking: MBC020, Mitsubishi mark, GA, 02 - all laser marked on the insert and shown in the photos- Manufacturer Code: RA2513ZATT5A5- Country of Origin: Thailand
SIZESmall precision inserts. A US quarter is included in the photos for scale.Judge the size from the coin rather than from a table.
APPLICATIONCBN - cubic boron nitride - is the second hardest cutting material afterdiamond, and unlike diamond it is chemically stable against iron. That makesit the material for HARD TURNING: finishing hardened steels at roughly HRc45-65, bearing steels, case-hardened and through-hardened components, toolsteels and chilled cast iron.
Hard turning with CBN often replaces a grinding operation. A single turningpass can hold the tolerance and finish a grinder would produce, on a lathe,with far less cycle time and no coolant-flood grinding setup.
The specification here says finishing, not roughing. A 0.2 mm nose radius,a flat precision-ground rake face and the acute 35 degree V shape are forlight passes, tight contours and fine surface finish - the acute cornerreaches into profiles a square or 80 degree insert cannot.
CONDITIONNew and unused. Cutting edges intact with no chipping, wear or edge damage.Inserts are in the original Mitsubishi Materials DIAEDGE cases.
QUANTITYPlease count against the photos and against the quantity stated in thislisting. Three sealed cases of this part number are shown.

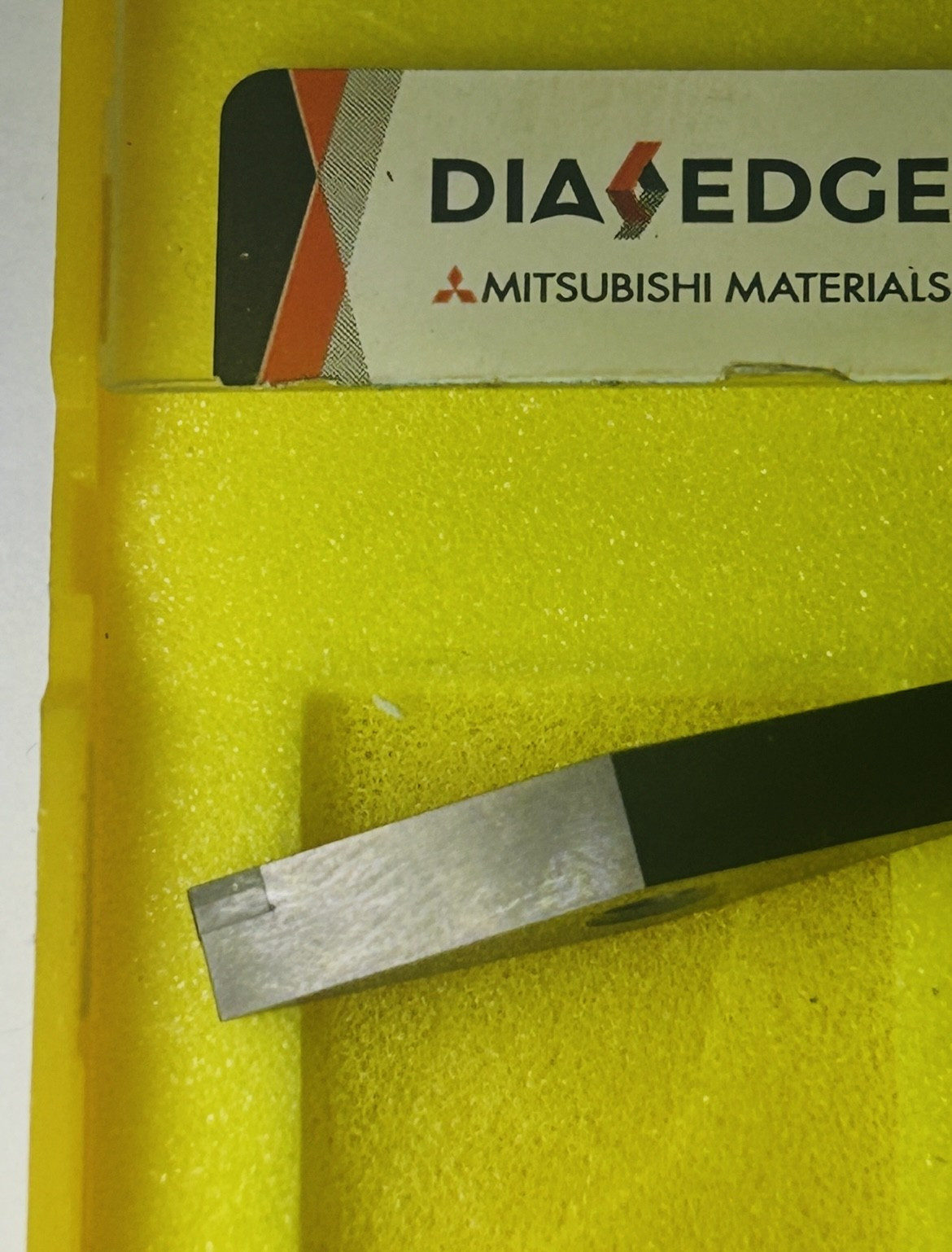

Please review all photos, as they are part of the description - the boxlabel, the insert in its case, and a close-up of the laser marking beside acoin are all shown. Ships securely packaged. Fast shipping from a smoke-freelocation. Message with any questions.
