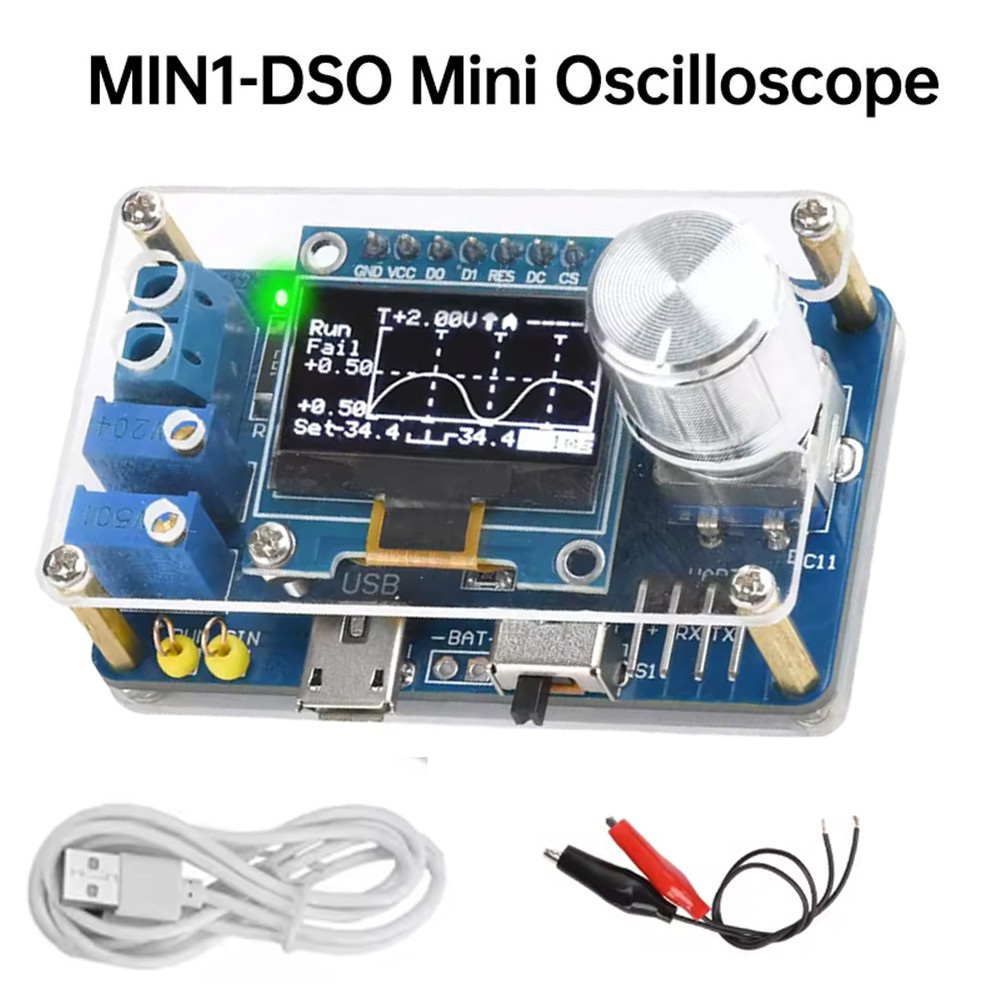

Mini Digital Oscilloscope Electronic DIY Kit STC DIY Soldering Practice Project:
$15.98
Product Details:Features1. Indicator light: usually the indicator light indicates that the sampling is running2. There are three trigger modes: automatic mode, normal mode and single mode.
3. Trigger slope: the trigger slope determines whether the trigger point is on the rising edge of the signal or falling.
4. Trigger level: For repeated signals, the trigger level can stabilize the display. For single signal, the trigger level can be captured
5. Save Settings: When you exit the setup interface, all the parameters of the setup interface and the main interface will be saved in EEPROM.
6. Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively.Specification
Supply voltage: DC 5V (micro usb)
Voltage range: 0~30V (need to adjust LSB)
Level sampling: 10kHz@100us/div
Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms,
10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us
Board size: 57*35mm
Finished size: 57*35*30mmPackage Includes
1 x DIY oscilloscope loose parts(With case)On Jul 25, 2025 at 00:02:13 PDT, seller added the following information:
