Microchip Technology RF MOSFET Transistors RF MOSFET ARF1501 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

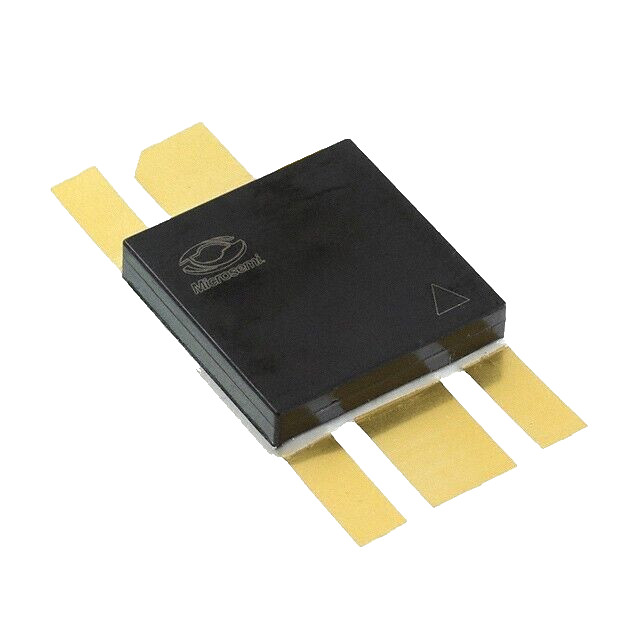

Microchip Technology RF MOSFET Transistors RF MOSFET ARF1501:
$315.95

Microchip Technology RF MOSFET Transistors RF MOSFET ARF1501Technology: Si Id - Continuous Drain Current: 30 A Vds - Drain-Source Breakdown Voltage: 1 kVOperating Frequency: 40 MHz Gain: 17 dB Output Power: 750 WMounting Style: Flange Mount Brand: Microchip Technology Channel Mode: EnhancementManufacturer: Microchip Product Category: RF MOSFET TransistorsTransistor Polarity: N-Channel

---

---

---

Microchip Technology DV164120 PICkit 2 PIC16F690 PIC Microcontroller Starter Kit

$69.00

---

Microchip Technology PICkit 2 Microcontroller DV164121 Starter Kit

$89.99

---

Microchip Technology RF MOSFET Transistors RF MOSFET ARF1501

$315.95

---
