MegaTest Q2 62 SRC Fanout PWA 100558 Rev 4 Vintage Semiconductor ATE Test Board:
$299.99
Vintage MegaTest semiconductor ATE fanout / interface assembly.

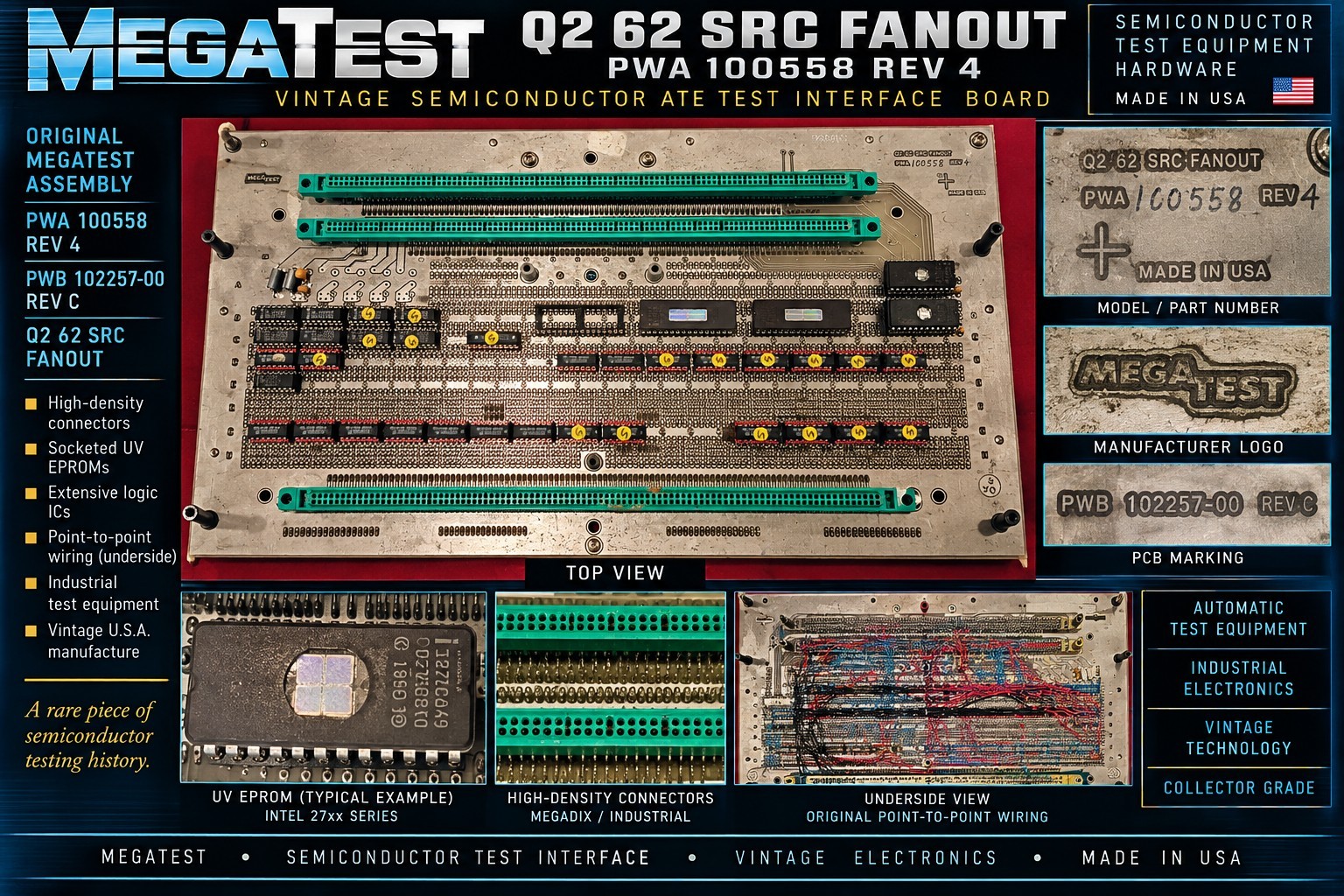

Board markings include:
• MEGATEST
• Q2 62 SRC FANOUT
• PWA 100558 REV 4
• PWB 102257-00 REV C
• MADE IN USA
Large specialized semiconductor test-equipment assembly featuring three high-density connectors, extensive IC population, socketed UV-erasable EPROMs and an exceptionally elaborate hand-wired underside.
The installed windowed EPROMs and other ICs remain with the board exactly as found. They have not been removed, erased or tested.
The underside retains a substantial amount of original point-to-point wiring associated with the board's specialized configuration. This wiring has intentionally been left intact.
This appears to be specialized MegaTest automatic test equipment (ATE) fanout/interface hardware used within a semiconductor testing system.
Excellent piece for a vintage semiconductor equipment, ATE, industrial electronics or computer hardware collection.
Vintage used condition with normal cosmetic wear from age and previous industrial use. Please review all photographs carefully for exact components, wiring, connectors and condition.
Untested. No attempt has been made to power or electrically test the assembly.
Sold complete and intact as pictured. No components have been removed.
Rare surviving example of specialized American-made semiconductor test equipment.
