On eBay Now...Mean Well NDR-120-24 AC/DC Single Output Industrial DIN Rail Power Supply For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

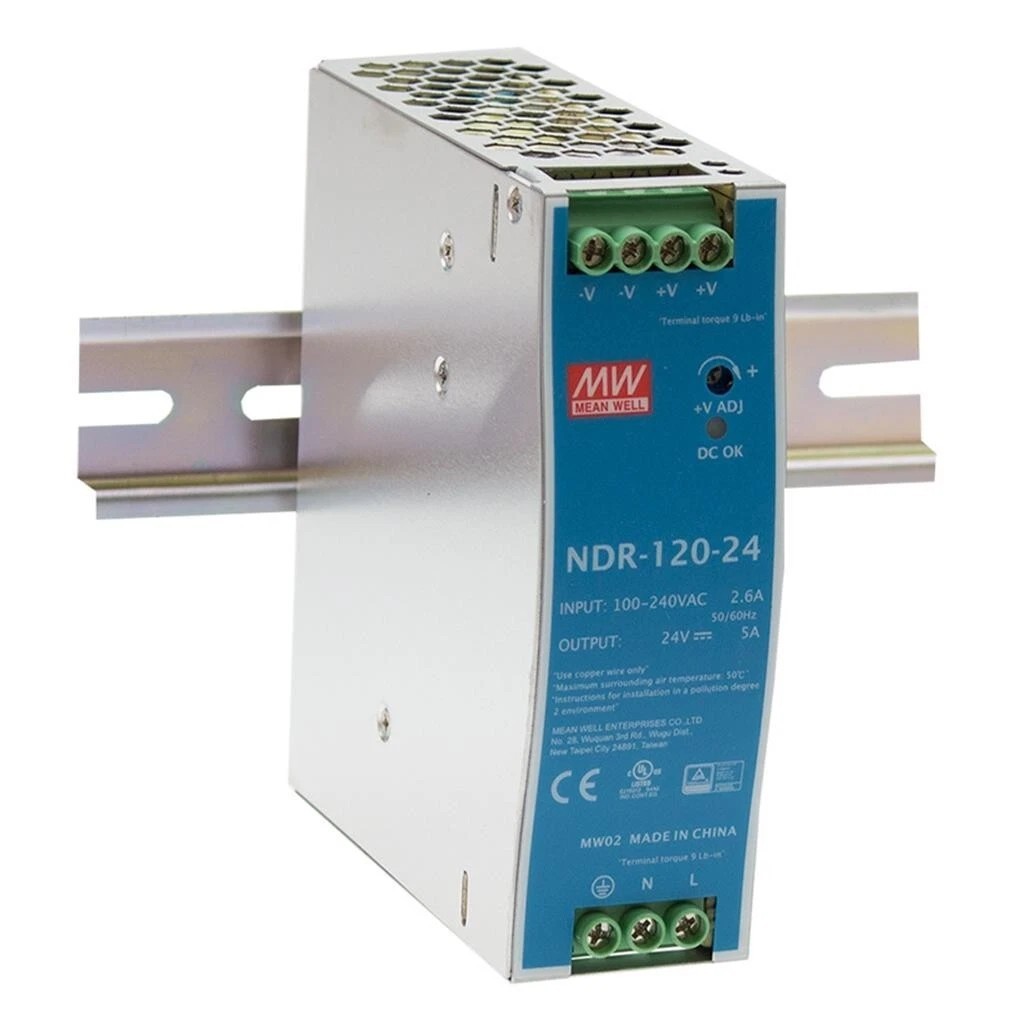

Mean Well NDR-120-24 AC/DC Single Output Industrial DIN Rail Power Supply:
$31.64
Single Output Industrial DIN Rail Power Supply 24 Volts 5 Amps 120 Watts24 Volts DC @ 5 AmpsSpecificationsOutput Power (W): 120Ripple & Noise (mV p-p): 120Load Regulation (±): 1%Line Regulation (±): 0.5%Efficiency: 88%Size (L x W x H) inches: 4.5 X 1.6 X 4.9Universal AC input / Full rangeProtections: short circuit, over voltage, overload, over temperatureCooling by free air convection100% full load burn-in testSpecification ValueOutput Voltage 24 VDCOutput Current 5 APower Rating 120 WInput Voltage 90 VAC to 264 VACInput Frequency 47 Hz to 63 HzOutput Connector Type Screw Terminal BlockAgency Approvals UL, CUL, TUV, CB, CE, EN, EACLow Power Source (LPS) NoPFC Function NoAdditional Output Voltages (VDC) N/AMaximum Input Current 2.25 AManufacturer Series NDR-120Efficiency 88%Minimum Operating Temperature -20°CMaximum Operating Temperature 70°CColor SilverWidth 4.93 in.Height 4.47 in.Depth 1.57 in.Number of Outputs 1Product Type DIN Rail Power Supply SMPS
MEAN WELL SE-350-12 Power Supply (Barley Used)
$30.00
Mean Well LRS-350-48 350.4W 48V 7.3A Single Output Switchable Power Supply
$29.64
Mean Well NDR-120-24 AC/DC Single Output Industrial DIN Rail Power Supply
$31.64
