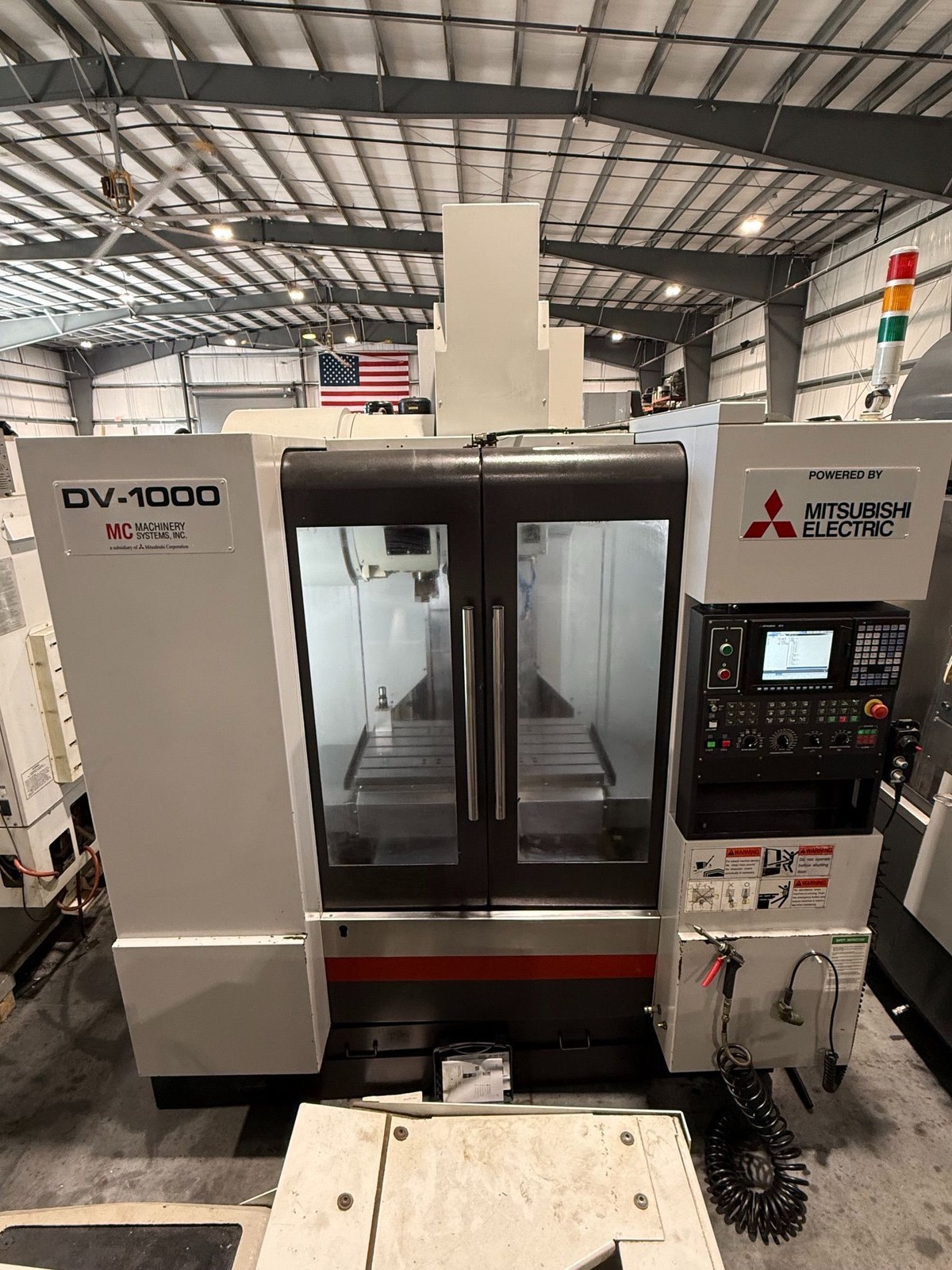

MITSUBISHI LITZ DV-1000 CNC Vertical Machining Center 2015’ #8495 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

MITSUBISHI LITZ DV-1000 CNC Vertical Machining Center 2015’ #8495:
$27500.00

MITSUBISHI LITZ DV-1000 CNC Vertical Machining Center 2015’ #8495 MITSUBISHI LITZ DV-1000 CNC Vertical Machining Center 2015’ #8495 Overview:

Type:

Vertical Machining Centers

Brand:

MITSUBISHI

Model:

DV-1000

Year:

2015

Stock #:

8495

specifications:

X axis

40.2\"

Y axis

22\"

Z axis

23.6\"

Power

15 hp

RPM

12,000 RPM

# ATC

Taper

Cat 40 Big Plus

Table-W

39.4\"

Table-L

22\"

# Axis

Weight

15000 Lbs.

Dimensions

90” x 88” x 103” H

Spec Sheet:

MITSUBISHI LITZ DV-1000 CNC Vertical Machining Center 2015’ #8495Reference # 8495Model # DV-1000Serial # 61J100257Year of manufacture- 7/2015’ Table size- 22” x 39.3” Maximum table weight- 1,650 Lbs. X axis travel- 40.2” Y axis travel- 22” Z axis travel- 23.6” Spindle taper- CAT-40 Spindle speed- 15,000 R.P.M. Spindle nose to table- 28.9” Max Maximum cutting feeds- 787 I.P.M. Rapids X,Y,Z- 1,417 I.P.M.

equipped with:

Machine cut primary plastic material Mitsubishi M70 CNC Control with M.P.G. manual pulse generator Probing option with Probe and Table touch off Rigid tapping Chip auger Spindle chiller Coolant system Leveling feetChip bucket 15 H.P. Spindle motor Machine is wired for 220 Volt / 3 phase / 60 H.Z. Machine weight- 15,000 Lbs. Machine dimensions- 90” x 88” x 103” H Machine location- F.O.B. Sarasota, Florida
