MEGA2560 PRO MINI ATmega2560-16AU CH340G Development Board:
$18.89

Unlock your creativity with the Arduino-Compatible MEGA2560 Pro Mini ATmega2560-16AU Development Board! This compact powerhouse (54mm x 38mm) mirrors the functionality of the popular Arduino Mega 2560, making it ideal for both embedded and standalone projects. With 54 digital I/O pins, 16 analog pins, and 256KB flash memory, it offers robust performance for any DIY enthusiast. The CH340G USB-UART interface and Micro-USB connectivity ensure easy programming and power options (6V to 9V recommended). Plus, enjoy free shipping from our Colorado facility! Elevate your project today! [Shop

Electronics for IoT, Prototyping & DIY

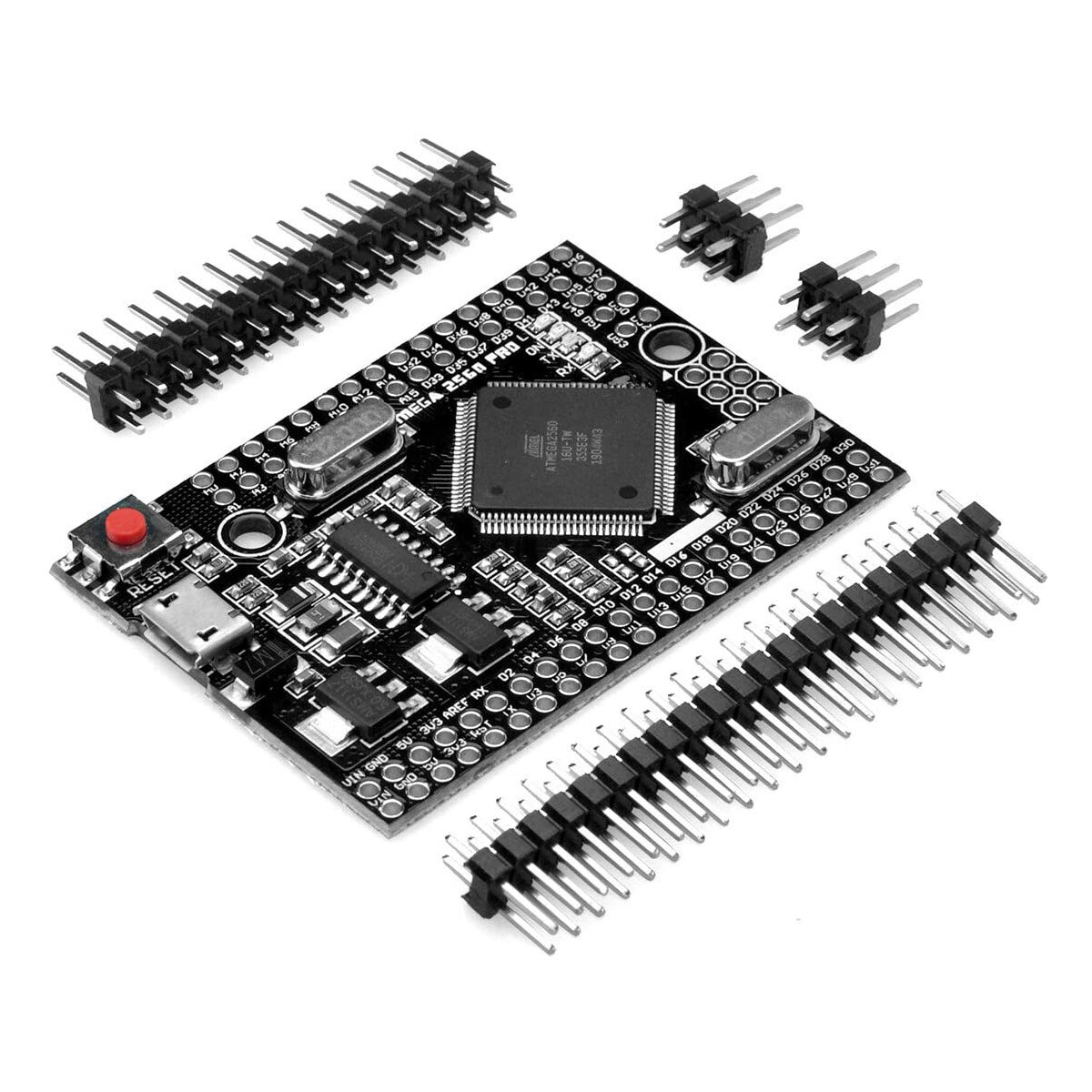

MEGA2560 PRO MINI ATmega2560-16AU CH340G Development Board

This MEGA2560 Pro Mini board is a low cost, miniature version of the popular Mega 2560 microcontroller and is compatible with the Arduino Mega 2560. It has a compact form factor of 54mm x 38mm (2.1" x 1.5") and is an excellent solution for developing embedded and stand-alone projects based on the ATmega2560.The Mega Pro Mini functionalities are identical to the Arduino Mega2560. It uses the original ATmega2560-16AU chip, a 16 MHz high-quality quartz resonator, and the CH340G USB-UART interface.It has a Micro-USB connector(universally used by most phones, including Android smartphones)to connect the microcontroller to the computer via the CH340 USB-UART adapter (the CH340 driver may need to be installed on your computer).Connectivity to the computer is provided through the common micro USB connector.The board can be powered directly through the Micro USB connector, or via the corresponding contacts on the board (Vin and GND). The onboard voltage regulator operates in a range of 6V to 9V DC. (The voltage regulator allows up to 18V input, however, we do not recommend exceeding 9V since the higher voltage can lead to overheating and damage the device.)The maximum current for the 5V and 3.3V outputs are 800mA each.MEGA2560 Pro Mini Features & Specifications:

CH340G USB-TTL converter replaces the Atmega 8U2/16U2
Microcontroller: ATmega2560
Power Out: 5V @ 800mA maximum
Input Voltage: 5V via Micro-USB connector, or 6V to 9V DC (recommended) viaVin & GND pins
Maximum Input Voltage: 18V
Power Consumption: 5V 220mA
Logic Level: 5V
Clock Frequency 16MHz
Digital I/O Pins: 54
Analog I/O Pins: 16
Flash Memory: 256 KB of which 8 KB is used by the bootloader
Data RAM Type/Size: EEPROM 8Kb
Data ROM Type/Size: SRAM 4Kb
Interface Type: ISP
Operating temperature: −40С to +85С
I/O connection spacing is 0.1" (2.54mm) grid spacing
Size: 54mm x 38mm (2.1" x 1.5")

Package Includes:

1x MEGA2560 PRO MINI ATmega2560
2x2, 2x3,2x16 &2x21 Pin Headers
Link to online installation and operation documentation

Get it faster! Stocks and ships from our US Colorado office for quick delivery.
Contact us for quantity/OEM pricing.
This board is licensed under Arduino's Creative Commons Attribution Share-Alike license.
We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
