MDC500-16 Power Diode Module – 500A 1600V – High Current Industrial Rectifier:
$75.00

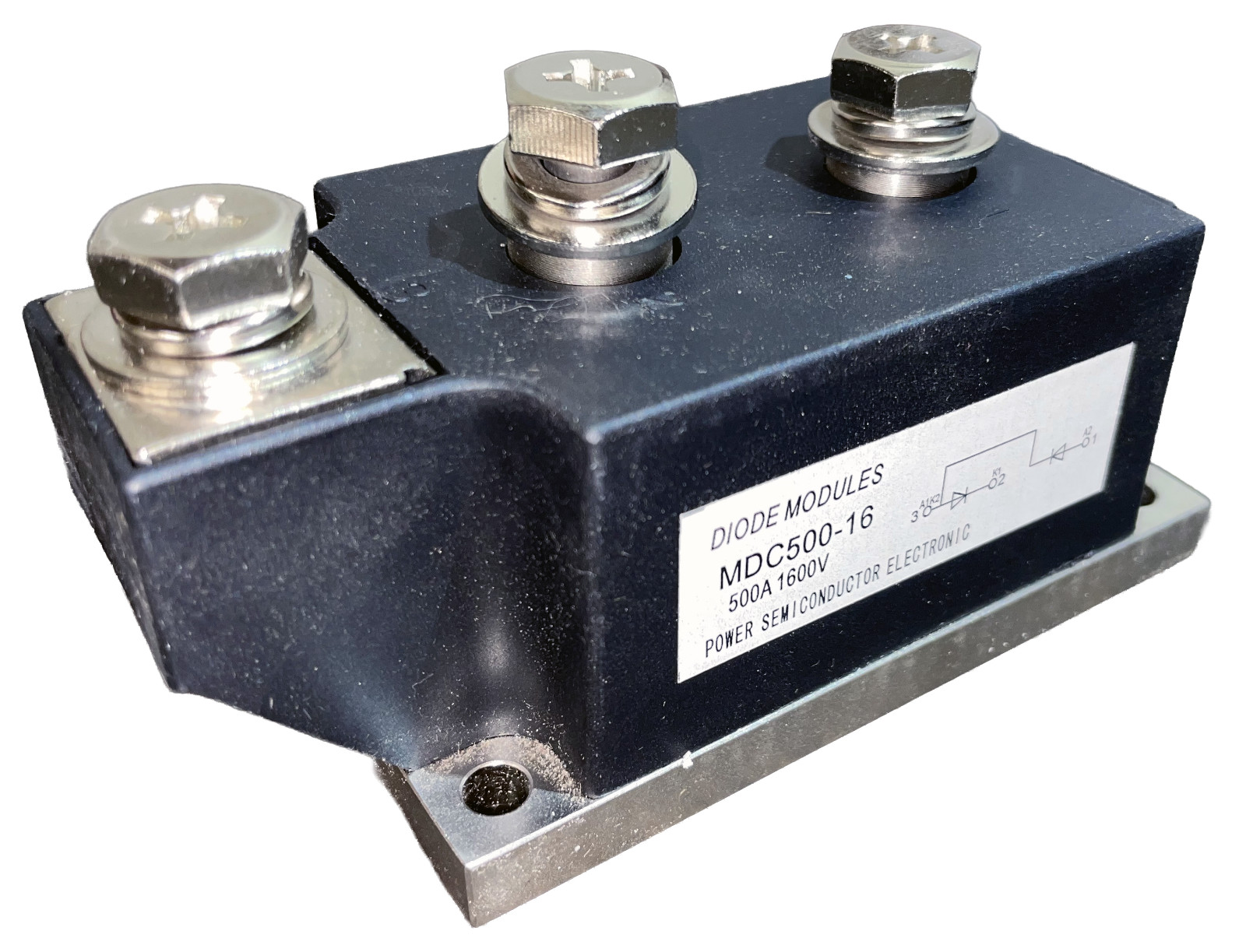

MDC500-16 Power Diode Module – 500A 1600V – High Current Industrial Rectifier
Up for sale is a MDC500-16 Power Diode Module, rated at 500 Amps and 1600 Volts, designed for demanding high-current and high-voltage industrial applications. This is a heavy-duty semiconductor module ideal for rectification, DC power supplies, battery charging systems, welding equipment, motor drives, and industrial MDC500-16
Type: Dual Diode Power Module
Current Rating: 500A
Voltage Rating: 1600V
Configuration: Dual diode module (see diagram on label)
Mounting Style: Baseplate mount (isolated module style)
Terminals: Heavy-duty threaded stud terminals
Construction: Industrial epoxy case with metal baseplate for heat for high reliability industrial power applications
Robust construction for high surge current capability
Excellent thermal performance when mounted to proper heatsink
Compact module footprint for high power density systems
Ideal for replacement or new builds in rectifier bridges and DC conversion systems
Common Applications:
Industrial DC power supplies
Battery charging systems (forklift, EV, backup power)
Welding machines
Motor drives and soft starters
Renewable energy systems
High-power rectifier
MDC500-16 Power Diode Module – 500A 1600V – High Current Industrial Rectifier
$75.00
