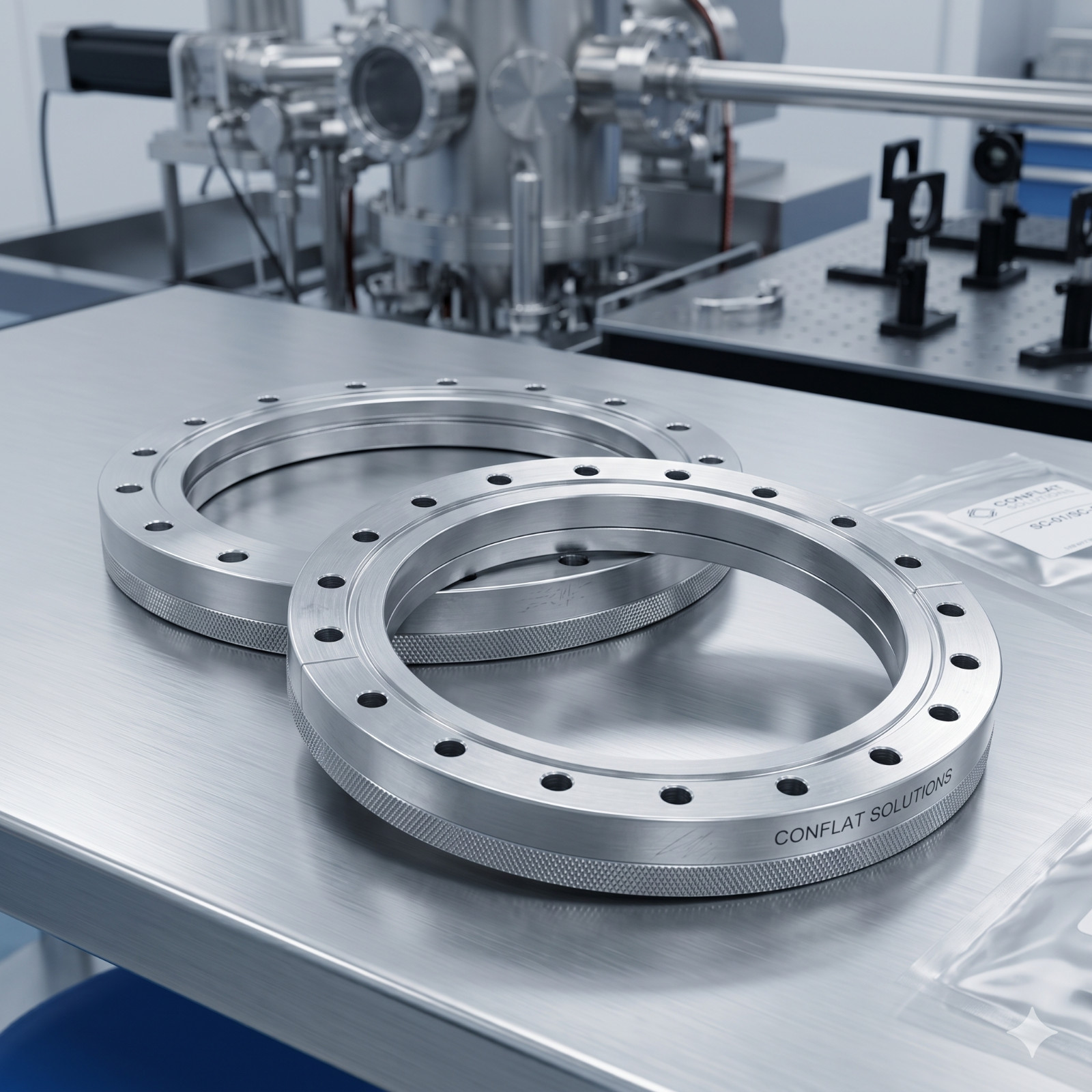

MDC Huntington 8 Inch ConFlat Flange 6.75\" Tube Bore 20 Through Holes For Sale

$MDC Huntington 8 Inch ConFlat Flange 6.75\$
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

MDC Huntington 8 Inch ConFlat Flange 6.75\" Tube Bore 20 Through Holes:
$95.00

CONFLAT SOLUTIONS | TECHNICAL PROFILE | 8CF-BORED-6750-USED-THRU TECHNICAL_LOG: V6.20_8CF_BORED_FLANGE BUILD_SESSION: 2026.05.18.CONFLAT_8CF_BORED_6750_USED MDC / HUNTINGTON STYLE | 8.0\" CF BORED FLANGE | USED HEAVY-NODE UHV STRUCTURAL WELD FLANGE // 20 THROUGH HOLES // 6.75\" INDUSTRIAL BORE // AUDITED USED Forensic Intelligence Report: Structural Core Intelligence 01 20-Hole Through-Hole Fastening Matrix Specifically engineered for standard 8.0\" ConFlat (DN150CF) chamber configurations. Features twenty (20) integrated clearance through-holes designed to accept standard 5/16\" high-tensile fasteners on a standard bolt circle diameter. This configuration allows standard pass-through bolting against matching clearance-hole or tapped vacuum chamber ports, providing maximum versatility across multi-flange structural manifold stacks. 02 Bore Specification: 6.75\" Nominal ID (Weld-Neck Clearance Sleeve) The center bore is precision-machined to exactly 6.75 inches (171.45 mm / 6-3/4\") ID, purposely engineered to serve as a slip-fit weld socket over standard 6-inch Schedule 5S or Schedule 10S industrial stainless steel piping (which carries a true 6.625\" OD). This smooth profile eliminates internal structural pockets or mechanical dead zones, maximizing molecular gas conductance and fundamentally blocking virtual leaks or process gas turbulence. Engineered specifically for heavy-walled industrial processing lines where thin-walled fractional tubing would fail under extreme atmospheric load or high-temperature structural twisting cycles. 03 Forensic Sealing & Through-Hole Audit: Verified USED Excellent Technically audited (Tier 3). The circular 8.0\" ConFlat (DN150CF) sealing ridge is sharp, uniform, and completely free of cross-axis radial gouges, deep scratches, tool driver slips, or drop nicks. Faint, uniform concentric installation witness marks are present from a previous installation cycle but sit safely within standard, predictable operational tolerances. Verified to create an immediate, airtight metal-to-metal copper gasket cold weld. All 20 through-holes have been checked for roundness, lack of burs, and structural warping. FLANGE OD SIZE8.00\" ConFlat (DN150CF) NOMINAL BORE ID6.75 INCH (171.45 MM) FASTENER INTERFACE20 THROUGH HOLES (5/16\" BOLTS) VACUUM LIMIT1 × 10-10 TORR METALLURGY DNA304 STAINLESS STEEL THERMAL LIMIT450°C (BAKEABLE) ASSET MASS~ 8.2 LBS (HEAVY-NODE) CONDITIONAUDITED USED (TIER 3) Hardware Status Matrix Tier 1: Audited NOS Pristine. Uninstalled. Not Applicable Tier 2: Seller Refurbished Vetted Baseline. Not Applicable Tier 3: Audited Used Verified Sealing Baseline. ✓ CURRENT STATUS BLUE DIAMOND INTEGRITY CLAUSE: ACTIVE

BLUE DIAMOND INTEGRITY CLAUSE: This premium pristine 8.0\" ConFlat vacuum hardware node qualifies for Free 30-Day Domestic Returns. In accordance with platform-standard seller protection guidelines, any returned asset must arrive back at our facility in its identical shipped baseline state. Since this item is listed in excellent used condition, the opening of cleanroom protective bags, the introduction of new knife-edge damage signatures (such as driver tool slips, radial scratches, edge flattening, or dropped dents), or chemical/atmospheric grease contamination from exposure to unvetted laboratory lines will result in an immediate, mandatory 50% refund deduction due to the total loss of technical utility and uninstalled industrial resale value.

Acquisition Logic • HEAVY HUB READY
