M4430 Mini Digital Voltmeter Ammeter DC 100V 200V 10A Panel Amp Volt Voltage Cur For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

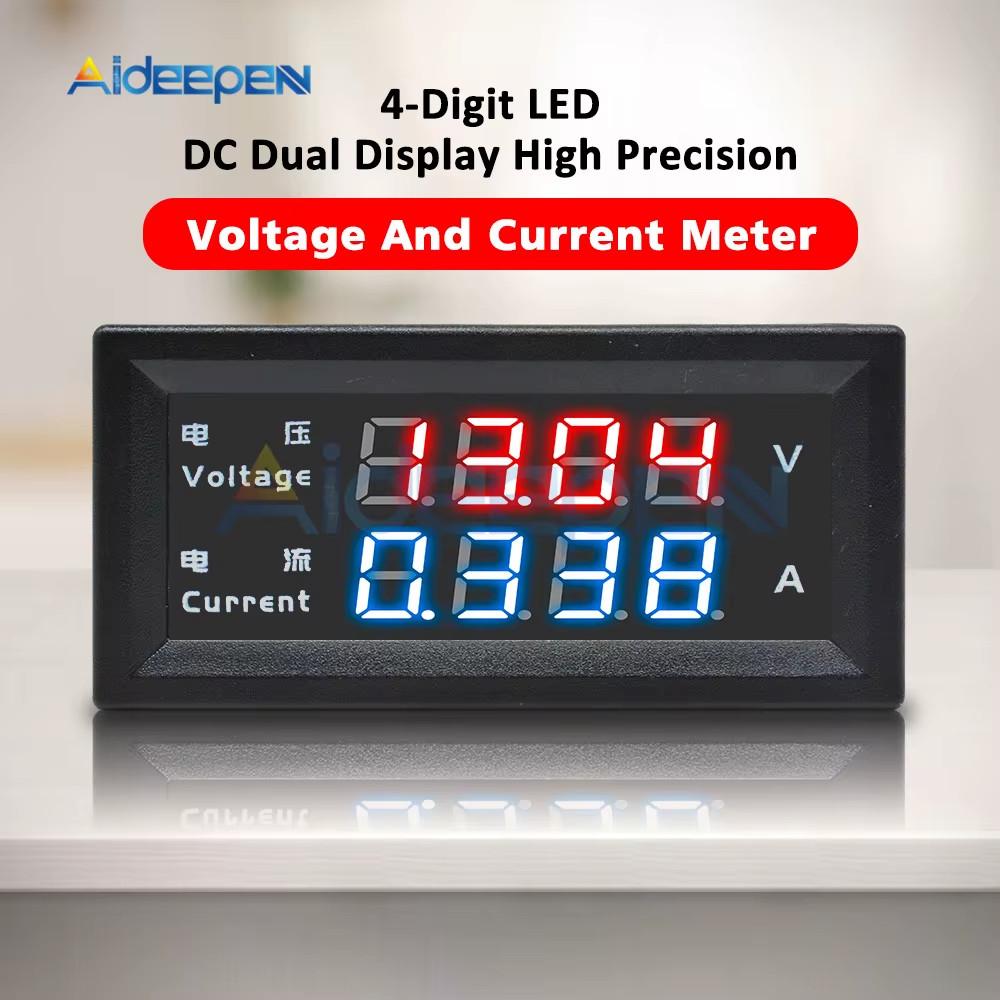

M4430 Mini Digital Voltmeter Ammeter DC 100V 200V 10A Panel Amp Volt Voltage Cur:
$27.99

Feature：Working voltage: DC4~30V (recommended 5~12V)
Measuring current range:
DC10A (display mode 0.000A~10.00A)
Voltage measurement range: DC 100V (display mode 0.000V~10.00V~100.0V)
DC 200V (display mode 0.00V~10.00V~100.0V)
Refresh time: 300ms
Display mode: 0.28 inch 4-digit LED
Product size: 60.00×28.60×22.00mm
Hole size: 57.5×26.0mm
Product weight:

---

---

---

M4430 Mini Digital Voltmeter Ammeter DC 100V 200V 10A Panel Amp Volt Voltage Cur

$27.99

---
