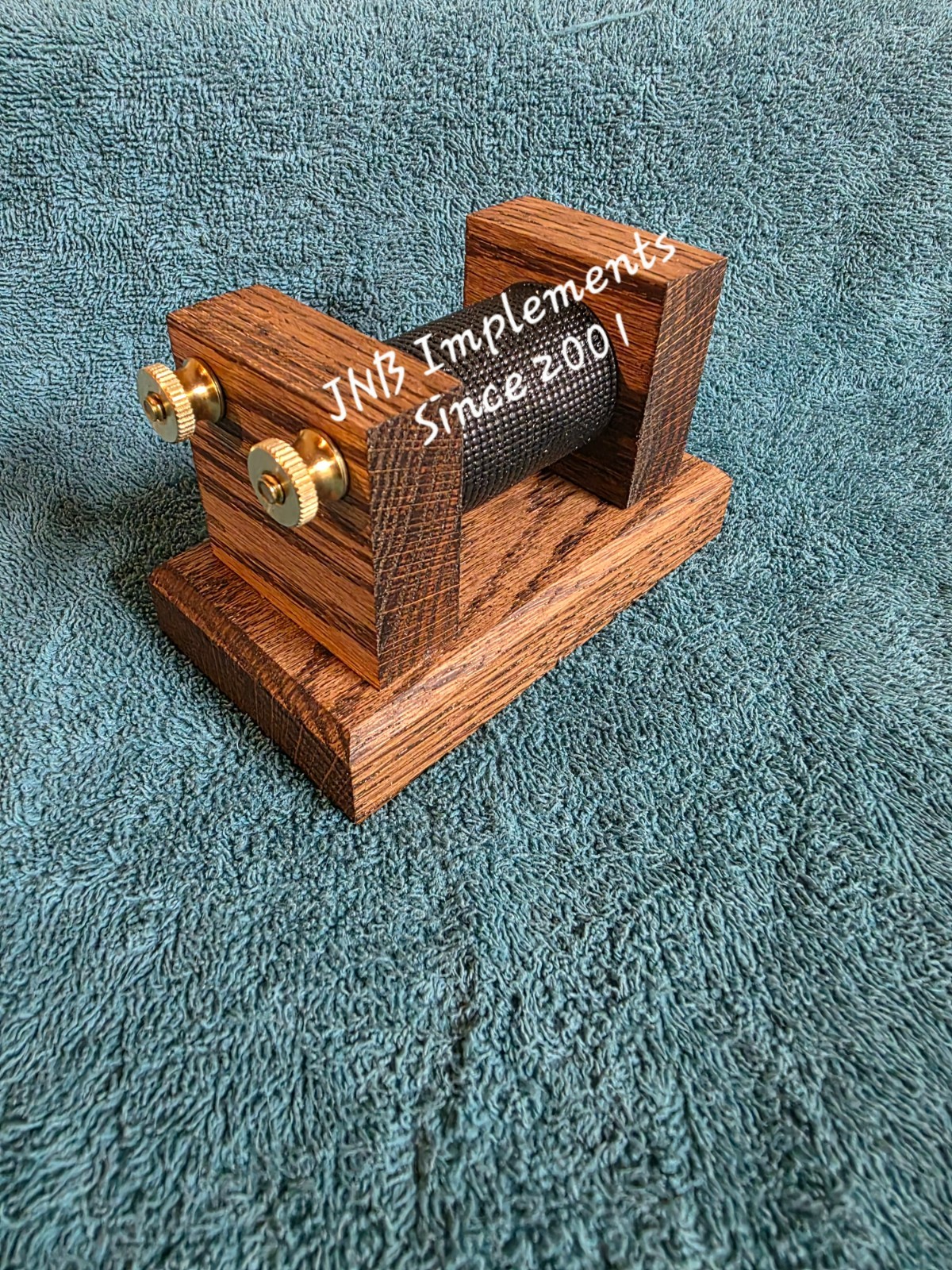

Low Tension Coil, For Use on Hit'n Miss Ignitor Equipped Gas Engine:
$45.80

This is a new Low-Tension coil that can be used on your hit and Miss Gas Engine with a normally open Ignitor. This is not for an engine with a "SPARKPLUG" or a "NORMALLY CLOSED IGNITOR". Check your application before purchasing.

We also want to say with all the copycat listings on there are a couple easy ways to pick out the copycats that are trying to scam a buyer. When looking at an item you may be interested in, scroll down the listing until it says, "About This Seller" and see when the seller joined . Copycats or scammers sign up frequently or annually with a new username then copy another seller's listing and up the price. We suggest buying from a seller or member that has been a member for quite a few years. Also, this coil you are reading about item #303885536682. If a scammer has this listed with an increased price check our item number with their's. If they don't match it's most likely a copycat listing and they may be trying to scam you. We hope this helps to make your shopping and purchase a more pleasant experience!

This coil can also be used by a student for a Science Fair Project to demonstrate how electricity & magnetism work hand in hand and can't work without the other.
As any electrical device, this coil can produce a shock that can result in a reflex that may cause a person mild injury due to his/her reflex movement.
We use Brass and Stainless hardware to hold the coil together. These materials are used because they are non-magnetic, so they won't distort the magnetic field that is built up around the iron core, in turn giving a better uniform field that will collapse only around the windings when your ignitor points open.

It has a 4-1/2" Long by 2-1/2" wide footprint. The shorter the coil is, better than long coils due to the fact the magnetic field is denser when the coil is energized. This will give you a more powerful induced spark.

This coil is wound with constant tension on the 100% copper wire. Wood frame is made of solid Oak, connection terminals are Brass. The brass nuts are used to hold the terminals tight, and the nuts are countersunk to keep them out of sight, giving the coil a better appearance. Plus, our coils have the terminals on the top, making them more easily accessible.
The iron core was sprayed with an insulative material and allowed to dry before the first layer of wire was put on. This keeps the iron core from rusting. If allowed to rust, it will decrease the efficiency of any coil. Each layer of wire after that has a high temperature rated insulative material between them. All of our coils are tested before the outer cover and base are installed. With the wood base, it can easily be mounted onto a skid or a cart with or without a bracket. Be sure to download the App on your phone so you can get the latest tracking information after purchasing this item.

Here is response that one of our customers left for us;
"The seller understated the fit, performance, and finish of this coil. I am more than satisfied with the seller's devotion to satisfy the buyer. I will leave the five-star rating, but I would give them a ten if had one. I recommend this seller. PS This coil has more than enough power to run my 6hp Galloway hit-and-miss engine."
Here is a message another customer sent us;
"NO QUESTIONS! NO COMPLAINTS!! Just had to tell you many thanks on the low tension coil. Made this horse and a half purr again. Made my neighbor extremely happy. Thanks again. Jason
