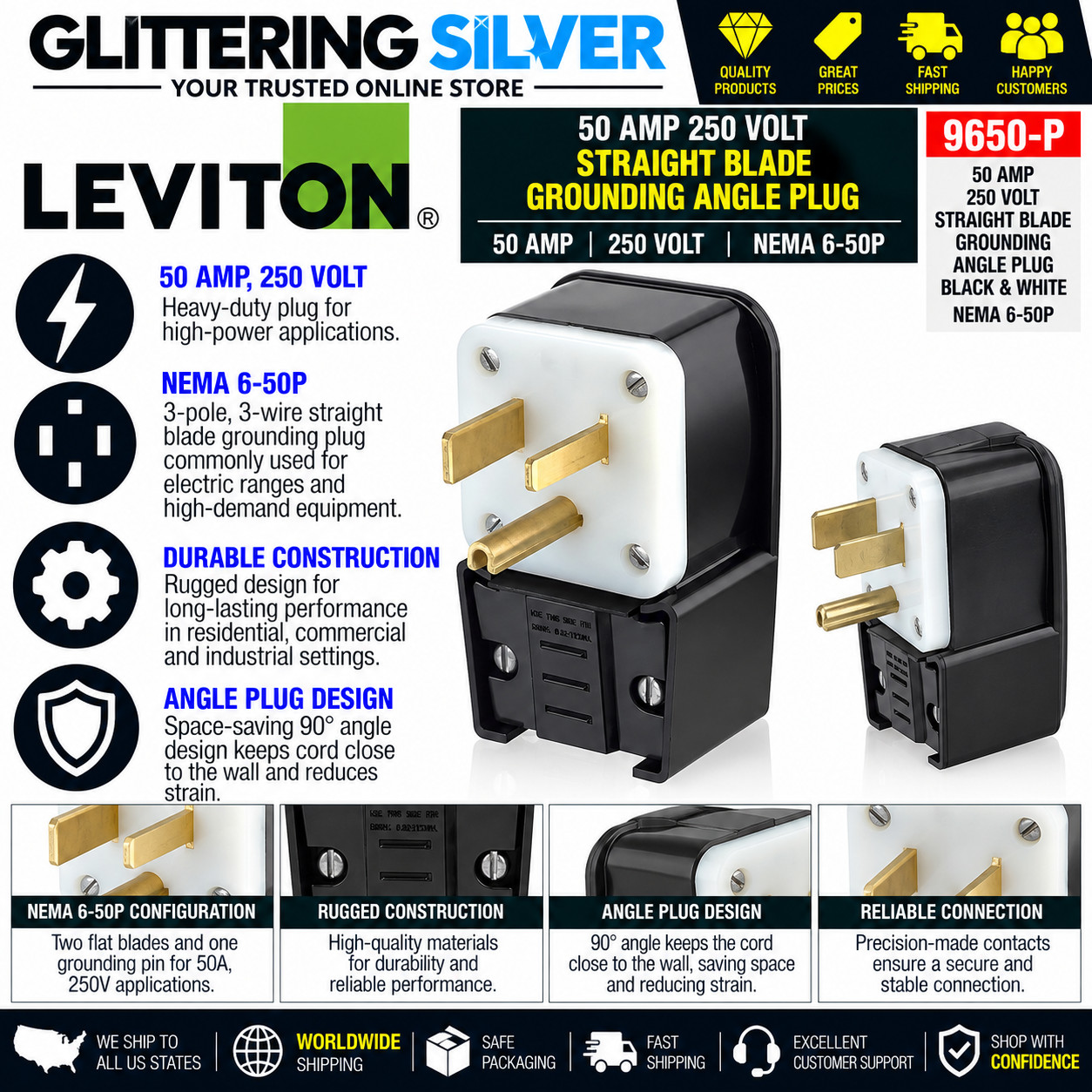

Leviton 9650-P 50A 250V NEMA 6-50P Straight Blade Grounding Angle Plug Black:
$40.37

Leviton 9650-P 50A 250V NEMA 6-50P Industrial Straight Blade Grounding Angle Plug

The Leviton 9650-P Black & White Industrial Grade Angle Plug is a heavy-duty 50 Amp, 250 Volt, NEMA 6-50P straight-blade grounding plug designed for demanding commercial and industrial applications. Its rugged nylon construction, ergonomic fluted body and internal conductor-isolation chambers provide dependable performance for compatible high-current equipment.

The 2-pole, 3-wire grounding configuration is designed to mate with compatible NEMA 6-50R receptacles.

PRODUCT FEATURES

Genuine Leviton Black & White series
Model / MPN: 9650-P
Industrial-grade grounding angle plug
50 Amp rating
250 Volt rating
NEMA 6-50P configuration
2-pole / 3-wire grounding
Male plug designed fluted body
Radial gripping ridge
Designed for easier gripping and unplugging
Catalog and NEMA numbers printed on cord clamp
Internal wiring chambers
Individual conductor isolation
Helps reduce potential flashover and arcing
Designed to limit excessive internal heat buildup
Durable nylon construction
Black & White design
UL Listed per supplied information
Lifetime warranty per supplied information
Package quantity: 1

PRODUCT SPECIFICATIONS

Brand: Leviton
Product Line: Black & White
Model / MPN: 9650-P
Product Type: Straight Blade Grounding Angle Plug
Grade: Industrial Grade
Amperage: 50 Amp
Voltage: 250V
NEMA Configuration: 6-50P
Poles: 2
Wires: 3
Grounding: Yes
Configuration: 2-Pole / 3-Wire Grounding
Device Type: Male Plug
Material: Nylon
Color Family: Black
Certification: UL Listed per supplied information
Warranty: Lifetime per supplied information
Package Quantity: 1

NEMA 6-50P CONFIGURATION

The Leviton 9650-P uses a NEMA 6-50P configuration rated for:

50 Amp
250 Volt
2-Pole / 3-Wire Grounding

It is designed to mate with a compatible NEMA 6-50R receptacle having the appropriate electrical rating.

NEMA configurations are not interchangeable. Verify the receptacle and equipment requirements before ordering.

INDUSTRIAL-GRADE CONSTRUCTION

Leviton\'s Black & White line is designed for demanding commercial and industrial environments.

The rugged nylon body helps provide durability for compatible high-current equipment and replacement-cord applications.

ERGONOMIC FLUTED BODY

The plug incorporates an ergonomically designed fluted body with a radial gripping ridge.

This provides a defined gripping surface when connecting or disconnecting the plug, helping reduce the tendency to pull directly on the electrical cord.

INTERNAL WIRING CHAMBERS

Internal wiring chambers isolate individual conductors within the plug.

This design helps reduce the potential arcing

Excessive heat buildup between conductors

Proper conductor preparation and installation remain essential for safe operation.

EASY CONFIGURATION IDENTIFICATION

The catalog number and NEMA configuration are printed on the cord clamp for convenient identification.

This can help technicians and users confirm the plug configuration during installation, maintenance or equipment servicing.

POTENTIAL APPLICATIONS

NEMA 6-50 configurations are commonly used with compatible higher-power 250V equipment. Potential applications may include appropriately rated:

Welding equipment
Industrial machinery
Workshop equipment
Commercial equipment
High-power tools
Replacement equipment cords

Always verify the equipment manufacturer\'s required plug configuration. A NEMA 6-50P plug should not be selected solely because the equipment operates at 250V.

IMPORTANT: 250V CONFIGURATION

This is a 50A 250V NEMA 6-50P plug.

It is not a standard 120V household plug and should not be confused with visually similar high-amperage configurations.

The NEMA 6-50 configuration provides two current-carrying conductors plus equipment grounding and does not provide a neutral conductor.

PRODUCT DIMENSIONS

Height: 4.37 in.
Width: 2.76 in.
Depth: Not provided in the supplied specifications

PACKAGE INCLUDES

1 × Leviton 9650-P 50A 250V NEMA 6-50P Industrial Grade Straight Blade Grounding Angle Plug

Cable, receptacle, electrical wiring and other installation components are not included unless specifically stated.

IMPORTANT COMPATIBILITY NOTE

Please verify before ordering:

Model: 9650-P
Device: Male Angle Plug
Amperage: 50A
Voltage: 250V
NEMA: 6-50P
Poles / Wires: 2P / 3W Grounding
Material: Nylon
Grade: Industrial

This plug should be used only with equipment, conductors and a receptacle specifically compatible with its electrical and NEMA configuration.

INSTALLATION & SAFETY

This is a high-current electrical device. Installation should follow Leviton\'s instructions, equipment requirements and applicable electrical codes.

Verify conductor size and type, equipment load, grounding and NEMA configuration before use. Power must be disconnected and verified de-energized before installation or servicing.

For 50A/250V equipment wiring, installation should be performed by qualified electrical personnel.
