Leviton 200 Amp 42-Space 42-Circuit Indoor Load Center with Main Circuit Breaker For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

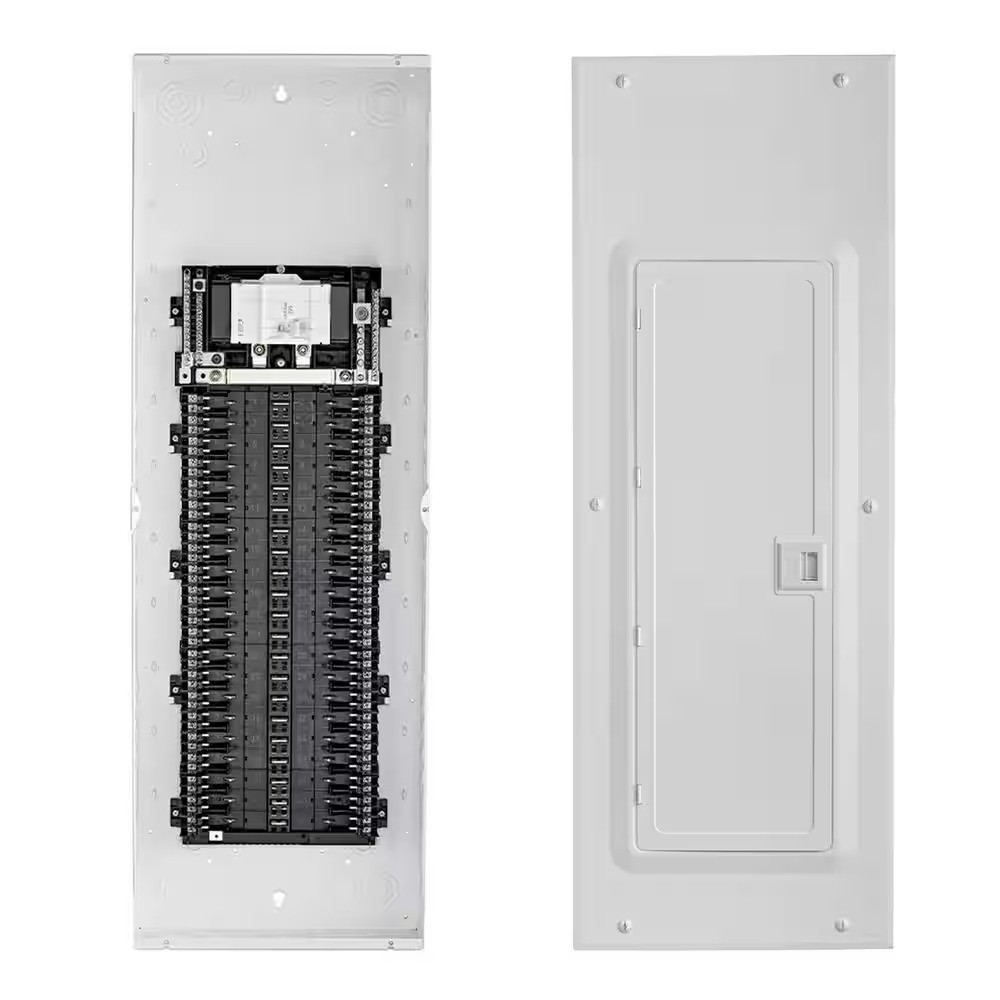

Leviton 200 Amp 42-Space 42-Circuit Indoor Load Center with Main Circuit Breaker:
$239.99

200 Amp 42-Space, 42-Circuit Indoor Load Center with Main Circuit Breaker, Door Included LP420-BDR
About This Product

Leviton's Indoor Load Center with 200 Amp Main Circuit Breaker Factory Installed has 42 Spaces and is NEMA 1 Rated. Convertible main breaker - 225A bus rating. Includes panel and solid door assembly.

Highlights

All hot and neutral wires terminate at custom lugs in the panel, not at the circuit breaker, so the entire panel can be wired at rough-in without circuit breakers installed
Equipped with tin plated copper bussing for superior conductivity
Notches stamped into the enclosure for cable ties promote secure, neat and organized wiring
Galvanized steel with white, powder coated finish for a sleek, modern appearance
Easily invertible for bottom feed applications
Compatible only with Leviton brand circuit breakers
Dimensions
Product Depth (in.)
4 in
Product Height (in.)
55.8 in
Product Width (in.)
14.3 in
Details
Breaker Box Type
Main Breaker Panel
Connection Type
Neutral
Indoor/Outdoor
Indoor
Maximum Amperage (A)
200 A
Mounting Type
Flush, Surface
NEMA Configuration
NEMA 1
Number of Circuits
66
Number of Spaces
66
Phase Type
1 Phase
Product Weight (lb.)
53 lb
