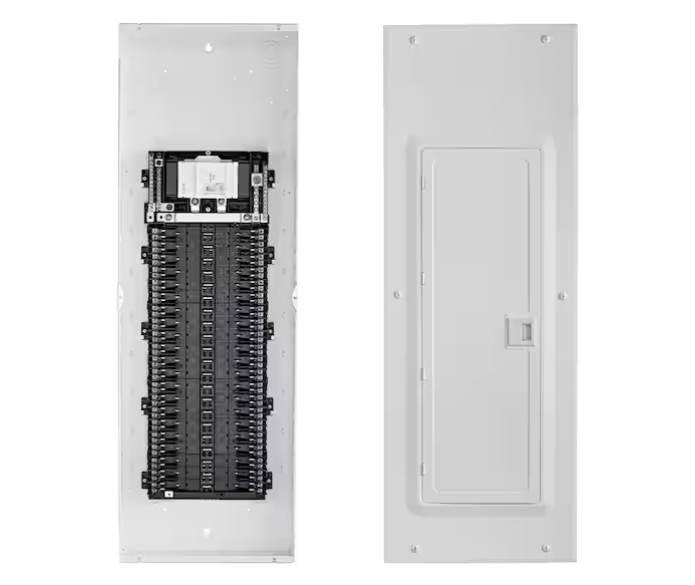

Leviton 200 AMP Main Breaker Load Center LP420-BDR 42 Circuits 42 Spaces - White:
$152.95

New in box Leviton Indoor Main Breaker Load Center Panel with Door.Item will ship either USPS, UPS, or FedEx depending on rates / speed of shipping.Local Pick-up times are for Fridays, Saturdays and Sundays. Please ask about a pickup time before purchasing.About This ProductModel # RD0-LP420-BDR

Leviton's Indoor Load Center with 200 Amp Main Circuit Breaker Factory Installed has 42 Spaces and is NEMA 1 Rated. Convertible main breaker - 225A bus rating. Includes panel and solid door assembly.

Highlights

• All hot and neutral wires terminate at custom lugs in the panel, not at the circuit breaker, so the entire panel can be wired at rough-in without circuit breakers installed
• Equipped with tin plated copper bussing for superior conductivity
• Notches stamped into the enclosure for cable ties promote secure, neat and organized wiring
• Galvanized steel with white, powder coated finish for a sleek, modern appearance
• Easily invertible for bottom feed applications
• Compatible only with Leviton brand circuit breakers
• Includes enclosure and solid cover and door assembly

Dimensions

Product Depth (in.)

4 in

Product Height (in.)

43 in

Product Width (in.)

14.25 in

Details

Breaker Box Type

Main Breaker Panel

Connection Type

Neutral

Indoor/Outdoor

Indoor

Maximum Amperage (A)

200 A

Mounting Type

Flush, Surface

NEMA Configuration

NEMA 1

Number of Circuits

42

Number of Spaces

42

Phase Type

1 Phase

Product Weight (lb.)

32.8 lb

Returnable

90-Day

Series Type

Not Specified

Voltage (V)

120/240 V

Warranty / Certifications

Certifications and Listings

UL Listed

---

---

---
