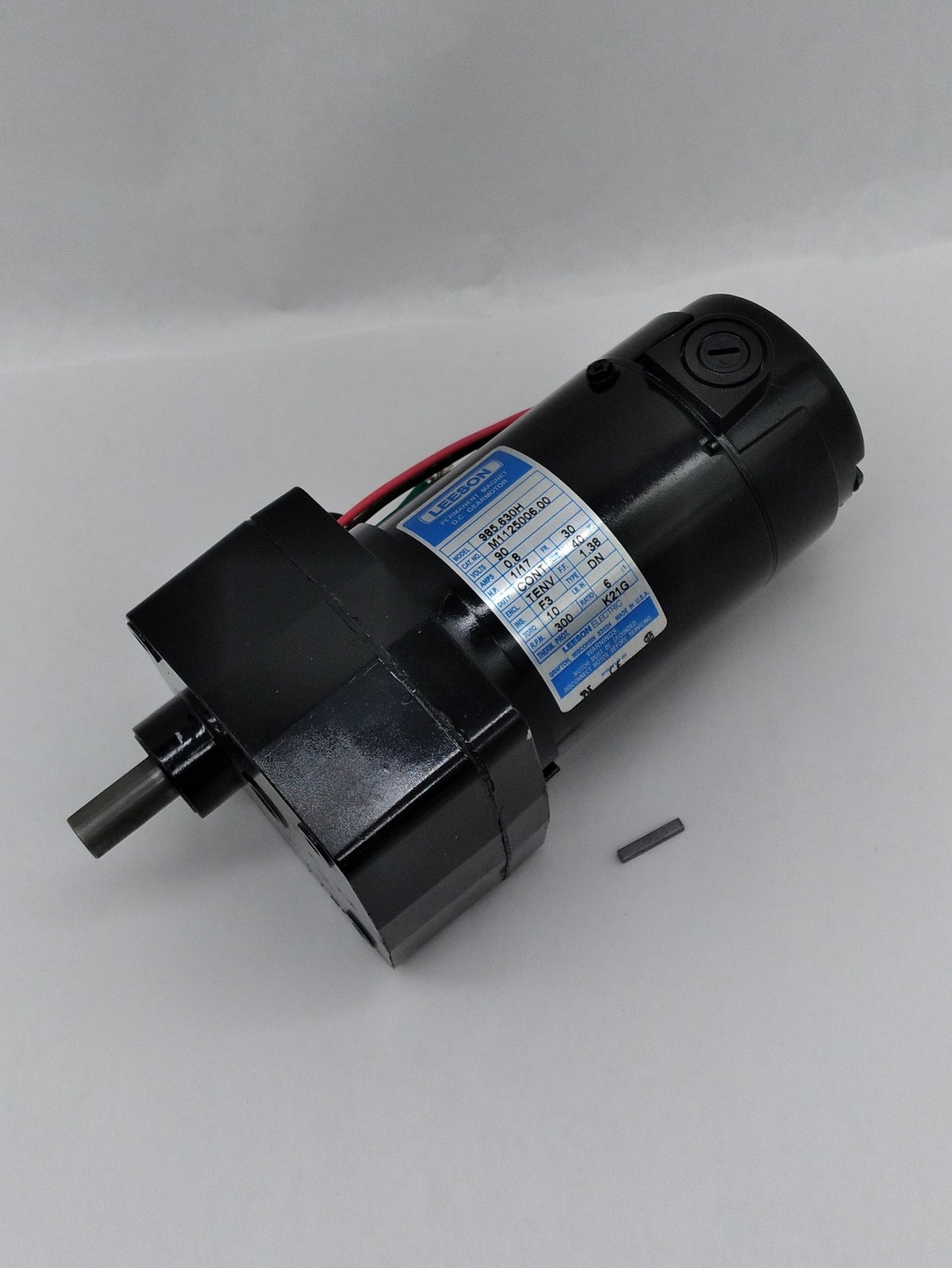

Leeson 985.630H DC Parallel Shaft Gearmotor, 1/17HP Ratio 6:1:
$262.00

Leeson 985.630H DC Parallel Shaft Gearmotor, 1/17HP Ratio 6:1

Condition: New – Open box
Dimensions: 6.00 x 10.00 x 6.00 inches (L x W x H)
Weight: 6.00 Lbs.

Leeson 985.630H is a permanent‑magnet DC parallel‑shaft gearmotor designed for continuous‑duty industrial applications requiring dependable low‑speed torque. It features a 6:1 gear reduction, hardened steel gears, a totally enclosed non‑ventilated housing, and 300 RPM output at 90VDC. Product Specifications:Manufacturer: Leeson Electric (Regal Rexnord)Model Number: 985.630H Catalog Number: M1125006.00 Motor Type: Permanent Magnet DC, Parallel Shaft Gearmotor (PZ Series) Horsepower: 1/17 HP (approx. 0.06 HP / 0.04 kW) Voltage: 90 VDC Full Load Current: 0.8 A Output Speed: 300 RPM Gear Ratio: 6:1 reduction Output Torque: 10 in‑lb Enclosure: TENV — Totally Enclosed Non‑Ventilated Duty Rating: Continuous (CONT) Insulation Class: F Frame Size: 30 Rotation: Reversible Shaft Diameter: 1/2" (0.500 in) keyed shaft Shaft Length: 1.0–1.38 in (varies by listing; nameplate shows 1.38") Bearings: Ball bearings (6000 series) front and rear Housing Material: Steel gear housing (PZ Series) Overhung Load Capacity: 180 lb Overall Length: 8.46 in Motor Body Length: 2.99 in (less shaft) Efficiency: 57.6% (rated) Ambient Temperature Rating: 40°C max Certifications: UL Recognized, CSA, CE Country of Manufacture: USA Please review pictures carefully and let us know if you have any questions! Powered by KiipList.com
