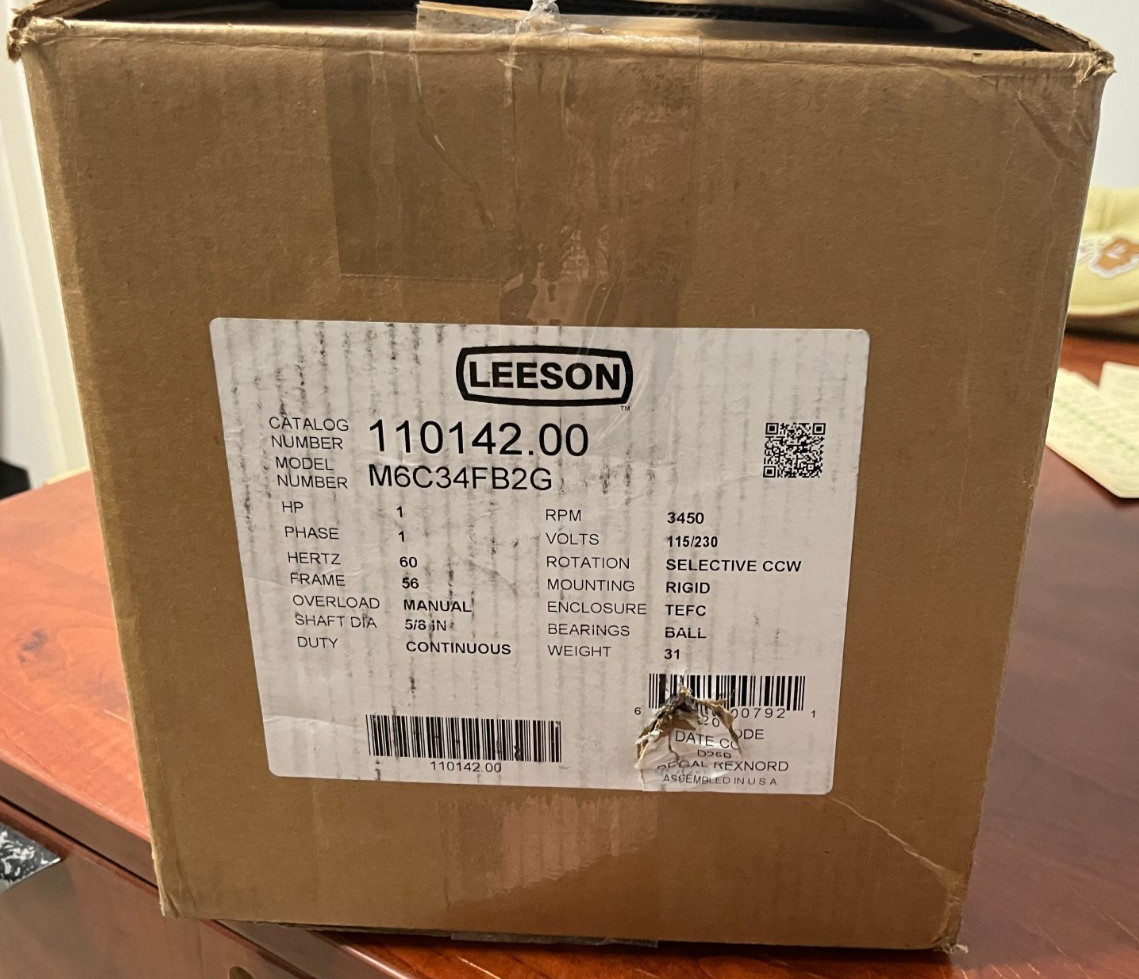

Leeson 110142.00 1 HP General Purpose Motor, 1 phase, 3600 RPM, 115/208-230 V, 5 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Leeson 110142.00 1 HP General Purpose Motor, 1 phase, 3600 RPM, 115/208-230 V, 5:
$249.99

(WARRANTYNOT VALID AS WE ARE A THIRD PARTY SELLER!!!!)
Regal Beloit Leeson&Reg; 110142.00

LEESON® AC Motor, 2-Pole Continuous Duty, Application Type: Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, Pressure Washer Motors, Woodworking/Power Tool Motors, Special Features: Capacitor Start Motors, 1 hp, 115/208 to 230 VAC, 12/6.2 to 6 A, 60 Hz, 1 ph, 3450 rpm, 1 Speed, Totally Enclosed Fan Cooled (TEFC), 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Selective CCW, Service Factor: 1.15, Ball Bearing, 24 ft-lb, Rigid Base/Resilient Base Mount, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 11.98 in L

Features:

Double shielded ball bearings
Dynamically balanced rotors
NEMA design B performance
Meets or exceeds NEMA service factors
Fully gasketed

Specs:

Type:2-Pole Continuous Duty
Material:Rolled Steel
Dimensions:11.98 in L
Voltage Rating:115/208 to 230 VAC
Amperage Rating:12/6.2 to 6 A
Mounting Type:Rigid Base/Resilient Base
Frequency Rating:60 Hz
Speed:3450 rpm
Enclosure Type:Totally Enclosed Fan Cooled (TEFC)
Temperature Rating:40 deg C
Bearing Type:Ball
Frame:56
Rotation:Selective CCW
Number of Speeds:1
Horsepower:1 hp
Phase:1 ph
Torque Rating:24 ft-lb
Shaft Size:0.63 in Dia x 1.88 in L
Insulation Class:Class B
Application Type:Compressor Motors, Fan and Blower Motors, General Purpose AC Motors, Pressure Washer Motors, Woodworking/Power Tool Motors
Special Features:Capacitor Start Motors
Service Factor:1.15
Variable Torque Speed Range:10:1
