Ledex H-2346-032 Rotary Solenoid 25 Degree CCW Spring Return 13.9-63V w/ Data For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Ledex H-2346-032 Rotary Solenoid 25 Degree CCW Spring Return 13.9-63V w/ Data:
$50.00

Ledex H-2346-032 Rotary Solenoid 25 Degree CCW Spring Return 13.9-63V w/ Data

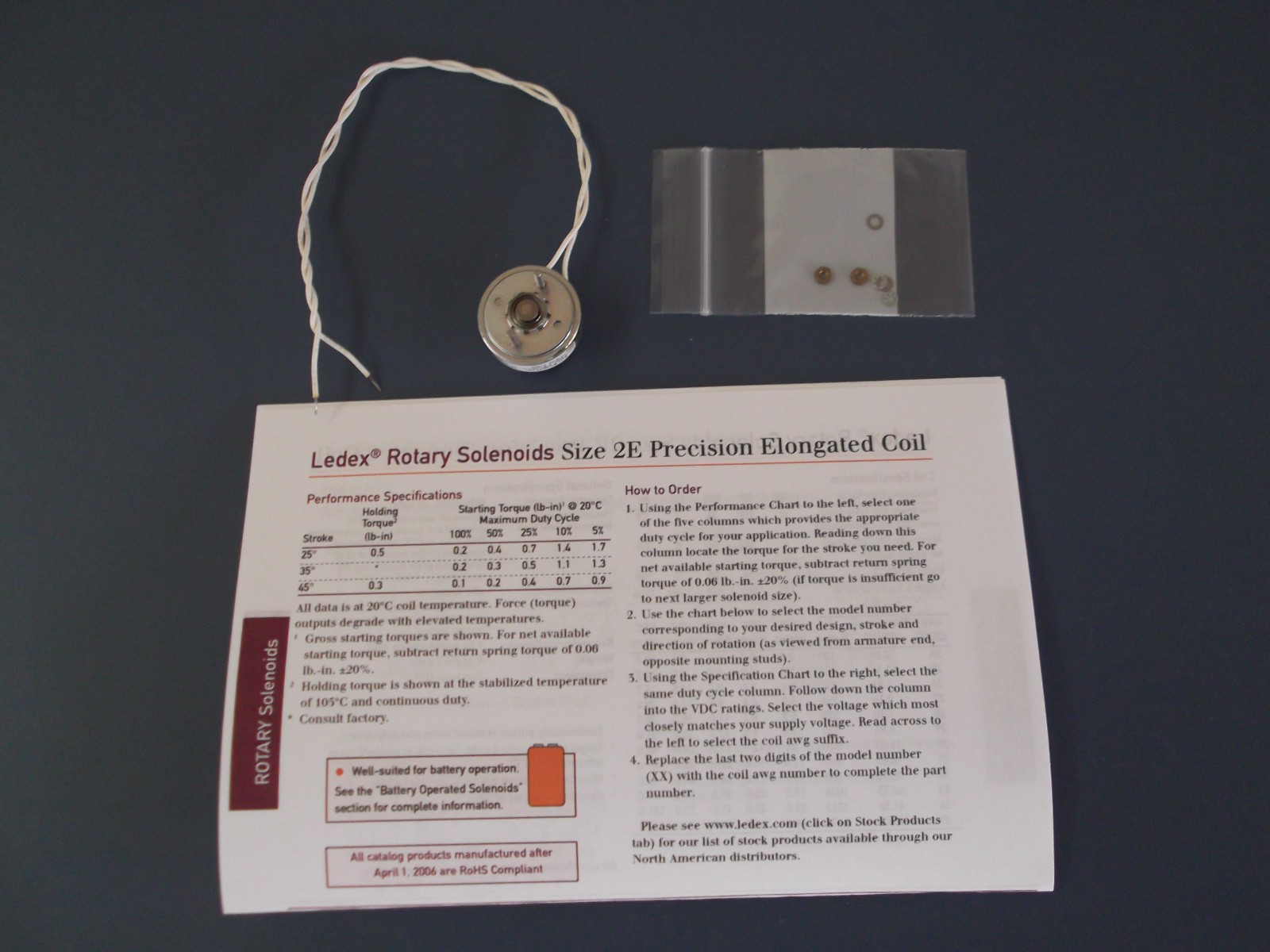

Diameter is 1.125 inch and thickness is 0.656 inch.
Ledex was a subsidiary of Johnson Electric, and now Saia-Burgess Inc.
Data sheet says 13.9 V at 100% duty cycle and 63 V at 10% duty cycle. Tested using a lab DC power supply and the acting and release voltages are found to be 8.5V and 3.3V, respectively.
Screw nuts and washers for mounting are included. Datasheet included.
New old stock. Original box missing.

---

---

---
