Aluminum Large Flange Pop Rivets, Dome Head Open-End Blind, 1/8"-3/16" Bulk:
$199.99

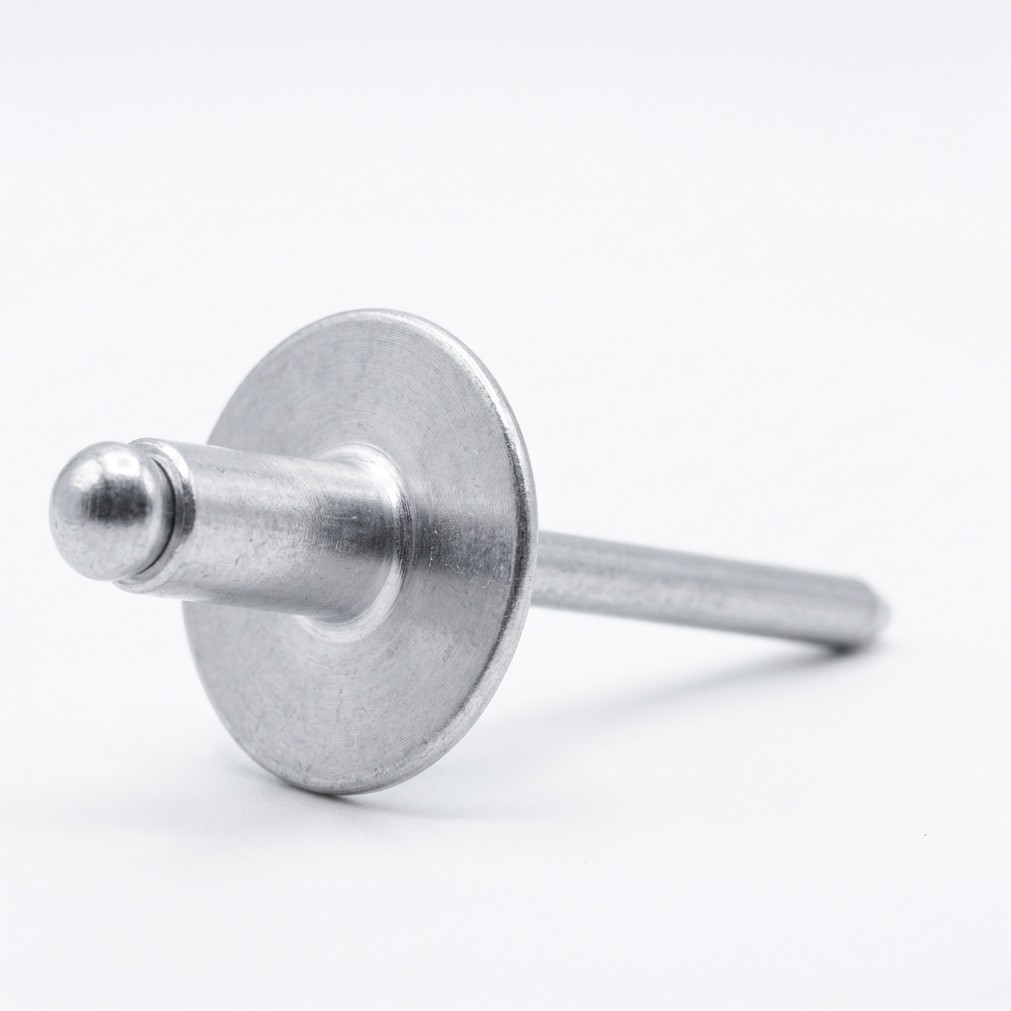

Aluminum Large Flange Open-End Blind Pop Rivets

Oversized Dome Head • Multi-Diameter • Multi-Length • Bulk Quantities

Description

Fastenio aluminum large flange open-end blind rivets feature an oversized dome head — roughly 1.6× to 2× the diameter of a standard dome head for the same body size. The wider head distributes installation load across a larger area, making these the right choice for thin sheet, soft substrates, oversized holes, and slotted/elongated holes where a standard rivet head would pull through.

Both the rivet body and mandrel are aluminum, so the joint stays light, corrosion-resistant, and free of galvanic mismatch. Stocked in three body diameters — 1/8", 5/32", and 3/16" — with a full range of lengths and pack sizes from 5 (sample) up to 2,500 (bulk).

When to Use Large Flange

Thin sheet metal — the wider flange resists pull-through on sheet thinner than the rivet's body diameter.
Soft substrates — plastic, fiberglass, soft aluminum, thin wood — where a standard head would crush or sink in.
Oversized or slotted holes — the larger flange covers the gap when the hole is bigger than spec or shaped for adjustment.
Signs, panels, and trim — the larger visible head can be either a feature (decorative) or hidden under washers/trim.

Riveting Action

An open-end blind rivet installs from one side of the workpiece. Insert the rivet through pre-drilled aligned holes, then pull the mandrel with a hand or pneumatic rivet tool. As the mandrel pulls, the rivet body deforms on the blind side to form a clinched head; the mandrel snaps off at the breakneck once full installation force is reached. The large flange seats flush on the visible side and spreads the clamp load across a wider footprint than a standard dome head.

Material

Body: 5052 Aluminum — Al-Mg alloy with excellent corrosion resistance, especially in marine and outdoor environments. Strong, ductile, and weldable.

Mandrel: Aluminum — matches the body alloy. No mixed-metal galvanic concern at the fastened joint.

Finish: Plain (uncoated). Surface develops a natural protective oxide layer over time.

How to Order

Select your variation by Body Diameter × Length and Pack Quantity:

Body Diameter — match the diameter of your pre-drilled hole (typically +0.003" to +0.005" over rivet body for clean clearance).
Length — choose a rivet long enough to clinch through the total material thickness plus a small allowance for the formed back head.
Pack Quantity — 5 and 10 are sample/repair packs. 25–100 cover small projects. 250–2,500 are production-volume bulk.

Built for repeat buyers. Clean listings, accurate item specifics, fast US shipping, and responsive support before and after the sale.

Need it faster? UPS 2nd Day Air and Next Day Air are available by request — message us with your ZIP code before purchase for a quote.

Need a larger quantity? Volume pricing is available beyond the listed pack sizes — message us with your target qty and we'll quote.

Available Sizes Body DiameterAvailable Lengths 1/8" (3.2 mm)3/16", 1/4", 3/8" 5/32" (4.0 mm)1/4", 3/8", 1/2" 3/16" (4.8 mm)1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1"

Applications

Sheet Metal Fabrication — thin gauge, especially where pull-through is a risk.
Marine — boat hulls, fittings, outdoor hardware (5052 has excellent salt-water resistance).
HVAC — ductwork, lightweight housings, condensation-exposed joints.
Sign Mounting — outdoor signs, traffic signage, channel letters — the wide head doubles as a finished look.
Automotive — trim, lightweight panels, dash brackets, interior repair.
Plastic & Composite Panels — the larger footprint resists material crushing.

Notes

Hole size: drill +0.003" to +0.005" over the rivet body diameter for proper clearance.
Substrate thickness: the large flange is most useful when the back-side material is thin, soft, or has an oversized hole; on rigid thick substrates the standard dome head is usually fine and lower-profile.
Galvanic compatibility: aluminum body + aluminum mandrel is ideal for aluminum or non-conductive substrates. For stainless steel substrates in wet environments, consider stainless rivets.
Tools: any standard hand or pneumatic blind rivet tool will install these — no specialty mandrel grip required.
