LEESON 116642.00 Washguard Motor 1/3HP 1725RPM 56C 3PH 208-230/460V NEW:
$499.99

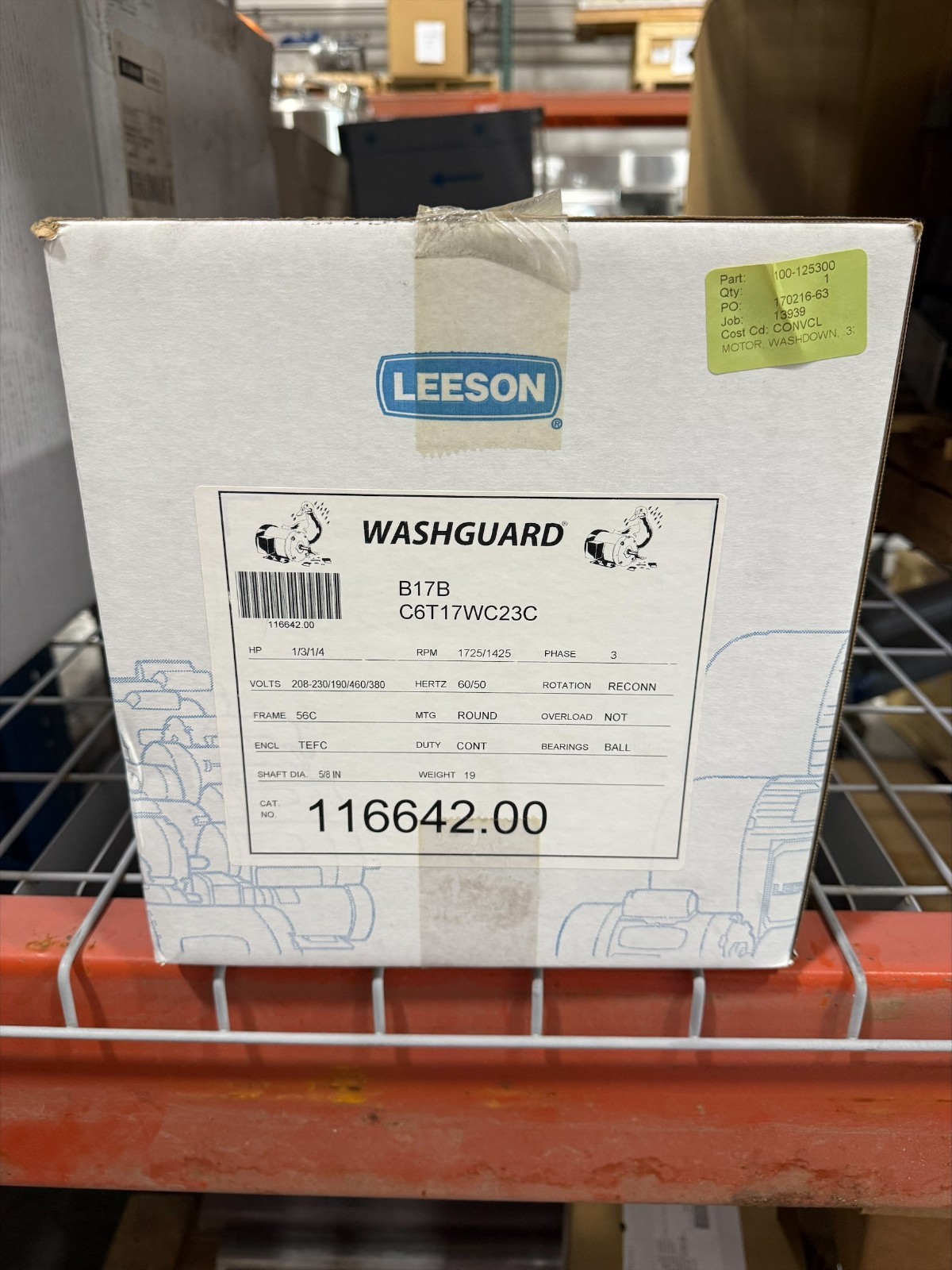

LEESON 116642.00 Washguard Three-Phase Washdown Motor

New-in-box LEESON 116642.00 Washguard electric motor, model C6T17WC23C.

This is a 1/3 HP, 1725 RPM, three-phase, NEMA 56C washdown-duty motor designed for industrial environments where resistance to moisture, humidity, cleaning procedures, and corrosive conditions is important.

The motor features a TEFC enclosure, IP55 protection, white epoxy-coated construction, C-face mounting, sealed ball bearings, and a corrosion-resistant shaft/sealing system. LEESON Washguard motors are commonly used in food and beverage processing, packaging, pharmaceutical, chemical-processing, and other industrial washdown applications.

Motor Specifications

LEESON Part Number: 116642.00
Model: C6T17WC23C
Output: 1/3 HP / 0.25 kW
Rated Speed: 1725 RPM
Phase: Three Phase
Voltage: 208-230/460V
Frequency: 60 Hz
NEMA Frame: 56C
Enclosure: TEFC
Protection Rating: IP55
Mounting: C-Face, footless
Service Factor: 1.15
NEMA Design: B
Insulation Class: F
Duty: Continuous
Rotation: Reversible
Shaft Diameter: 5/8 in
Shaft Type: Keyed
Starting Method: Across the Line
Electrical Design: Squirrel Cage Induction
Thermal Protection: None
UPC: 691720343463
Approximate Motor Weight: 19 lb

Washdown Construction

LEESON's Washguard motor design is intended for severe industrial environments where motors may be subjected to frequent sanitation, moisture, humidity, and cleaning chemicals.

Construction features include:
