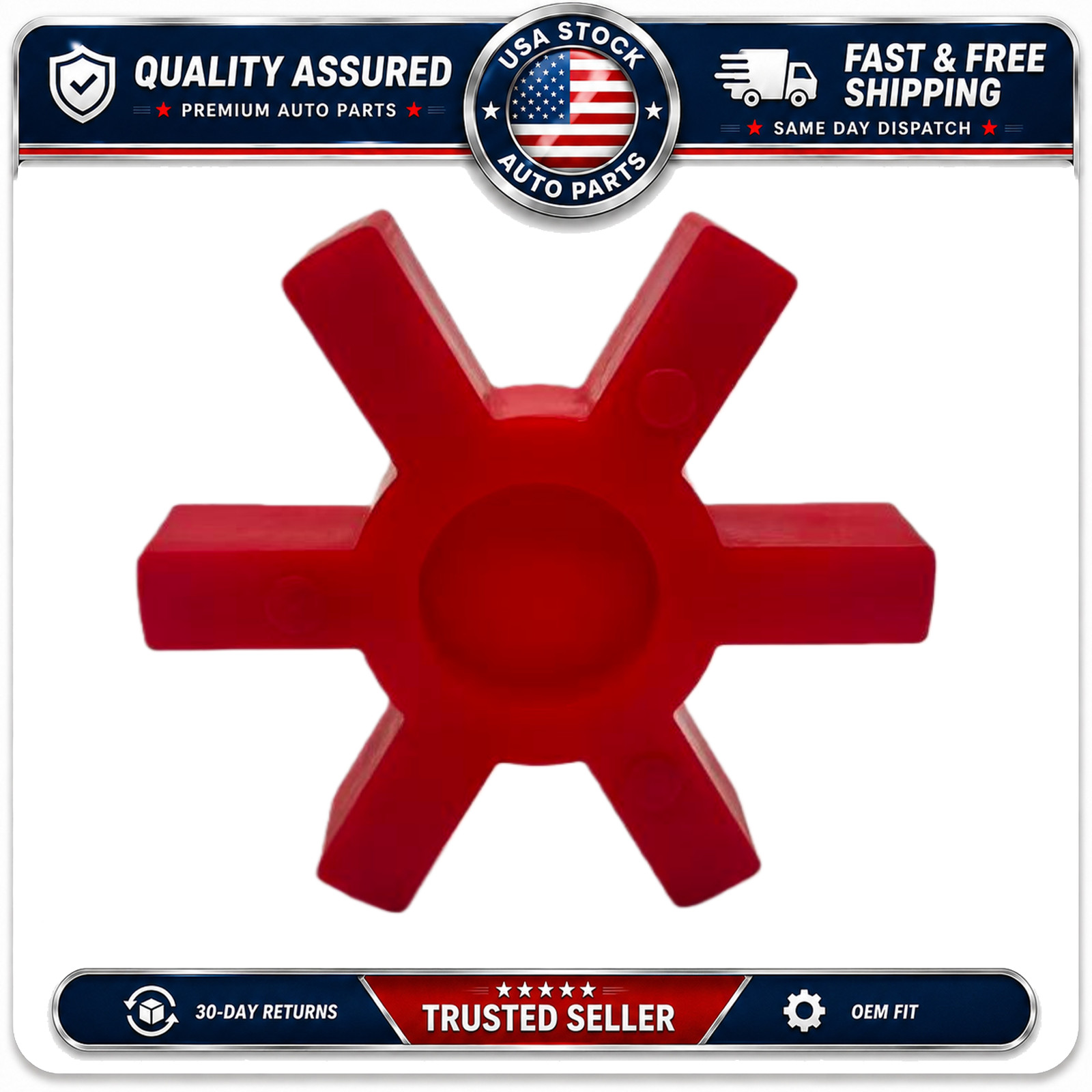

L190 Flexible Coupling Spider Insert L190-N for Lovejoy Martin NBR For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

L190 Flexible Coupling Spider Insert L190-N for Lovejoy Martin NBR:
$11.75

L190-N Jaw Coupling InsertFeatures:Ideal for use with variable-speed and variable-torque applications.Buna N spiders are made of oil-resistant, highly resilient long-life material.Temperature range of -40° to 212°F (-40° to 100°C)0.015\" maximum parallel misalignment.1° maximum angular misalignment. No lubrication or maintenance is required.Note: A complete assembly requires two hubs, available separately, and one jaw coupling spider.Interchangeable With:Boston Gear®      Browning®Dayton®               Dodge®  Dunlop®               Gates®LoveJoy®                Martin®Maurey®               MasterDrive®Morse® WE SELL ONLY BRAND-NEW FACTORY INVENTORY!PREMIUM QUALITY PRODUCTSWE SHIP THE SAME BUSINESS DAY!L190-N Jaw Coupling Insert
Features:

• Ideal for use with variable-speed and variable-torque applications.

• Buna N spiders are made of oil-resistant, highly resilient long-life material.

• Temperature range of -40° to 212°F (-40° to 100°C)

• 0.015\" maximum parallel misalignment.

• 1° maximum angular misalignment. No lubrication or maintenance is required.

Note: A complete assembly requires two hubs, available separately, and one jaw coupling spider.

Interchangeable With:

Boston Gear® Browning®

Dayton® Dodge®

Dunlop® Gates®

LoveJoy® Martin®

Maurey® MasterDrive®

Morse®

Technical Specs:

• Item:Jaw Coupling Insert (Spider)

• Size:L190

• Material:Buna N

• Rated Torque:1,726 in.-lb.

• Max. RPM:5,000 RPM

• HP Rating @ 100 RPM2.70

• Temp. Range:-40°to 212°F

• Max. Bore (In.):2.125\"

• HP Rating @ 1200 RPM:32

• HP Rating @ 1800 RPM:49

• HP Rating @ 3600 RPM:98

• Color:Black

• Length (In.):4.47\"

• Width (In.):4.47\"

• Height (In.):.88\"

• Accommodates1°Angular and 0.015\" of Parallel Misalignment

---

---

---

L190 Flexible Coupling Spider Insert L190-N for Lovejoy Martin NBR

$11.75

---

LOVEJOY INC. L-190 Flexible Coupling Hub 1-5/8" Bore Industrial NOS

$43.90

---

L190 Spider Insert Rubber Element Black for Lovejoy L-Jaw Flexible Coupling

$24.34

---
