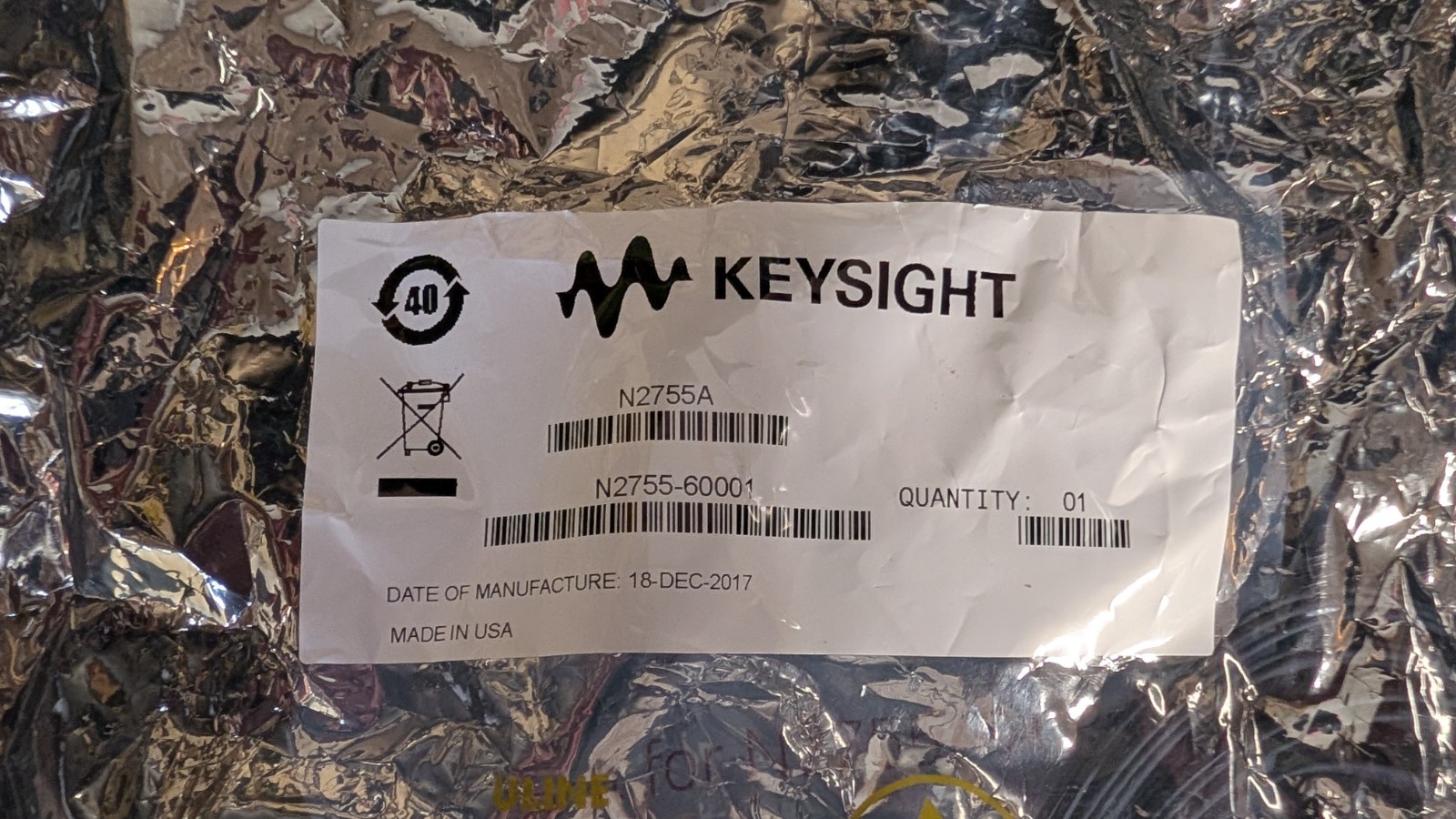

Keysight Agilent HP N2755A 8-Channel MSO Cable NEW Sealed Bag For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Keysight Agilent HP N2755A 8-Channel MSO Cable NEW Sealed Bag:
$475.00

NEW In Sealed Bag Keysight Agilent HP N2755A 8-Channel MSO digital probe cable kit designed for select InfiniiVision Series oscilloscopes
- Ships in anti-static bagFree Shipping
N2755A is a low-cost 8-channel MSO cable kit allows you to easily probe far-apart pins. It includes flying lead cable, 3 right-angle grounds, 3 ground extenders.HIGHLIGHTS

Divided into 2 sets of 4 channels so you can conveniently probe pins that are far apart
Flying leads offer flexibility and convenience
Great signal fidelity with low probe loading (100 kΩ)
Direct connection to a 0.1" header connector

The N2755A is a low-cost 8-channel MSO cable kit for InfiniiVision Series oscilloscopes. The kit includes 1 flying lead cable, 3 right-angle grounds, 3 ground extenders, and 9 grabbers.

The N2755A is a replacement probe. To enable MSO capability on an InfiniiVision 2000 X-Series oscilloscope, order the DSOX2MSO. The MSO upgrade includes the N2755A MSO cable and a license to enable the MSO functionality.

This unitThe Keysight N2755A is an 8-channel digital probe cable kit that adds Mixed Signal Oscilloscope(MSO) capability to select InfiniiVision Series oscilloscopes. This accessory enables simultaneouscapture and analysis of digital and analog signals, making it essential for debugging complexdigital circuits and integrated systems where timing relationships and signal integrity demandprecise measurement. The kit connects directly to 0.1" header connectors on devices under test,delivering low-impedance acquisition through high input impedance probes that minimize loadingeffects on target circuitry. Technical Specifications Digital Channels: 8 channels Input Impedance:100 kΩ per channel Input Capacitance: 12 pF per channel Probe Loading: Low impedanceconnection minimizes circuit loading during measurement Interface: Direct connection to 0.1"header connectors on target devices Key Features Two independently configured channel sets (4channels each) accommodate measurement of pins spaced across different areas of the deviceunder test Flying lead cable with integrated grabbers provides flexible point-contact probing Kitincludes three ground extenders and three right-angle grounds for optimized ground referenceconnections and reduced measurement uncertainty Nine grabbers enable rapid, repeatableconnections without soldering or permanent circuit modification Low input capacitance (12 pF)preserves signal fidelity in high-speed digital applications Typical Applications Digital circuitdebugging and timing verification Embedded system signal integrity analysis Multi-channel logicstate capture synchronized with analog measurements Device under test characterization duringdevelopment and qualification Compatibility & Integration The N2755A integrates with InfiniiVision2000 X-Series, 3000 X-Series, 4000 X-Series, and 6000 X-Series oscilloscopes. EarlierInfiniiVision 5000, 6000, and 7000 Series models require specific software versions forcompatibility. InfiniiVision 2000 X-Series users must order the DSOX2MSO option, which bundlesthe N2755A cable kit with the required MSO software license.
