JDSU VIAVI ONX-620 Or ONX-630 OneExpert CATV Module ONX-CATV-D31-42-85-1G:
$150.00

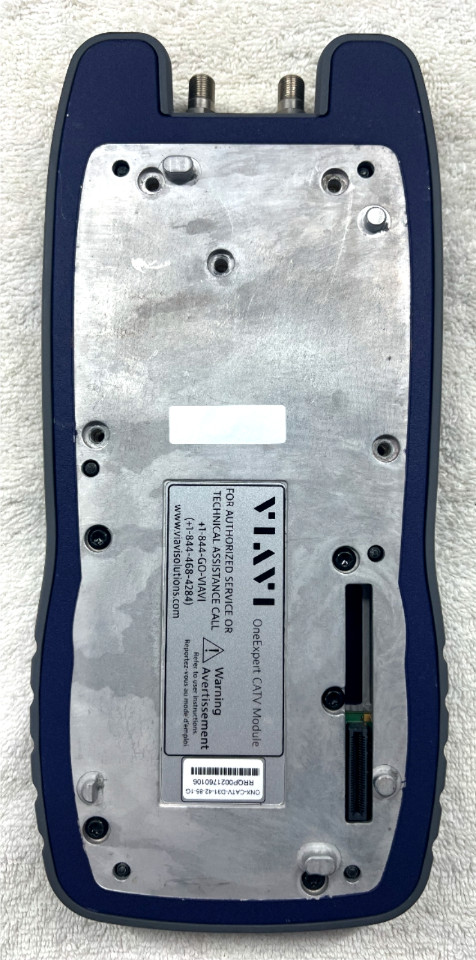

VIAVI OneExpert CATV Module ONX-CATV-D31-42-85-1G

VIAVI / JDSU field-exchangeable DOCSIS / RF module for the OneExpert CATV family (ONX-610 / ONX-620 / ONX-630). Part number ONX-CATV-D31-42-85-1G.

What the number means:

D31 — DOCSIS 3.1 capable RF / cable-modem hardware
42-85 — dual diplexer, 42 MHz and 85 MHz
1G — 1 GHz downstream class (not the 1012 / 1.2 GHz sled)

This is the calibrated measurement module that mounts on the OneExpert handset. The RF section can be swapped or sent for calibration without shipping the whole meter.

Typical module functions (with a compatible ONX chassis and the right licenses):

Downstream QAM / OFDM and DOCSIS 3.0 / 3.1
Dual diplexer 42/85
OneCheck-style RF tests at tap, ground block, and CPE
Ingress and level work in that diplexer range

Software options (TSX, IPX, sweep, VoIP, TDR, Speedtest, and so on) live on the handset, not on this module. Do not assume those licenses ship with the sled.

Not included
ONX-610 / 620 / 630 handset, battery, charger, case, or software licenses.

Fits OneExpert CATV mainframes that take this CATV module. Not an ONX-220, ONX-580, or ONX-700 fiber platform part. Different from ONX-CATV-D31-4285-1012B (1.2 GHz class). Sold used as a module. Buyer confirms chassis fit and 42/85 diplexer. No returns for a missing meter or missing software options.
